Ami 8 Service Vitrée 1973

© Copyright: J.Cats.

This car was advertised on www.marktplaats.nl a dutch market site, Sunday November 18th 2001. I myself didn't notice the advertisment but when it appeared, some of my friends pointed it out to me. On Monday contacted the vendor to visit it, on Thursday I phoned and bought the car without even seeing it. It was picked up on Saturday November 24th 2001.

Click for full screen Click for full screen

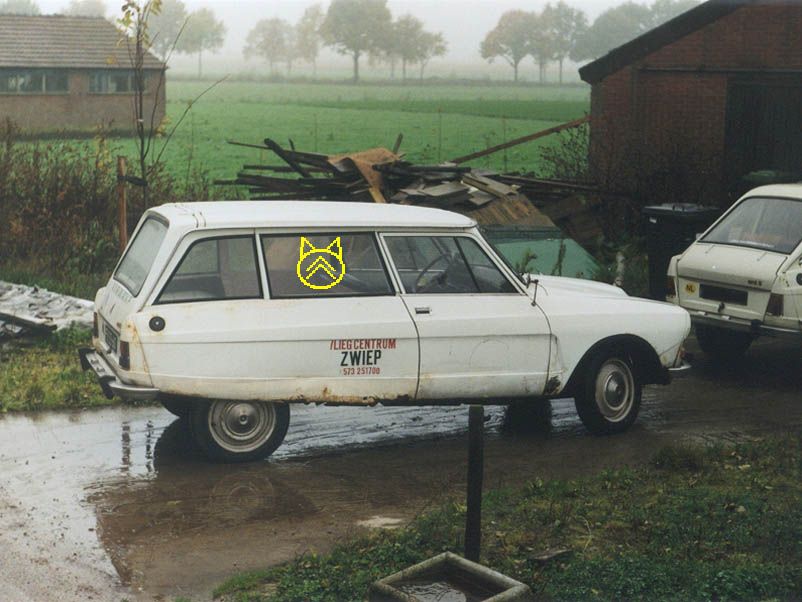

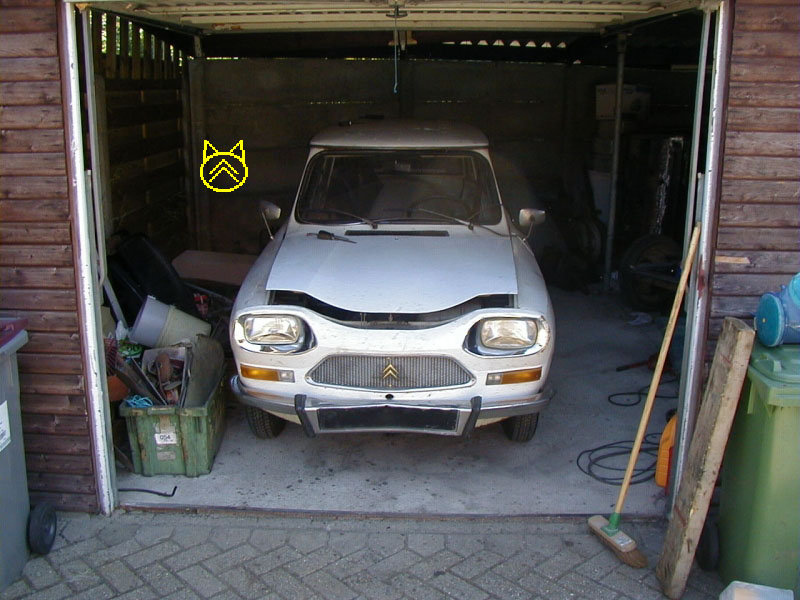

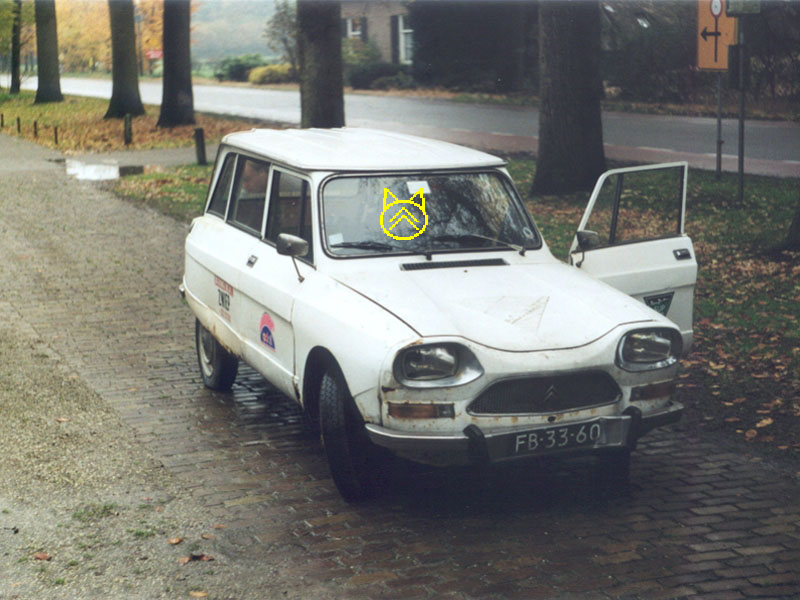

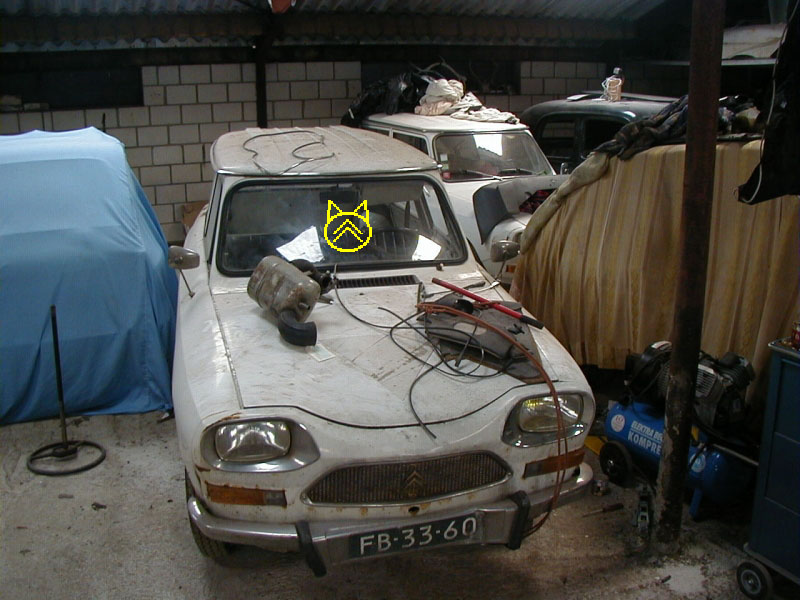

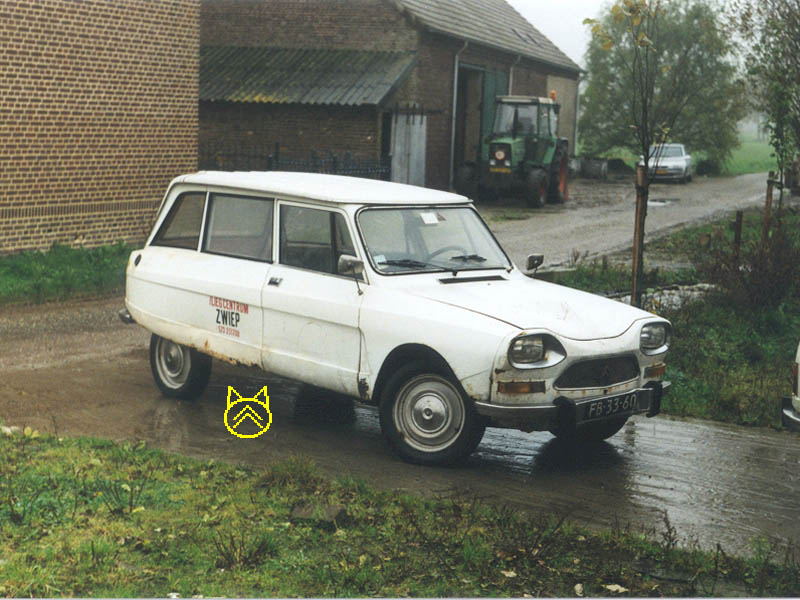

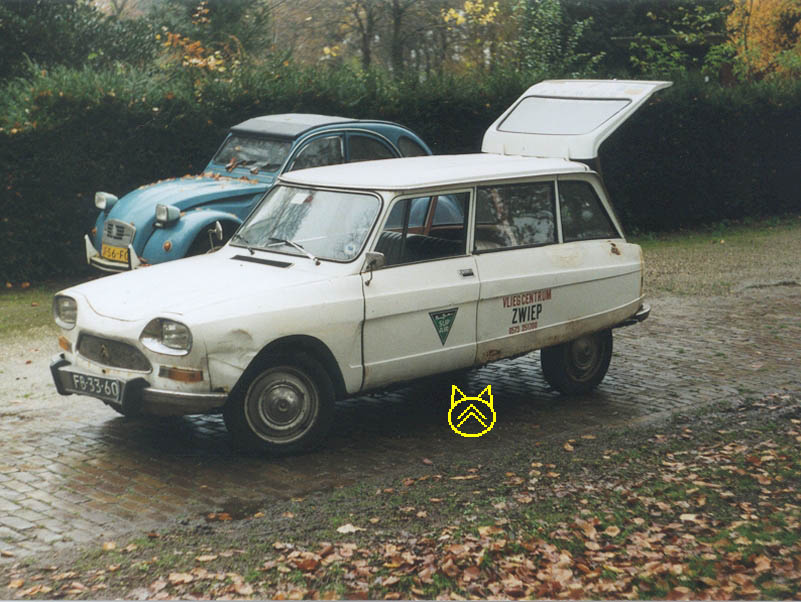

As found.

History
Click for full screen

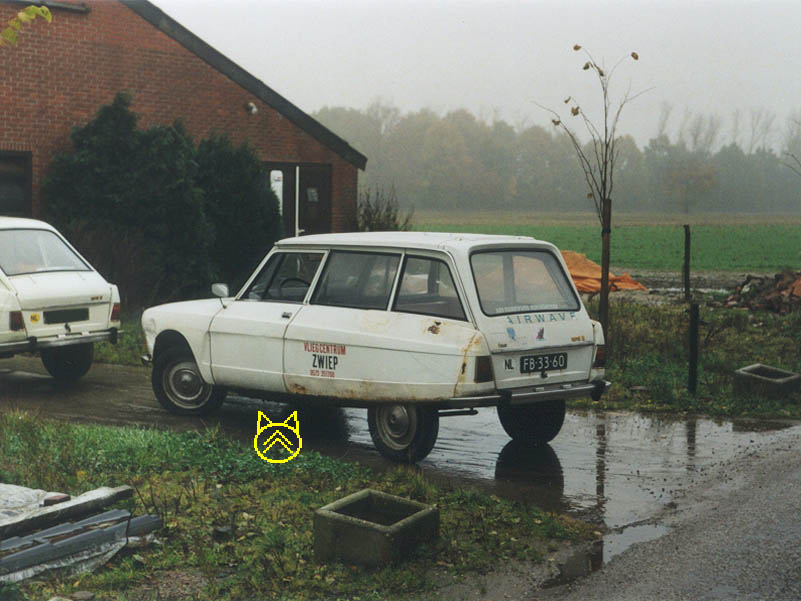

The car is an original dutch car, sold Juli 6th 1973 from the Citroën dealer in Drachten to its first owner. It's one of only a handfull service vitree sold in the Netherlands. This 1st owner sold the car in 1976 to ??? who used the car for ? years after which it was put into storage for 10 years.
In 19?? the car was sold to the third owner, R. Bonhof.
In 19?? the car was sold to a glider flying school.
In 1996 R. Bonhof bought the car back, used it for 2 years after which is was put into storage again up to 2001.
I bought the car November 24th 2001.

At home the usual damage assesment is made. The car is pretty good but has some typical ami 8 rust problems.

Rebuild started June 2003:

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

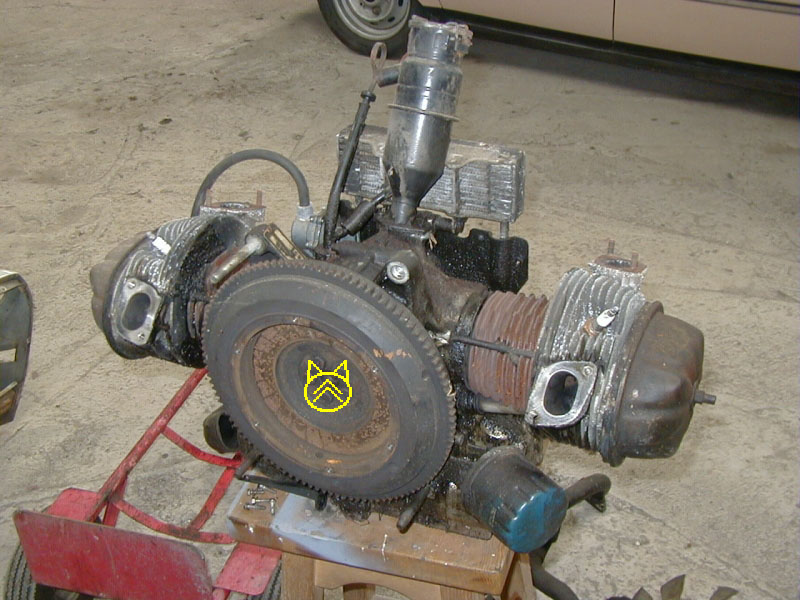

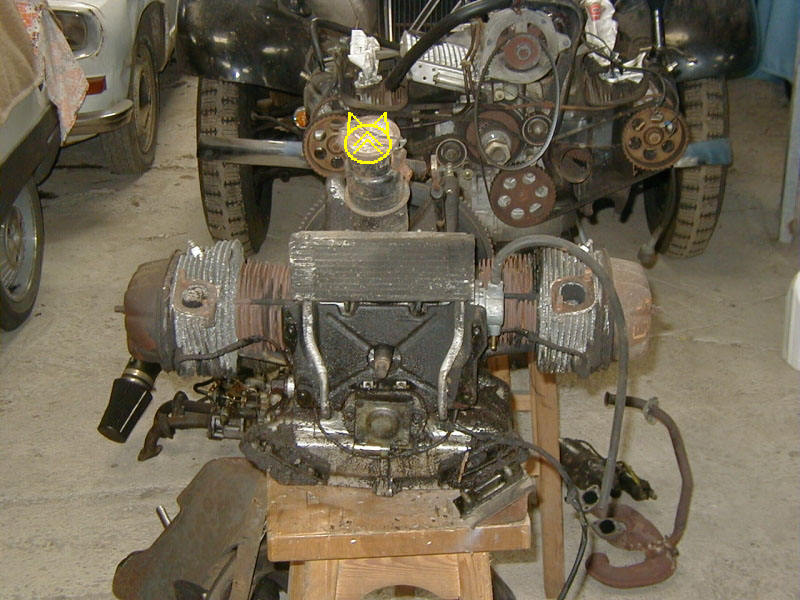

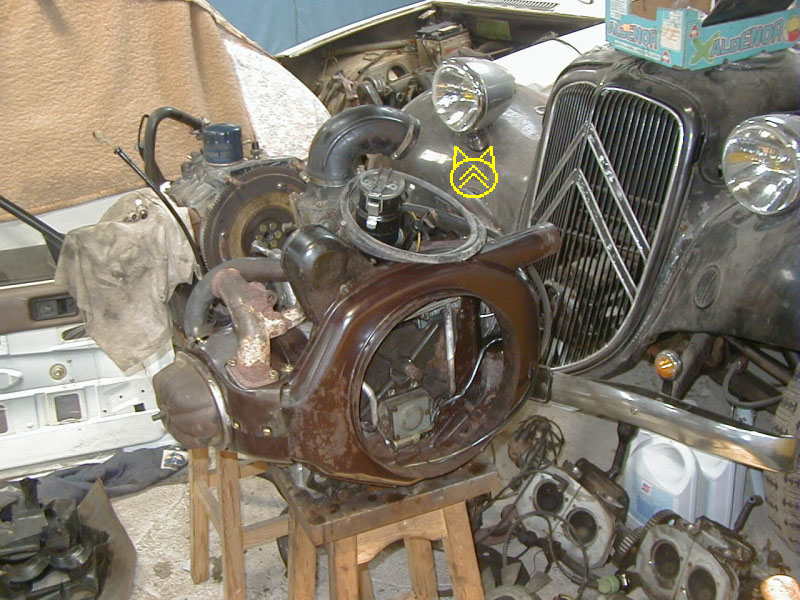

AM2 engine rebuild

Click for full screen Click for full screen

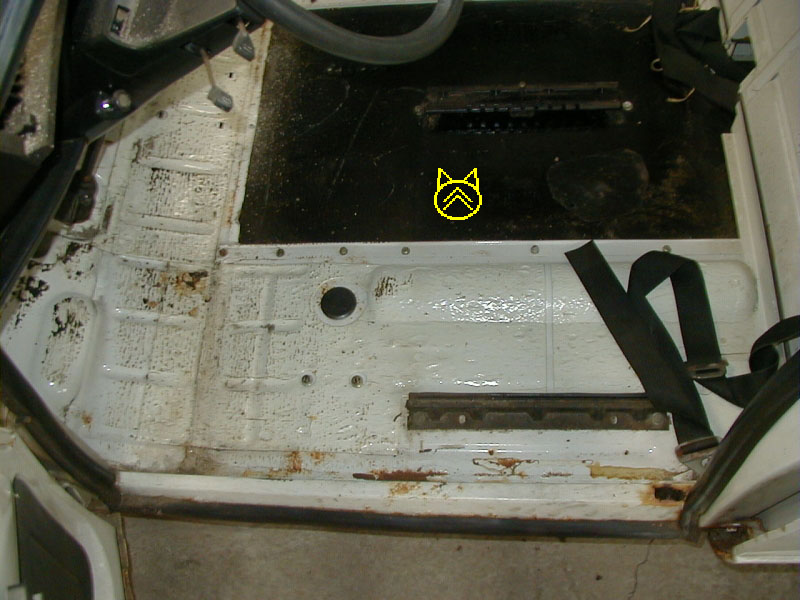

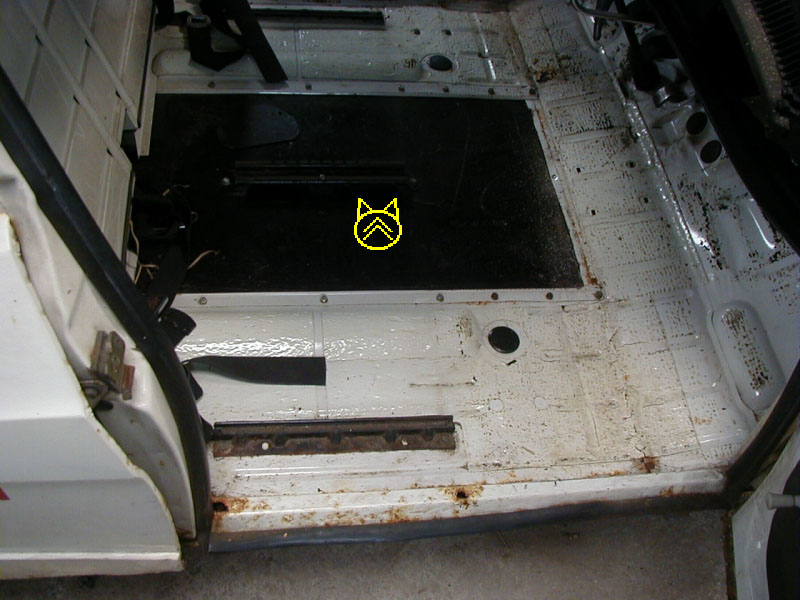

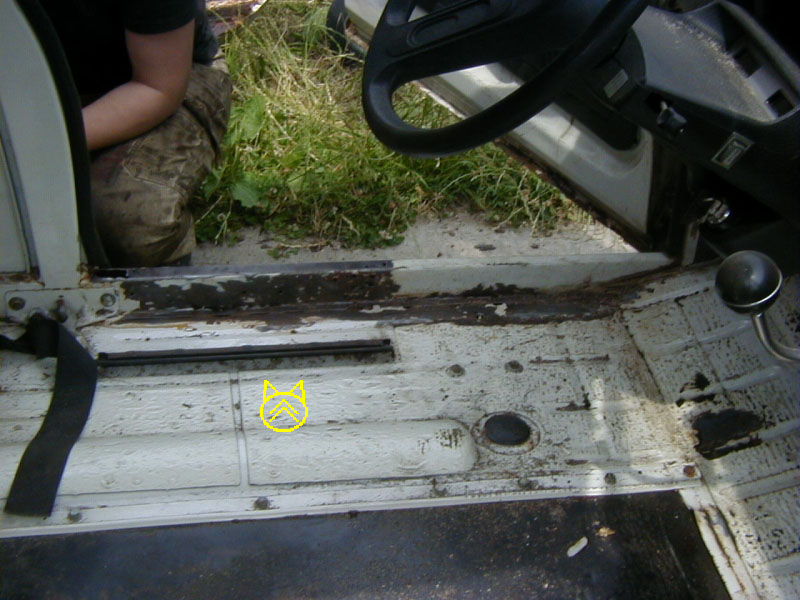

Floors don't look too bad, yet...

Click for full screen Click for full screen

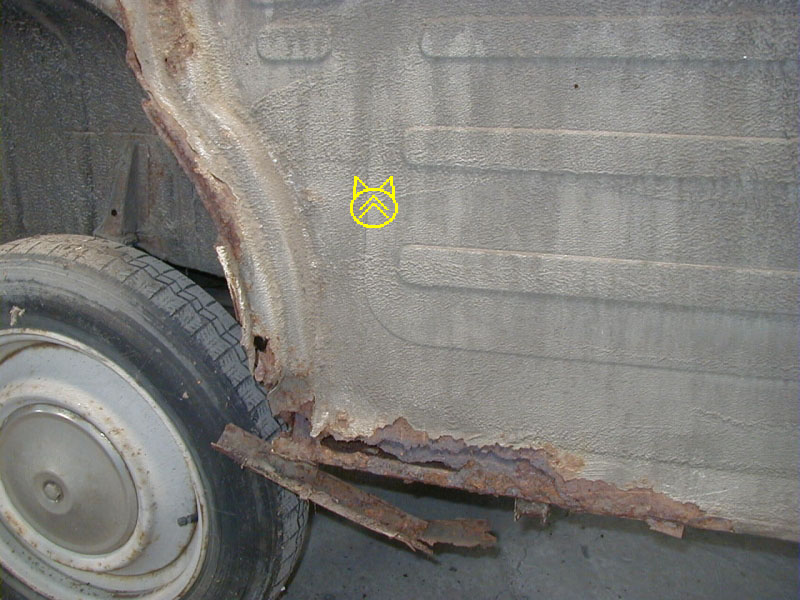

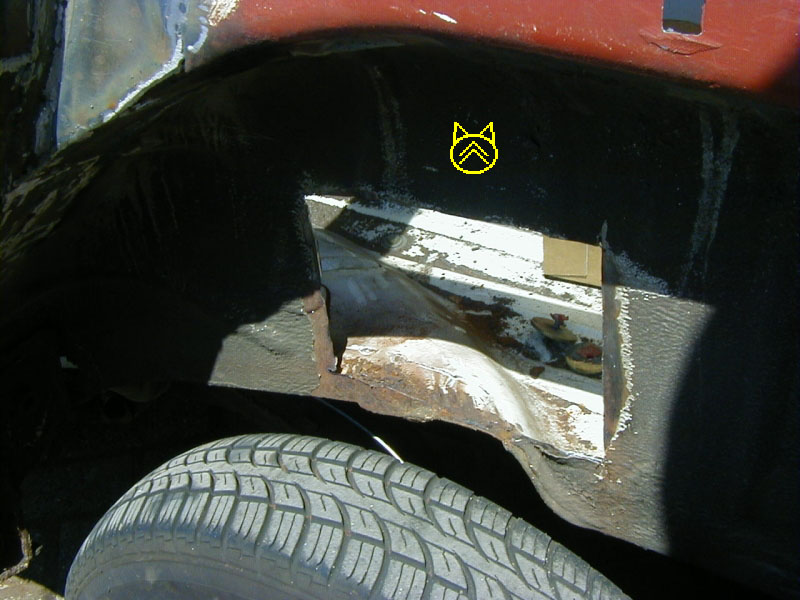

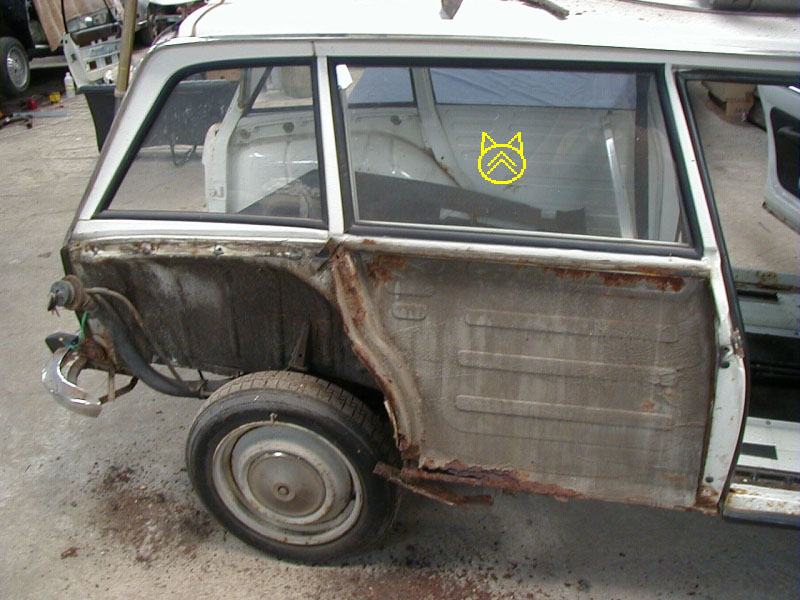

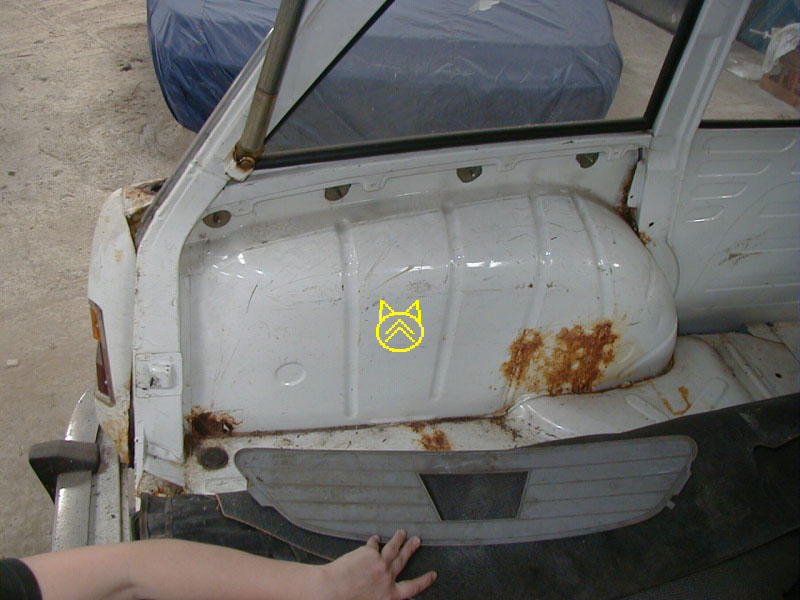

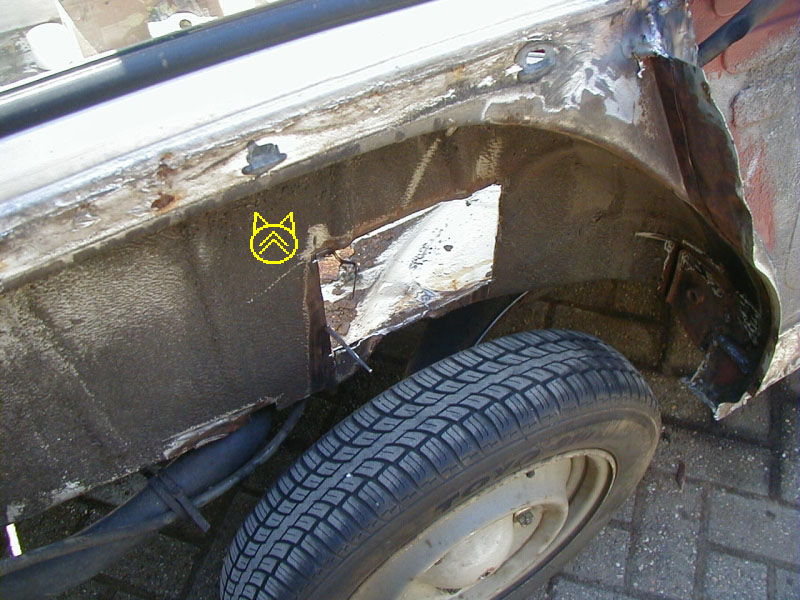

Usual and unusual rust spots

Click for full screen Click for full screen

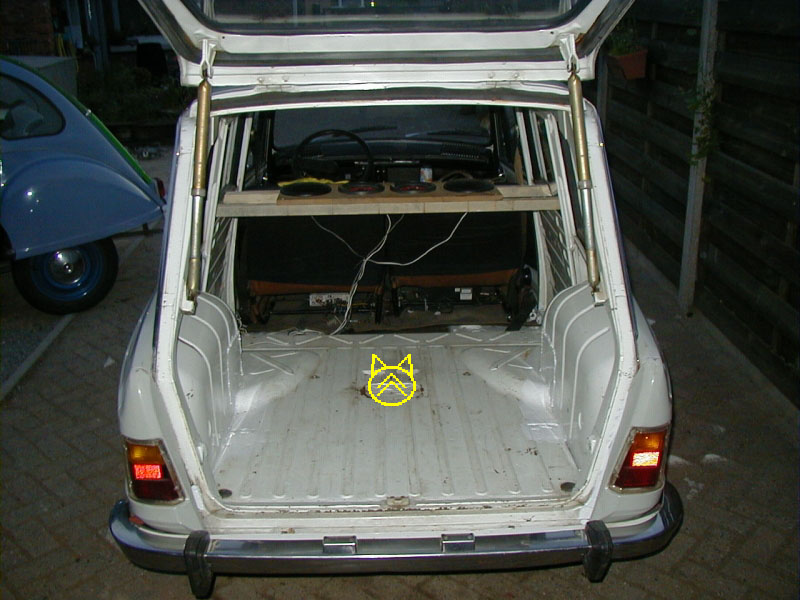

Service.

Click for full screen Click for full screen

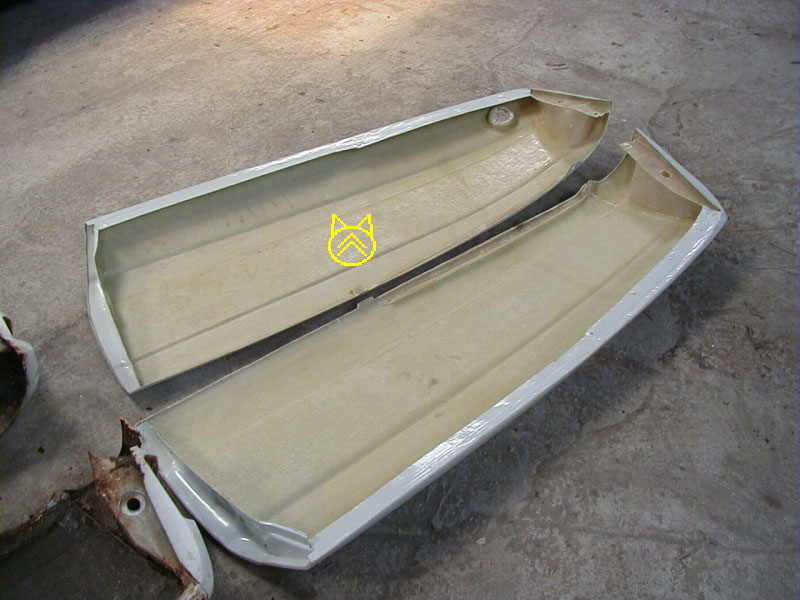

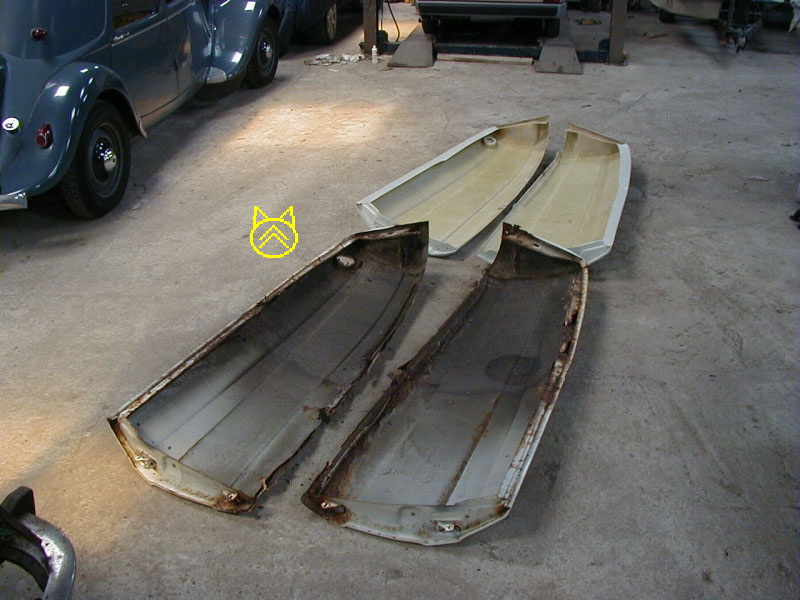

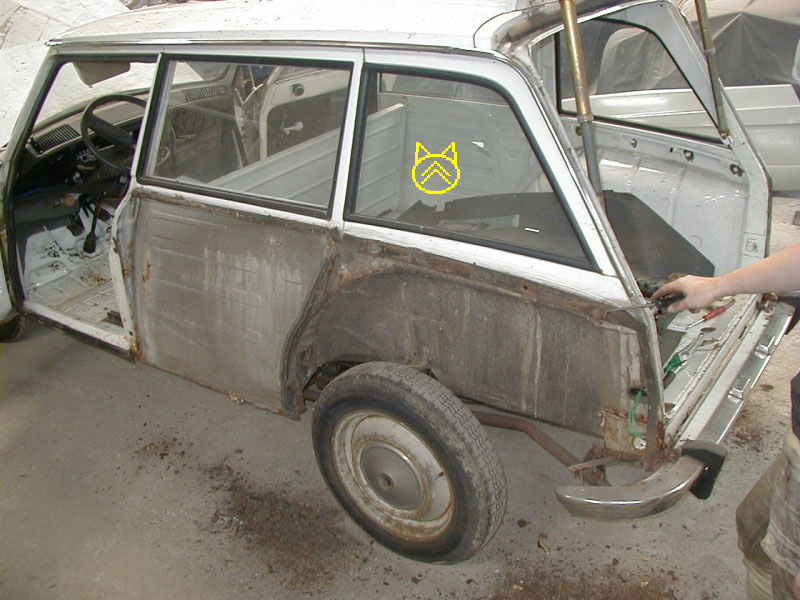

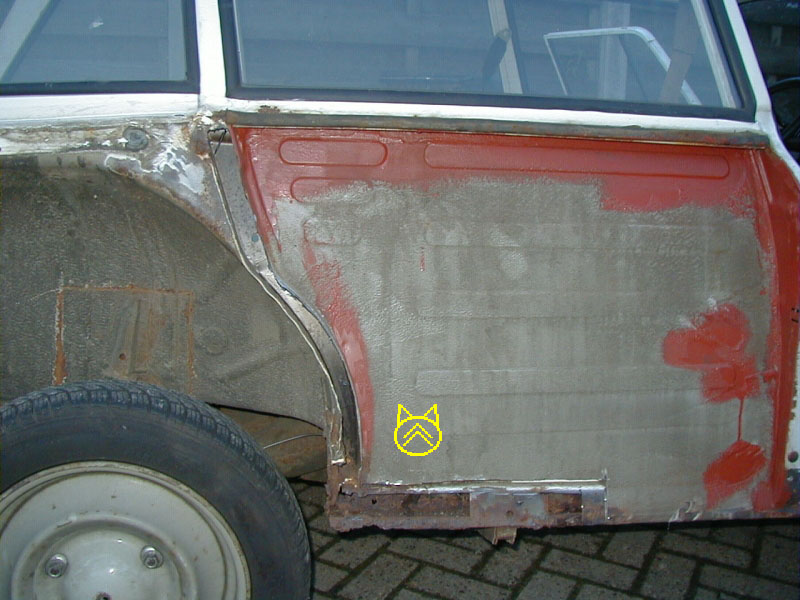

Steel (remains) and glassfibre rear wings.

Click for full screen Click for full screen

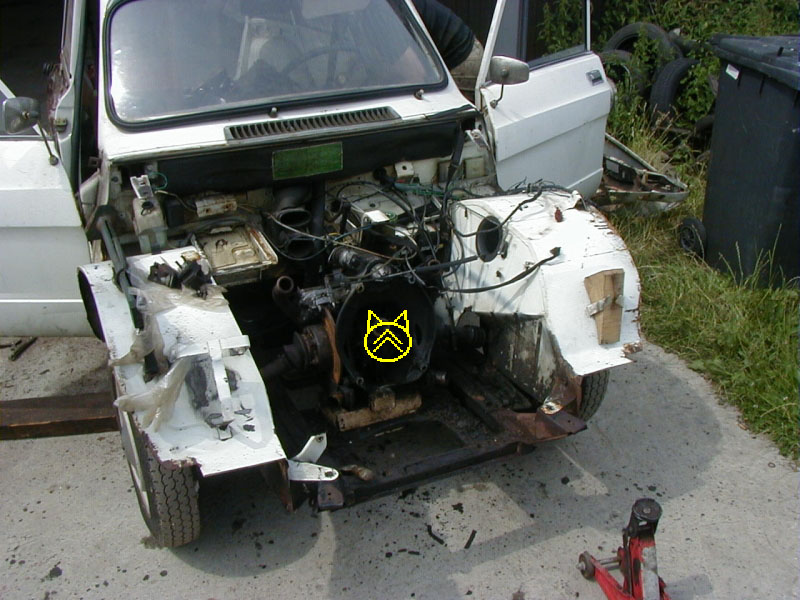

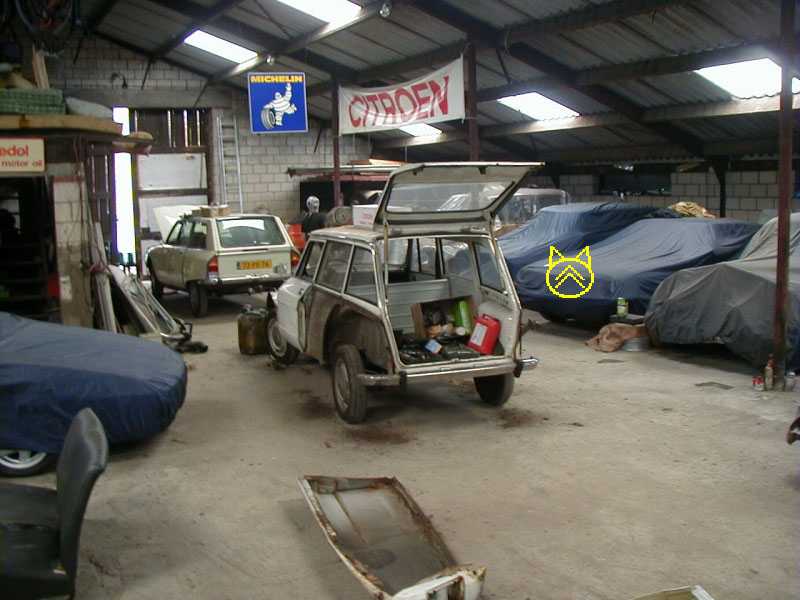

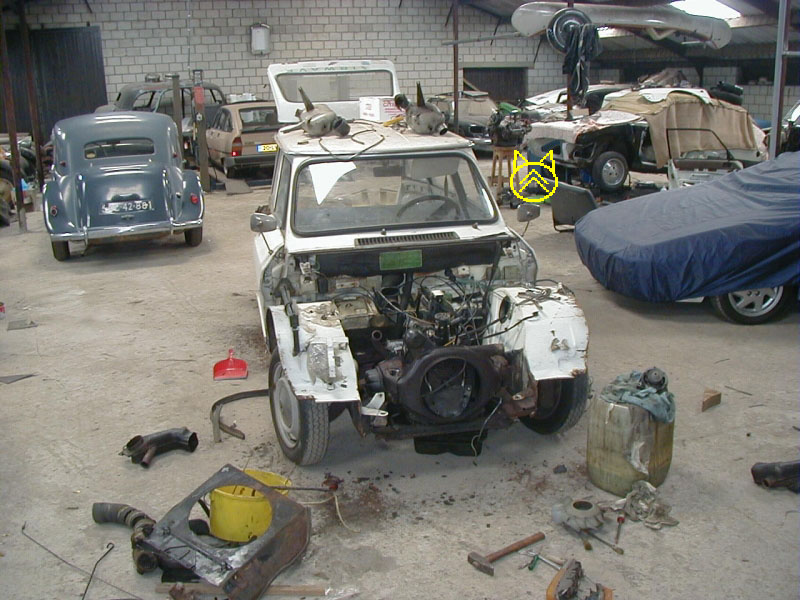

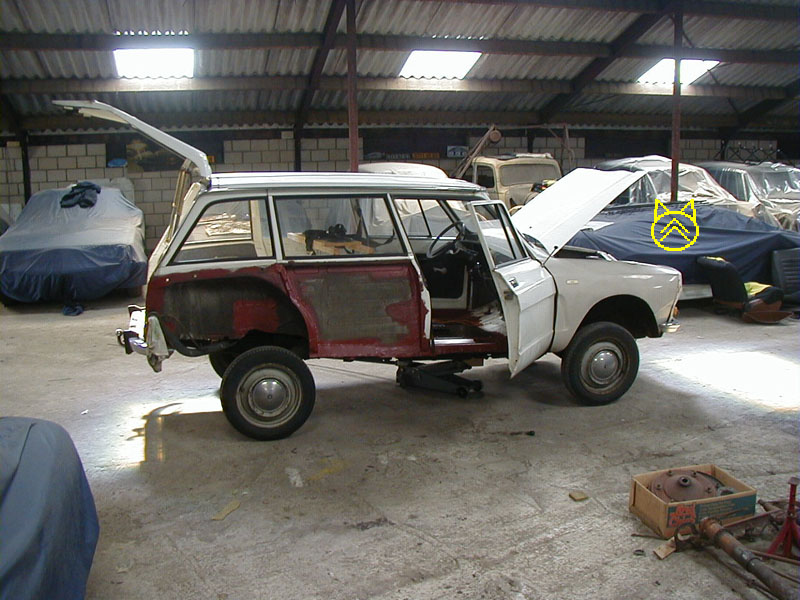

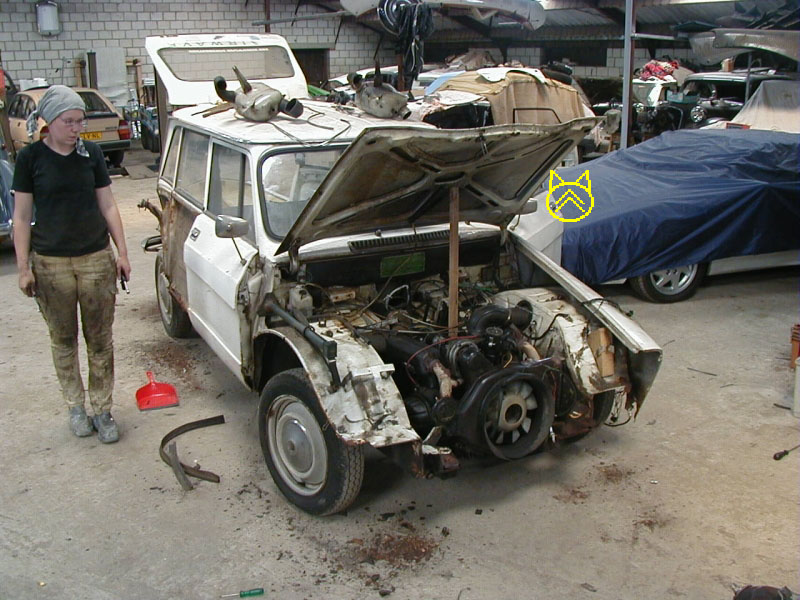

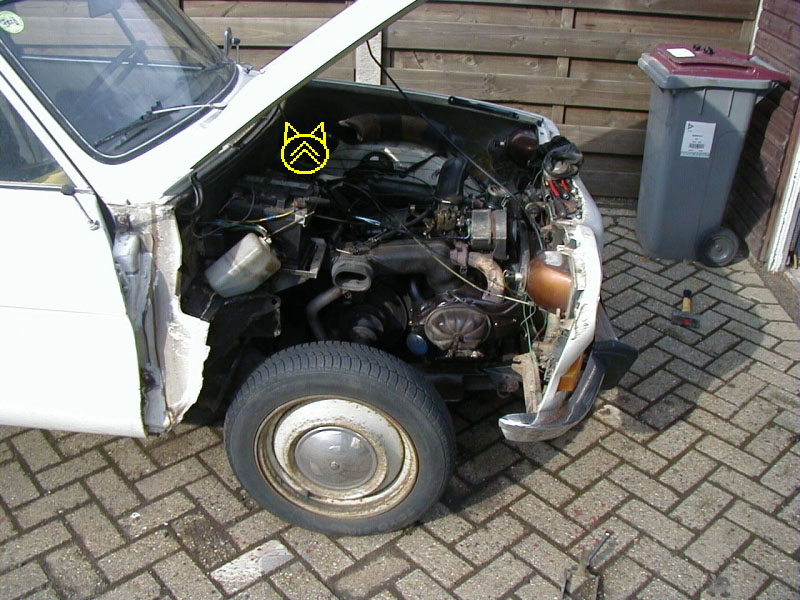

Dismantling the business end

Click for full screen Click for full screen

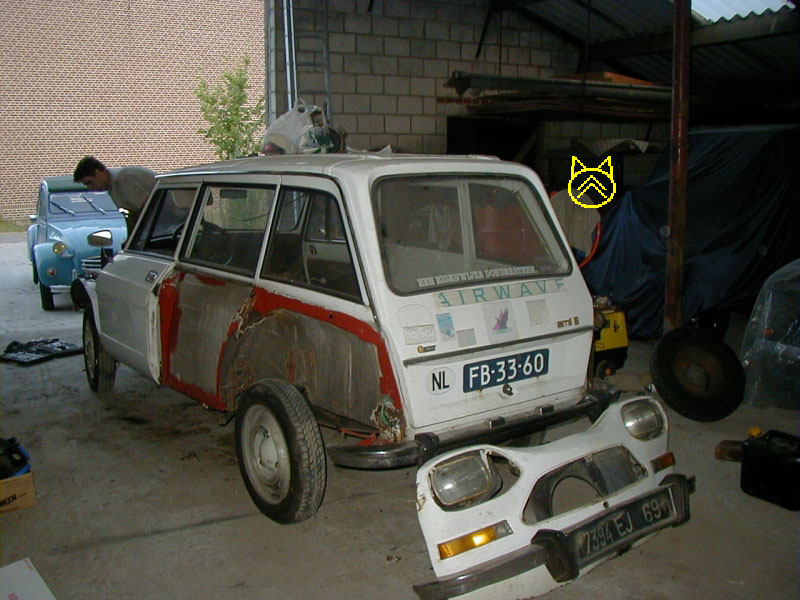

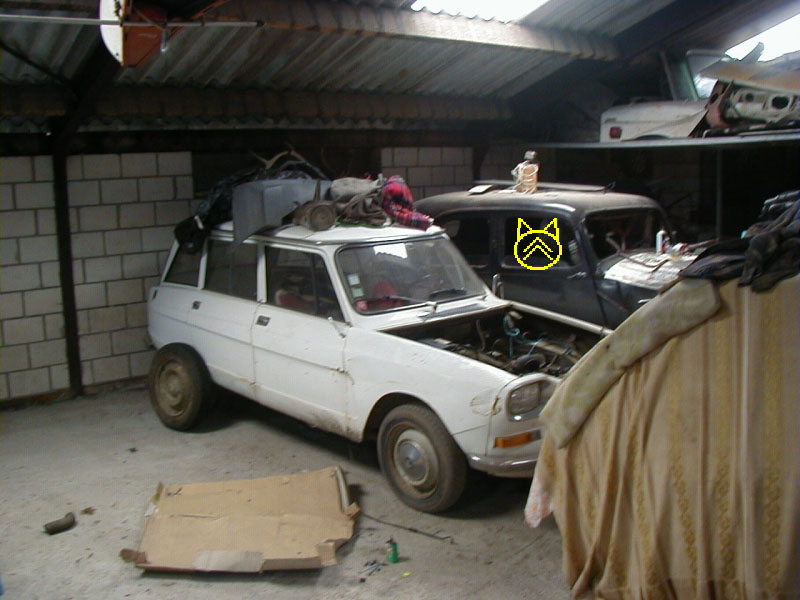

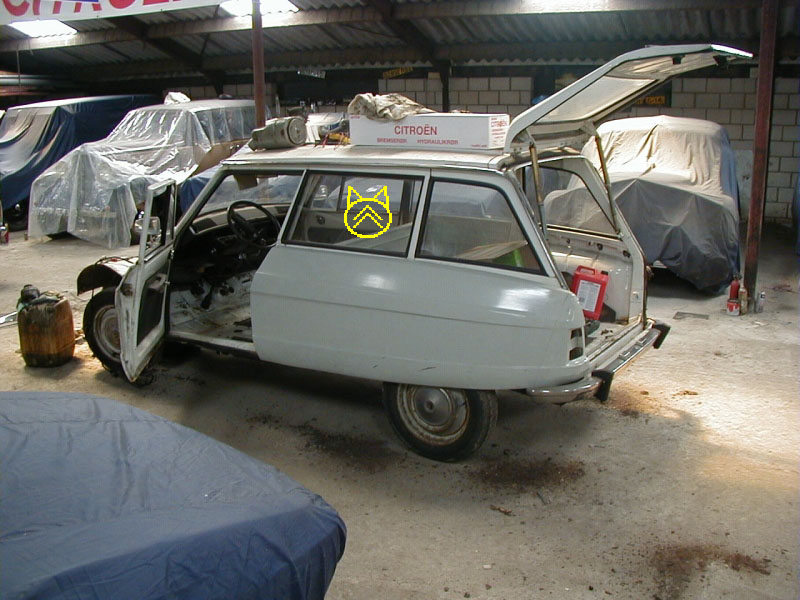

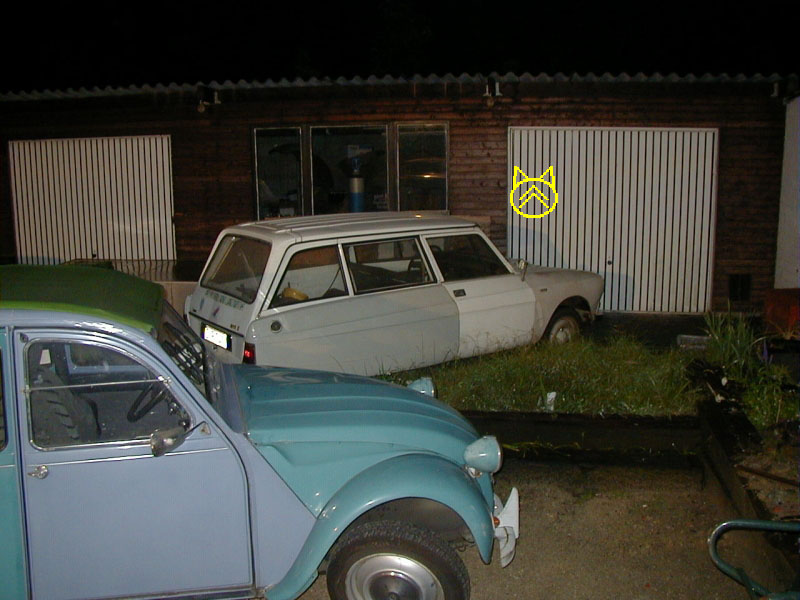

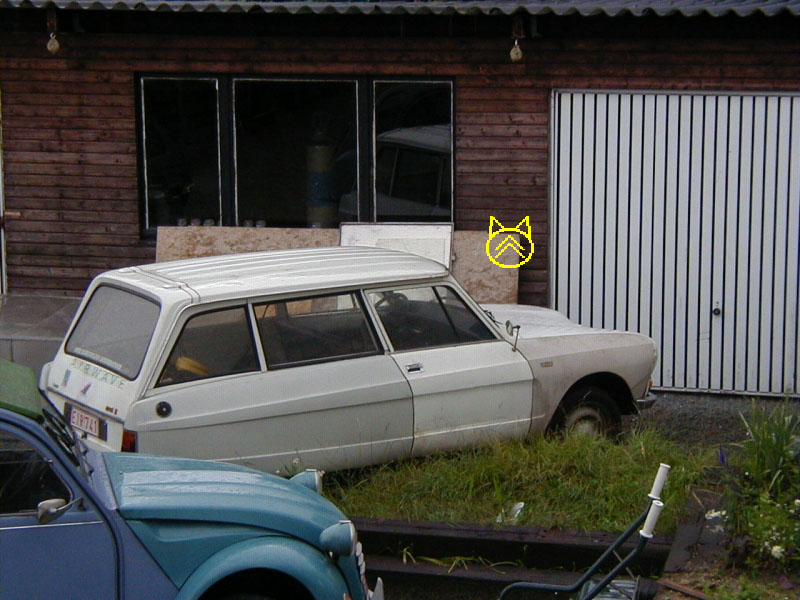

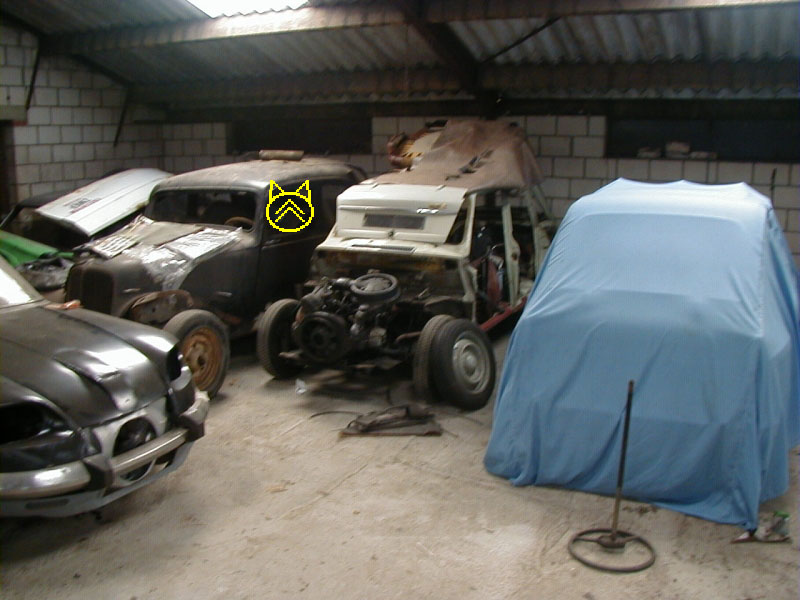

The Donors: 1973 8 berline and 1973 8 break

Click for full screen Click for full screen

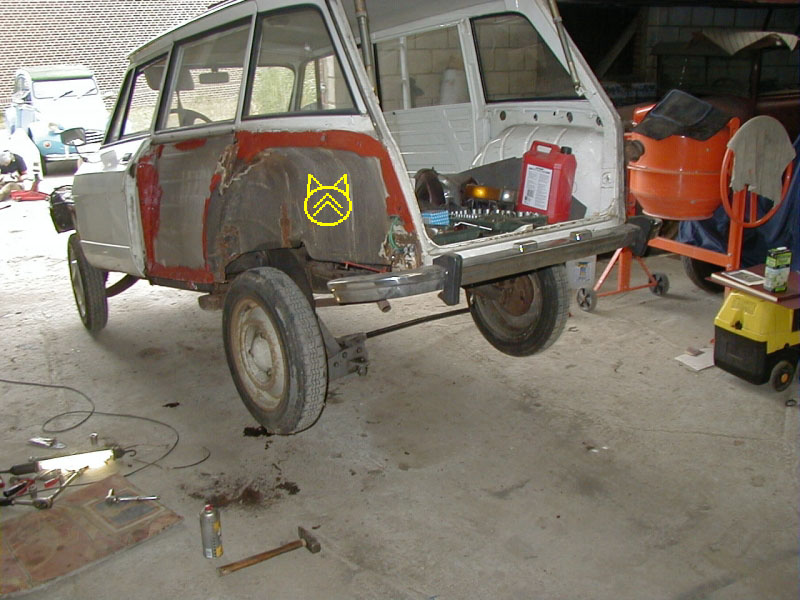

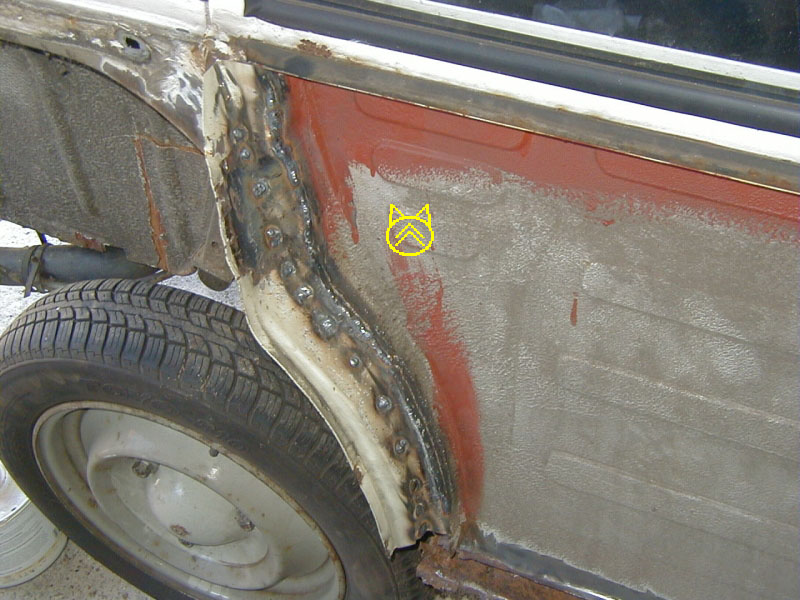

Trial fit of the new wings, quite good actually!

Click for full screen Click for full screen
Let the horror begin.

Click for full screen Click for full screen
Technical matters.

Click for full screen Click for full screen

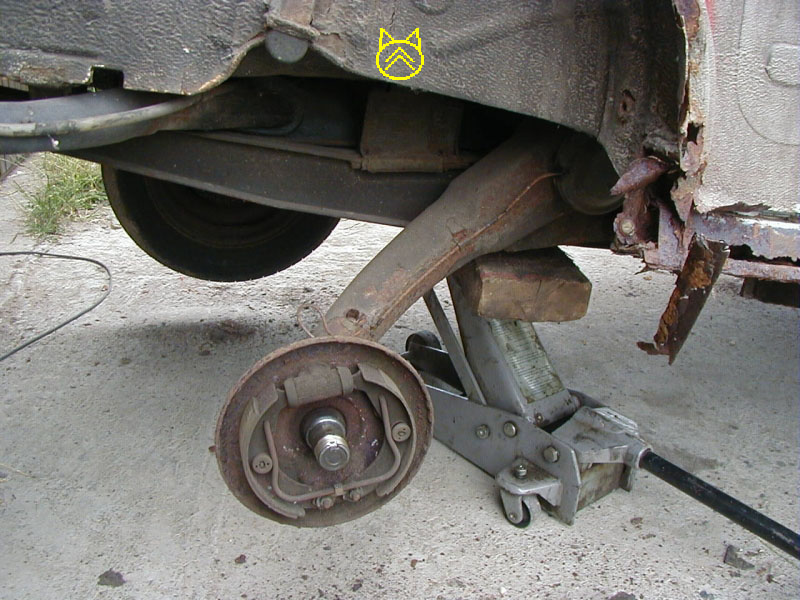

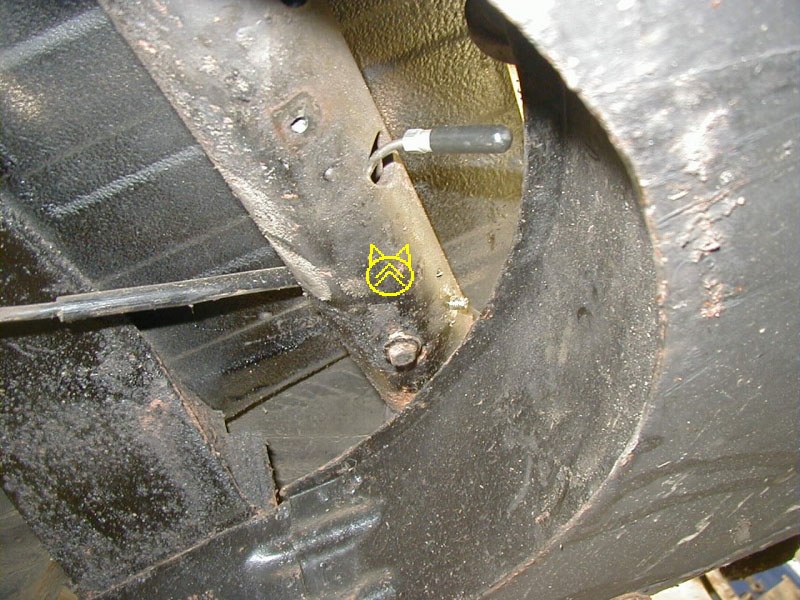

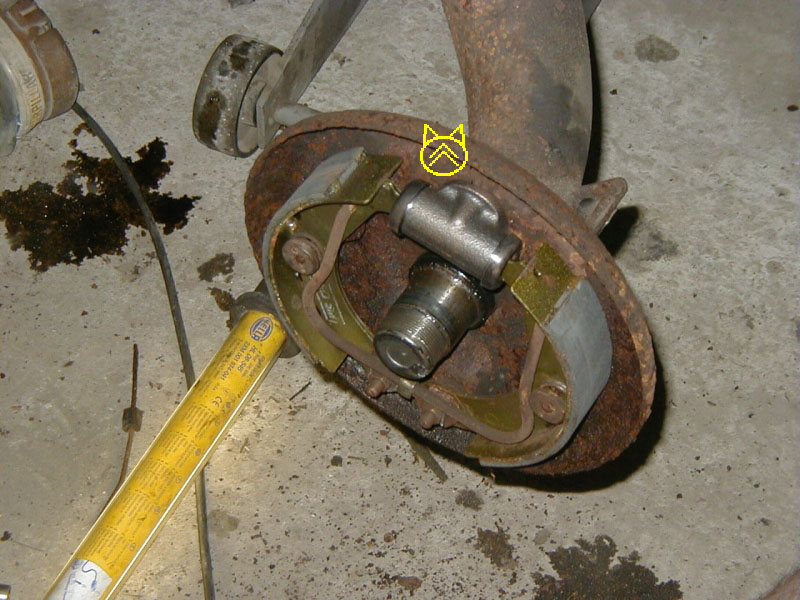

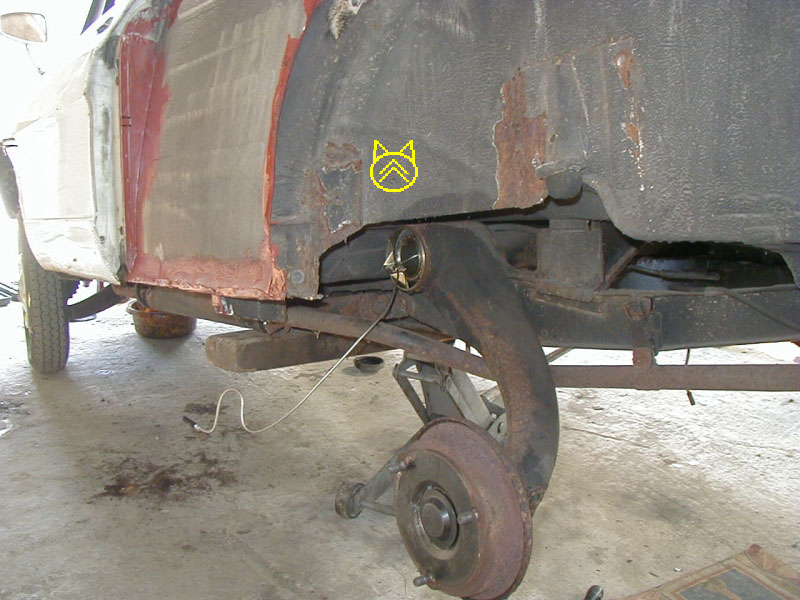

Rear brakes.

Click for full screen Click for full screen

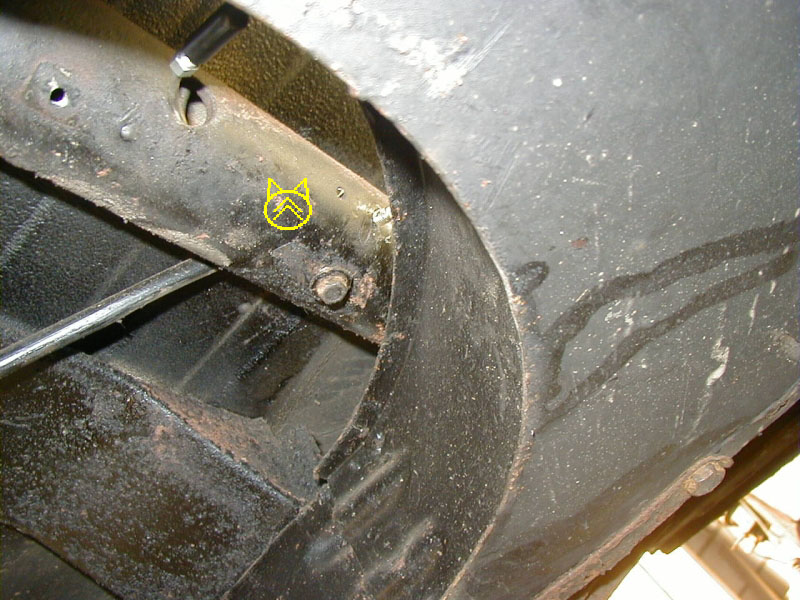

Rear brake lines, very fiddly.

Click for full screen Click for full screen

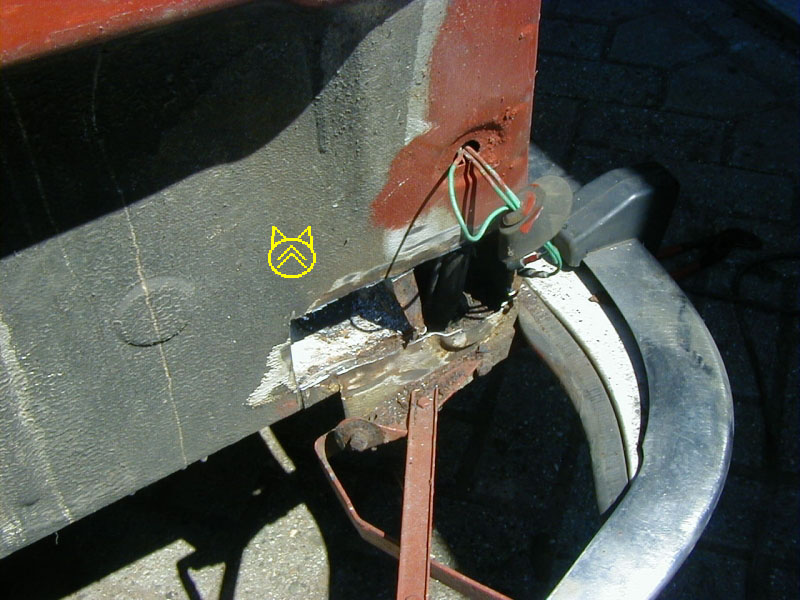

Rear brake lines, getting the trhreaded bolt through the axle body.

Click for full screen Click for full screen

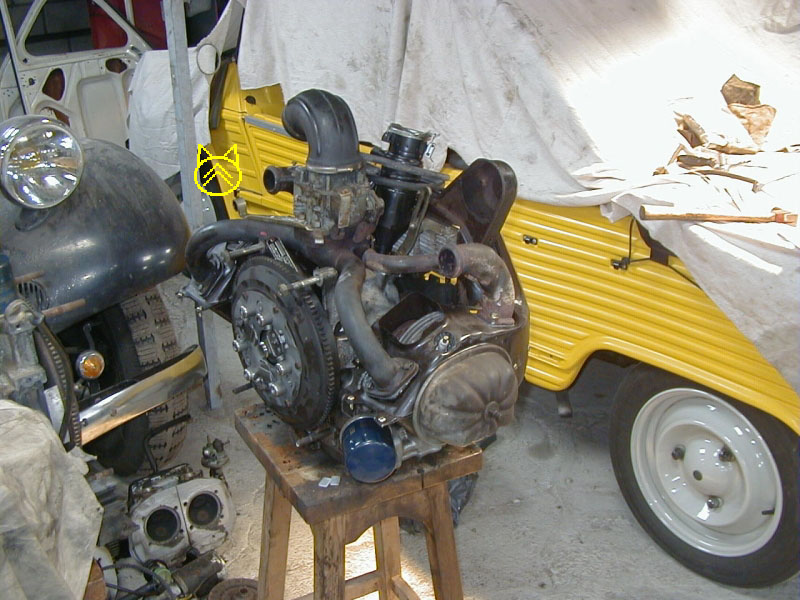

Engine, ready to go in.

Click for full screen Click for full screen

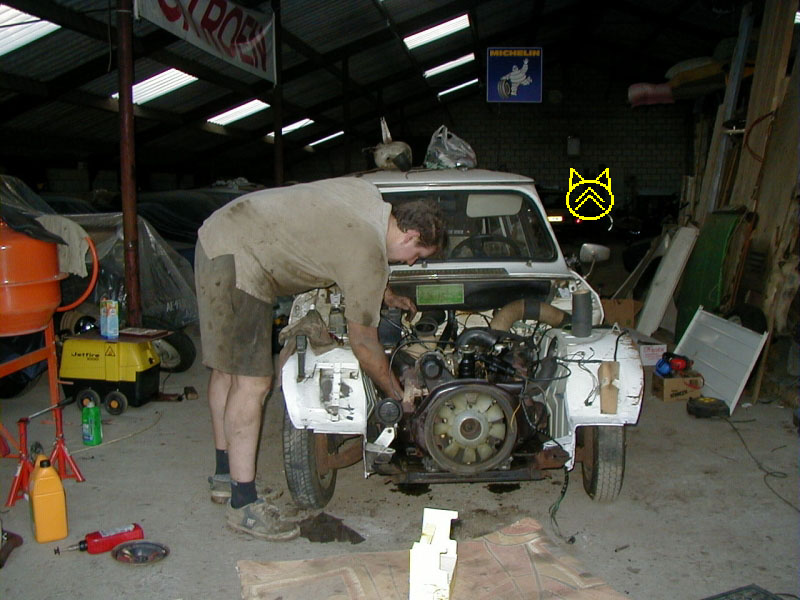

Getting it all back together.

Click for full screen Click for full screen

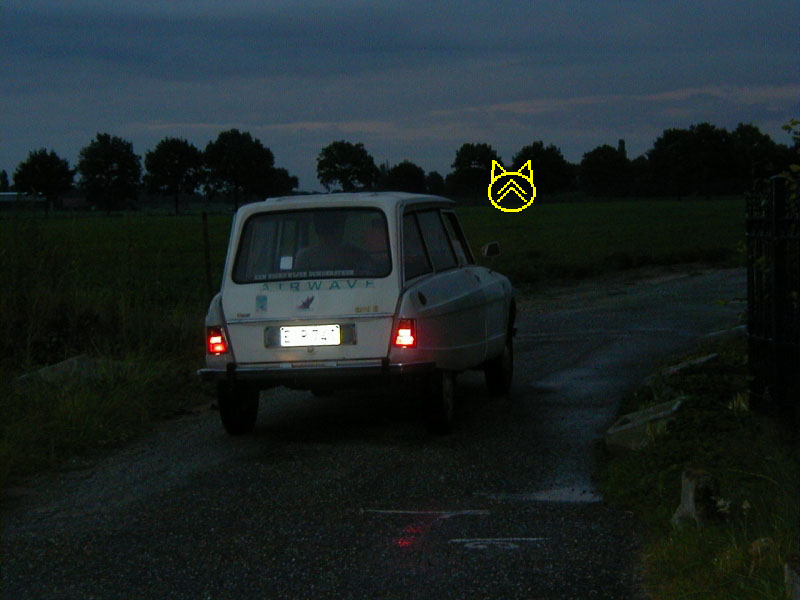

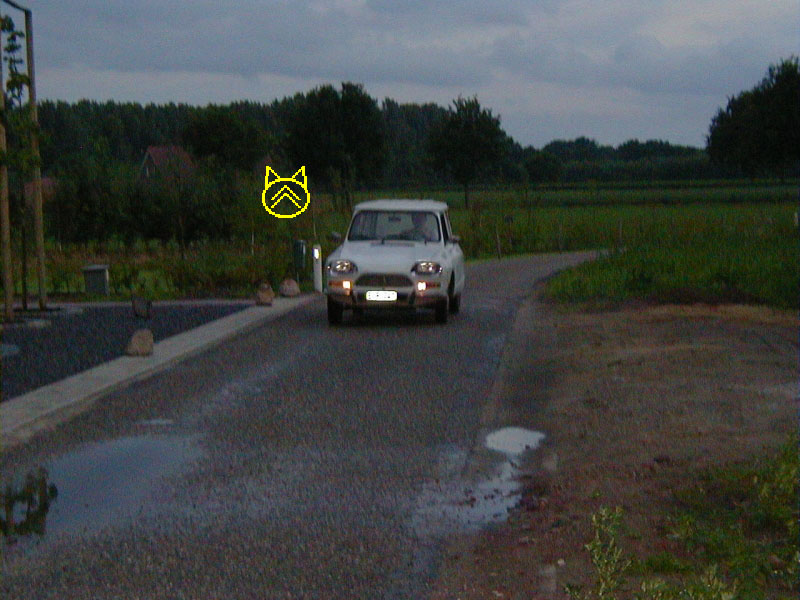

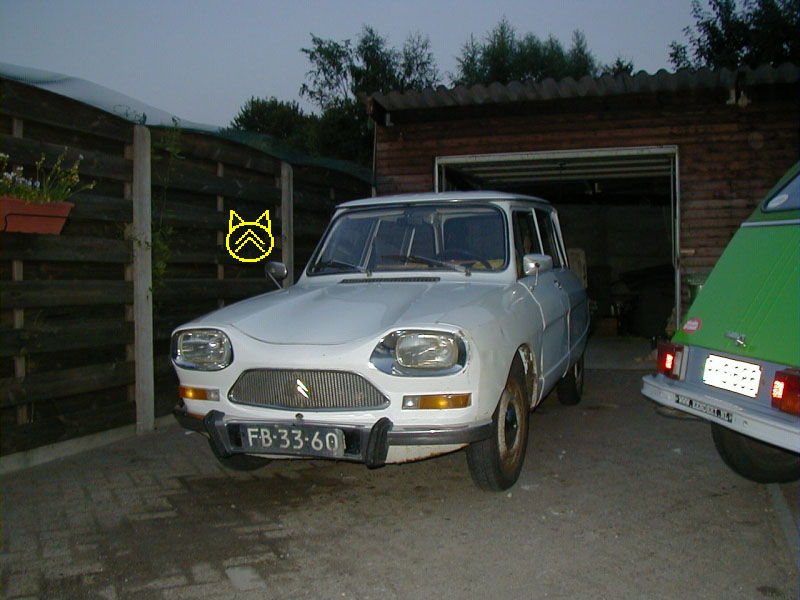

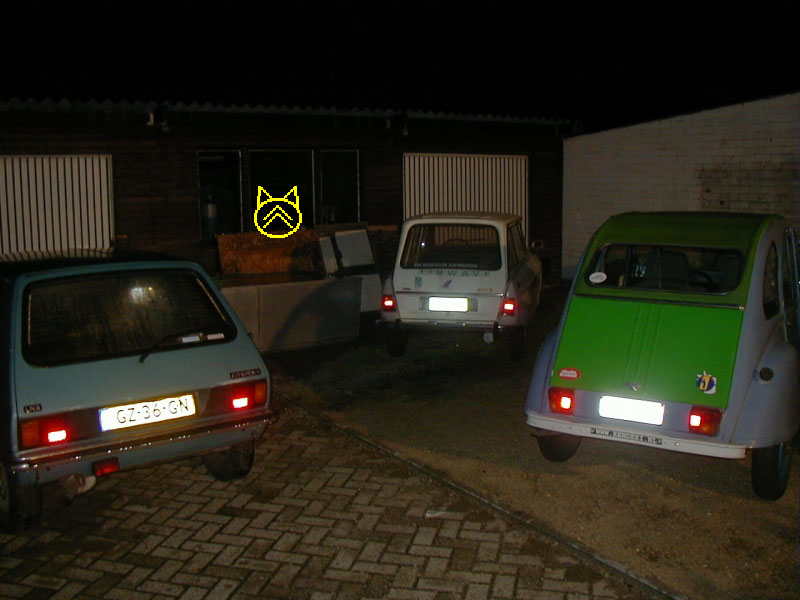

11.00 PM test drive.

Click for full screen Click for full screen
Made it, first 100km, no problems.

Click for full screen Click for full screen
Made it, first 100km, no problems.

Click for full screen Click for full screen

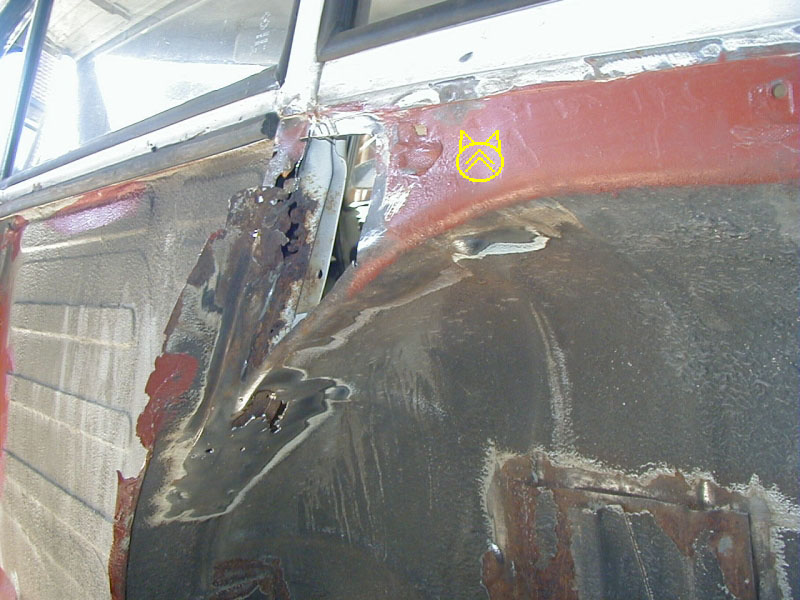

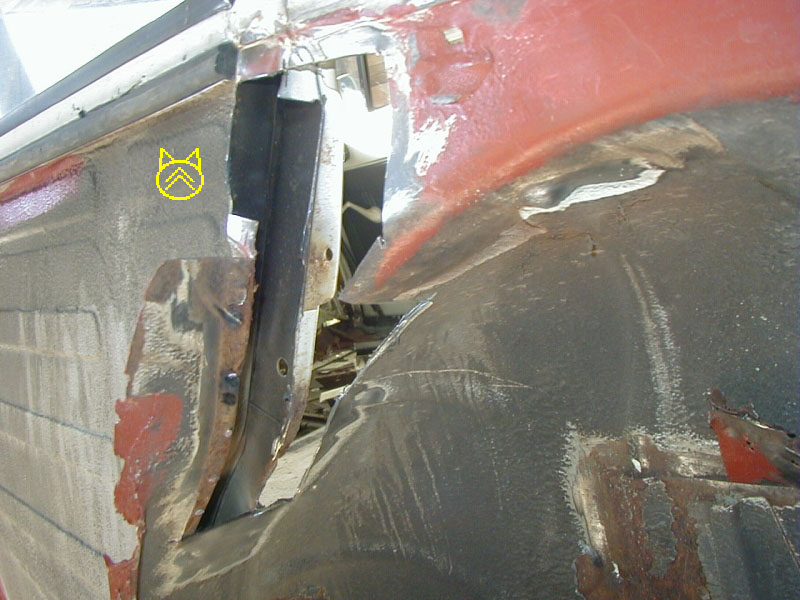

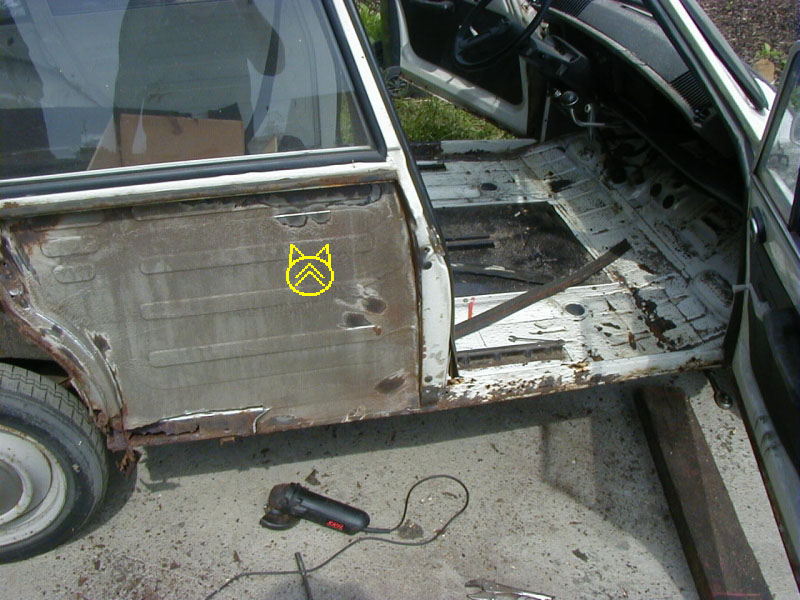

Rust repair.

Click for full screen Click for full screen

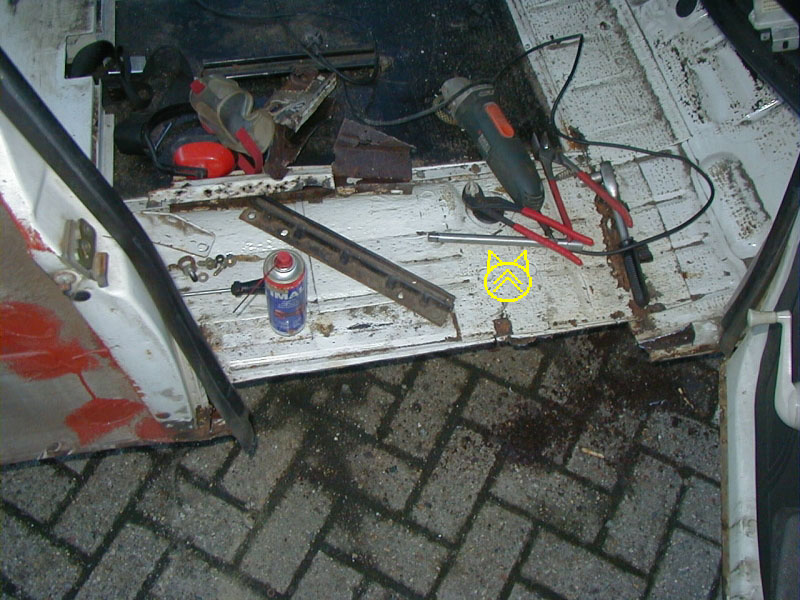

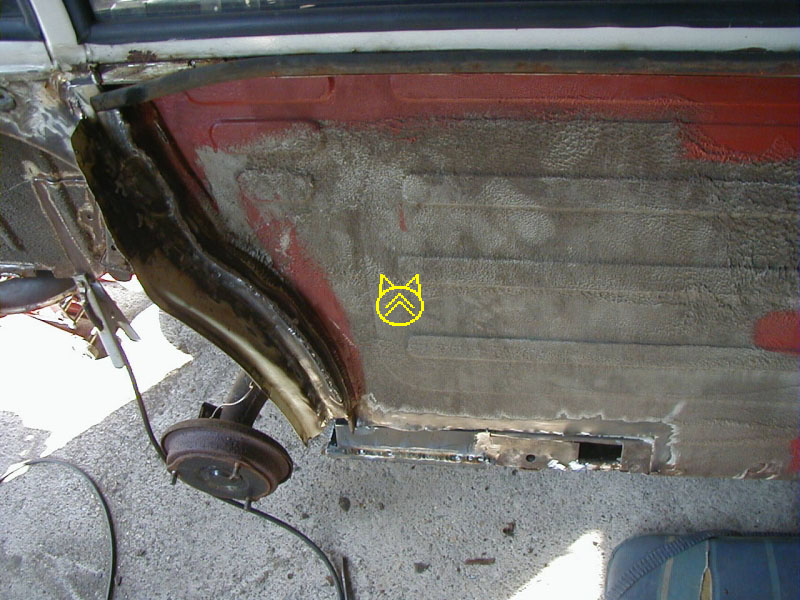

After long consideration, decided to repair the floor, not replace it.

Click for full screen Click for full screen

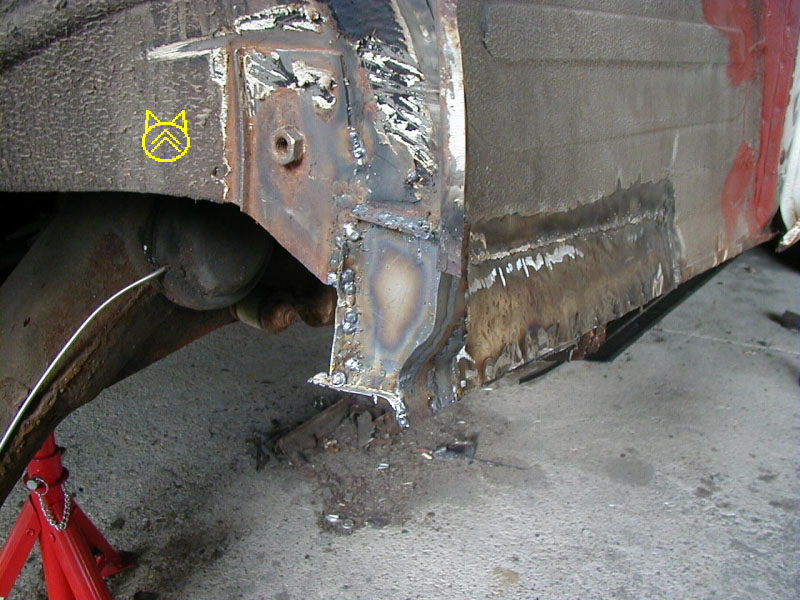

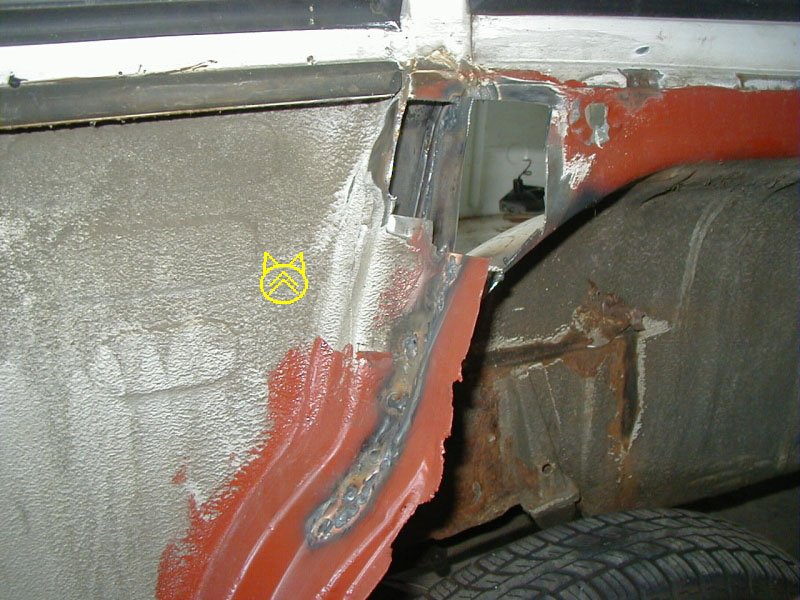

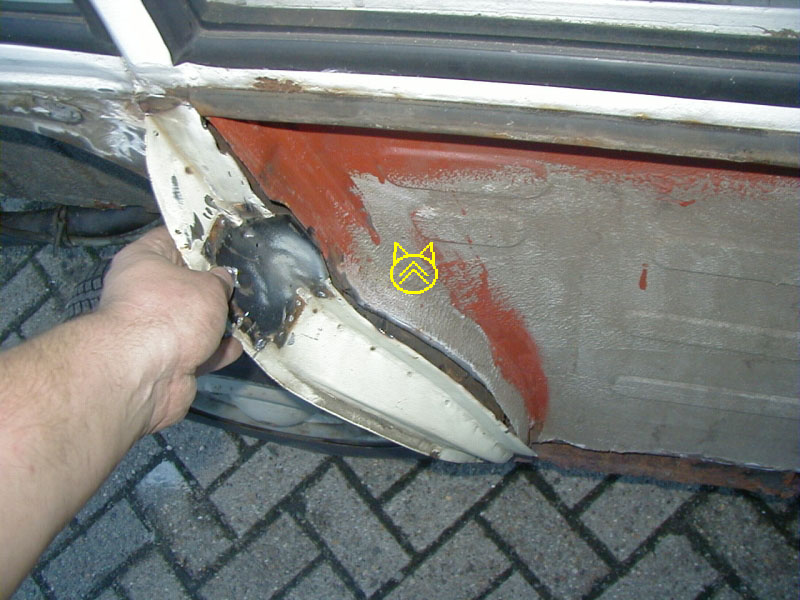

Welding in the donor bit, too bad the bottom bit is missing.

Click for full screen Click for full screen

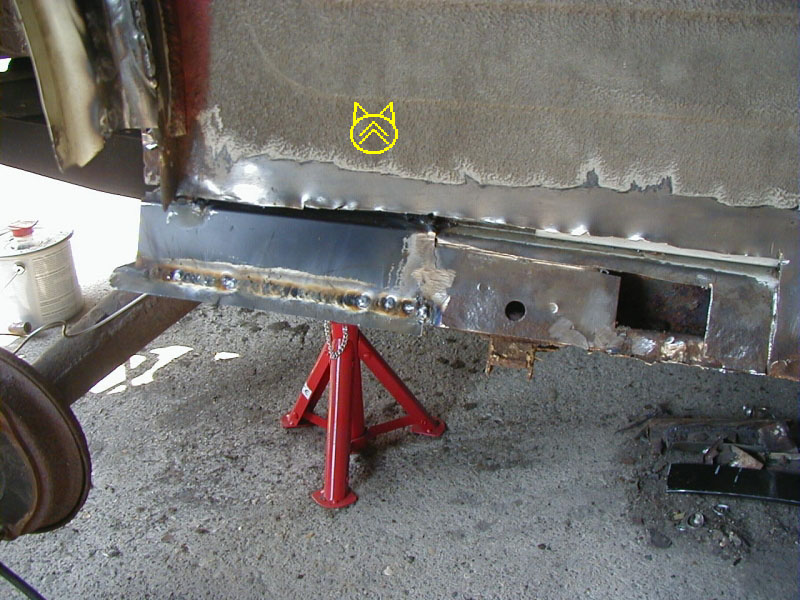

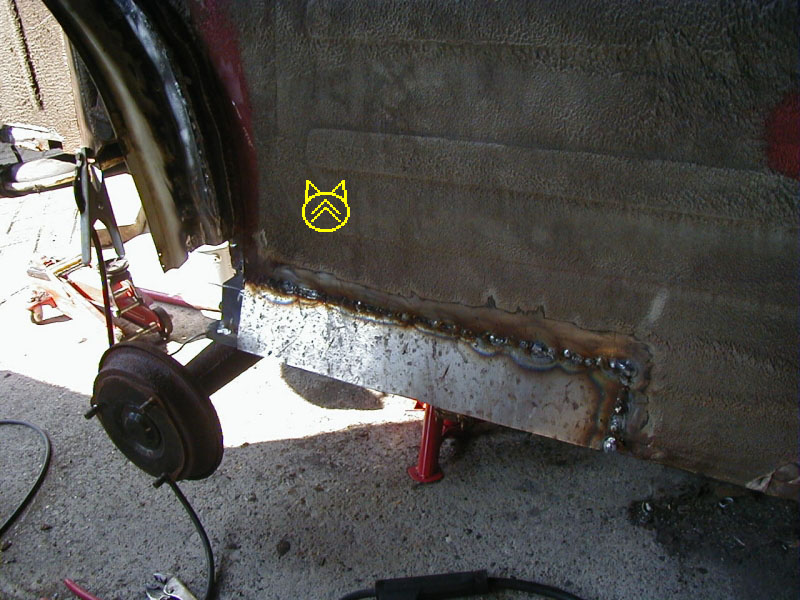

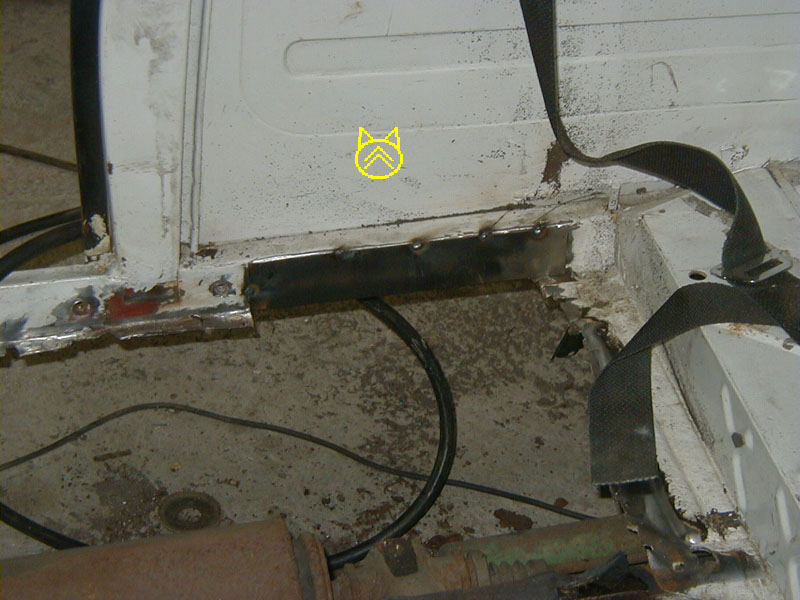

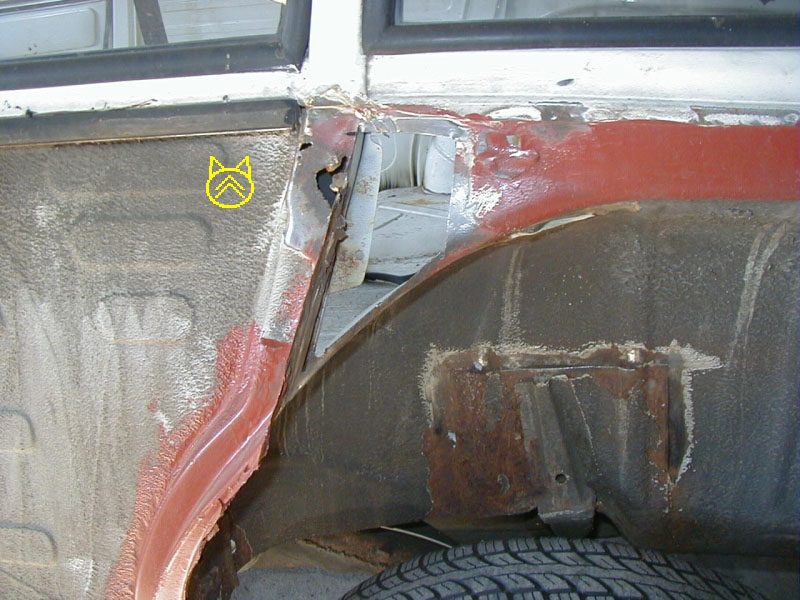

New rear sill section and repaired service panel.

Click for full screen Click for full screen

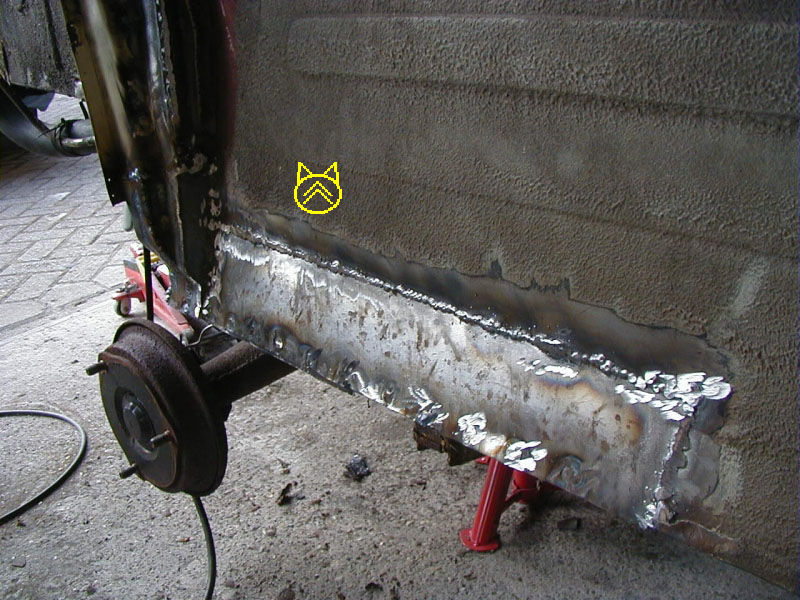

Completed, all new corner.

Click for full screen

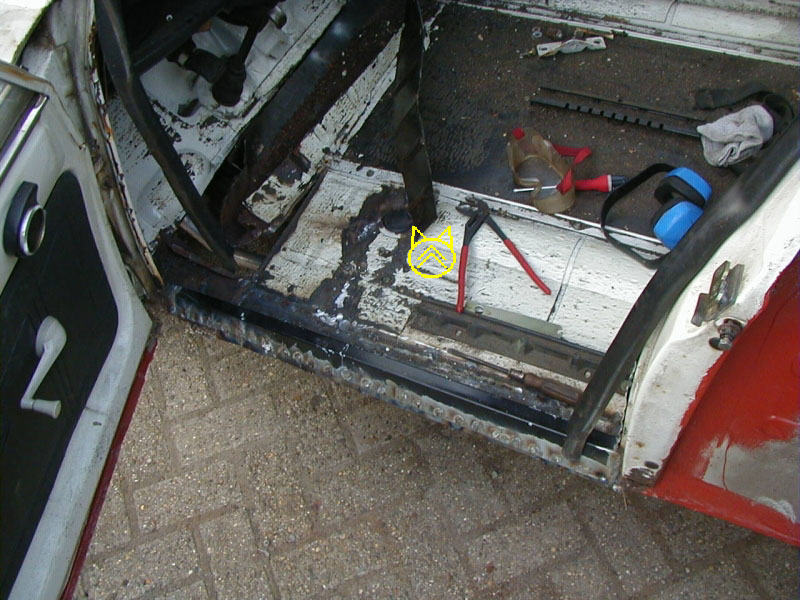

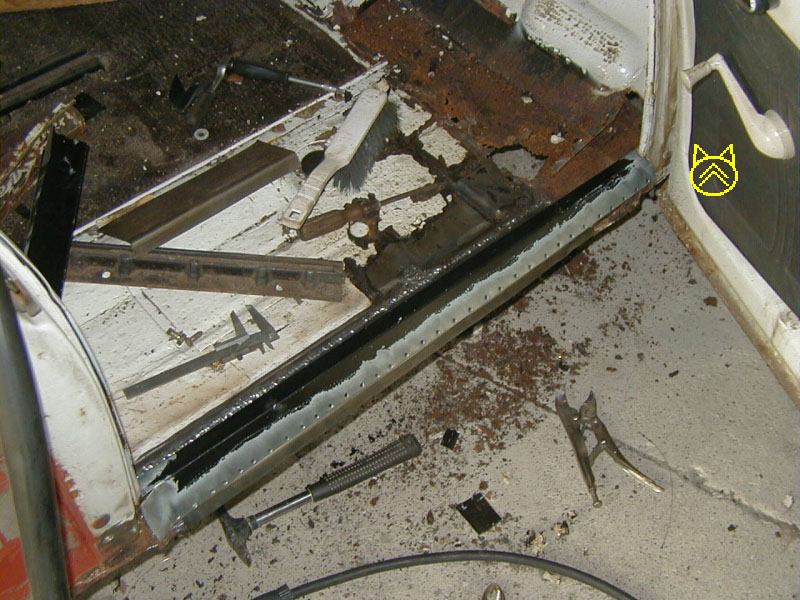

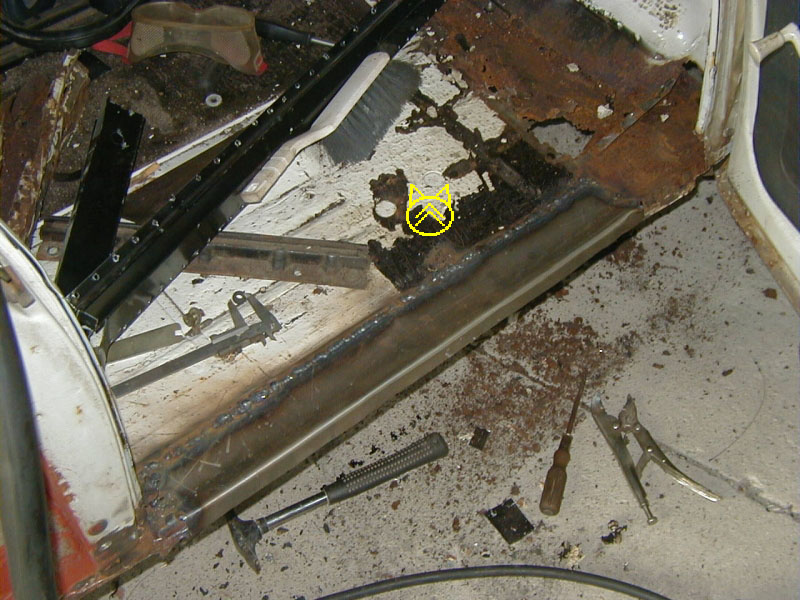

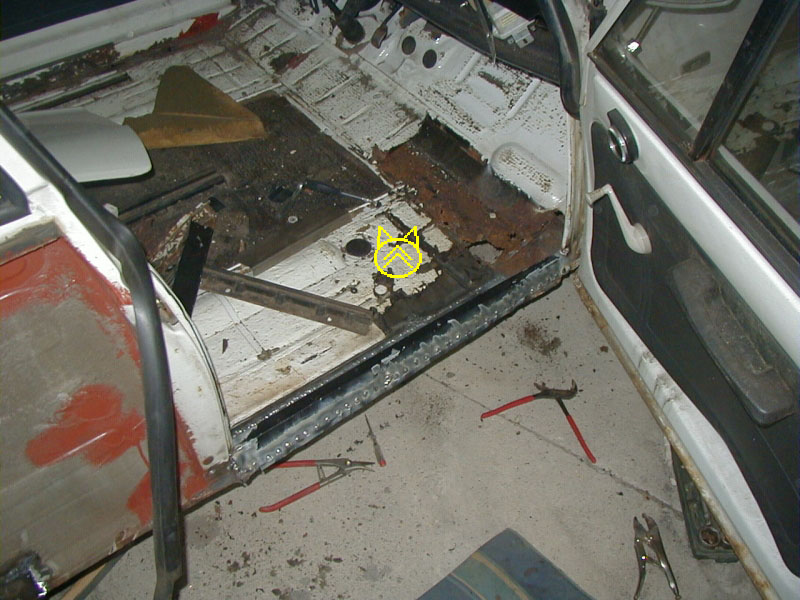

Sill ready to be welded in, footwell is gone...

Click for full screen Click for full screen

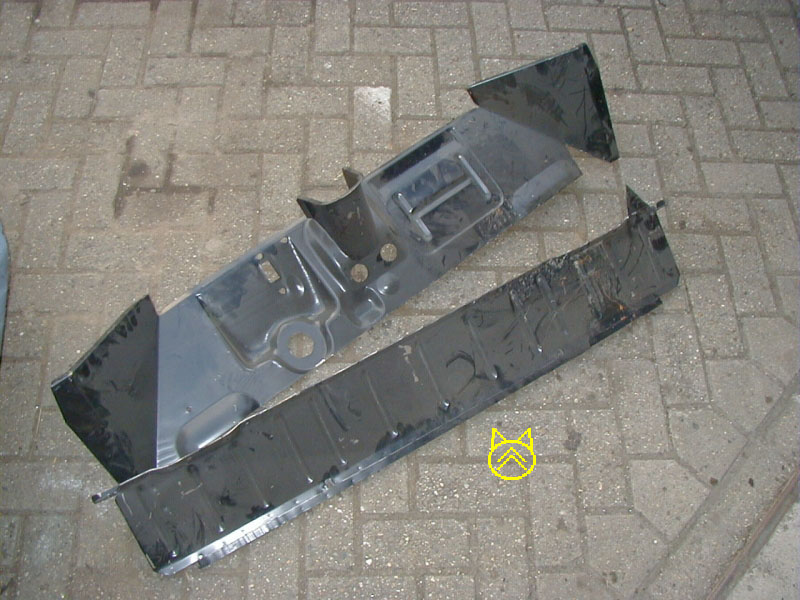

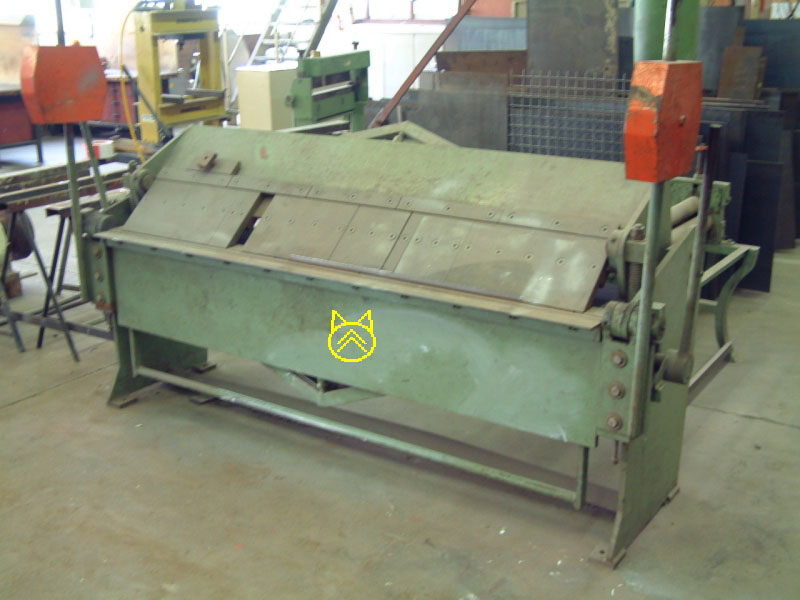

Big machinery gives nice floor repair sections.

Click for full screen Click for full screen

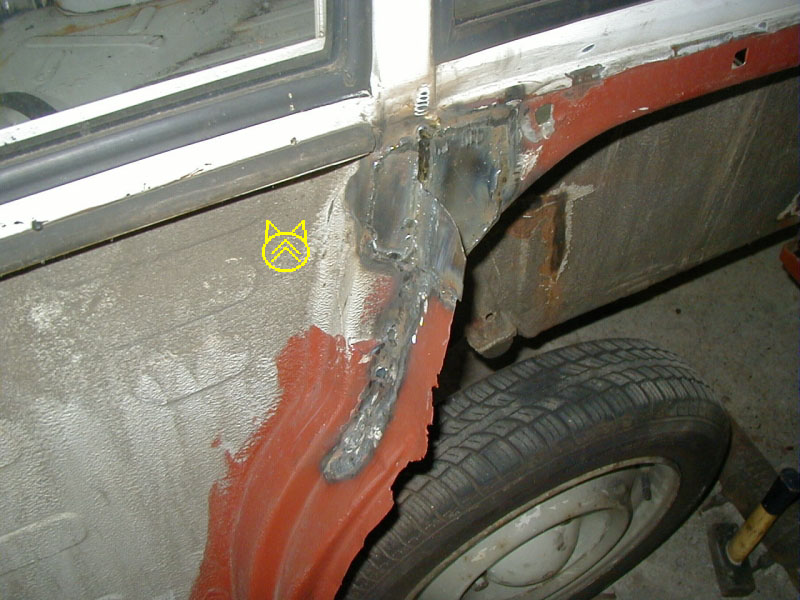

And in goes the sill repair section.

Click for full screen Click for full screen

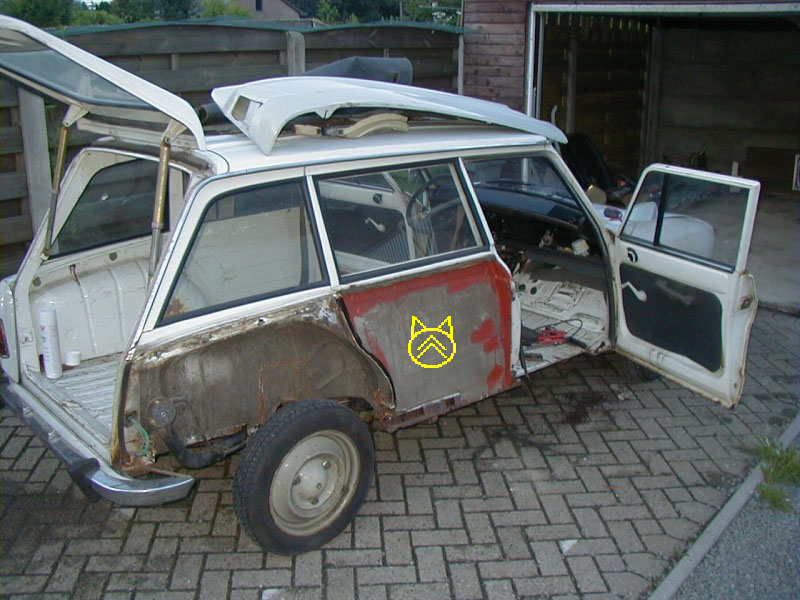

After looking at the rear for a week, it's time for a change of scenery.

Click for full screen Click for full screen
No change here though, even more rust / holes.

Click for full screen

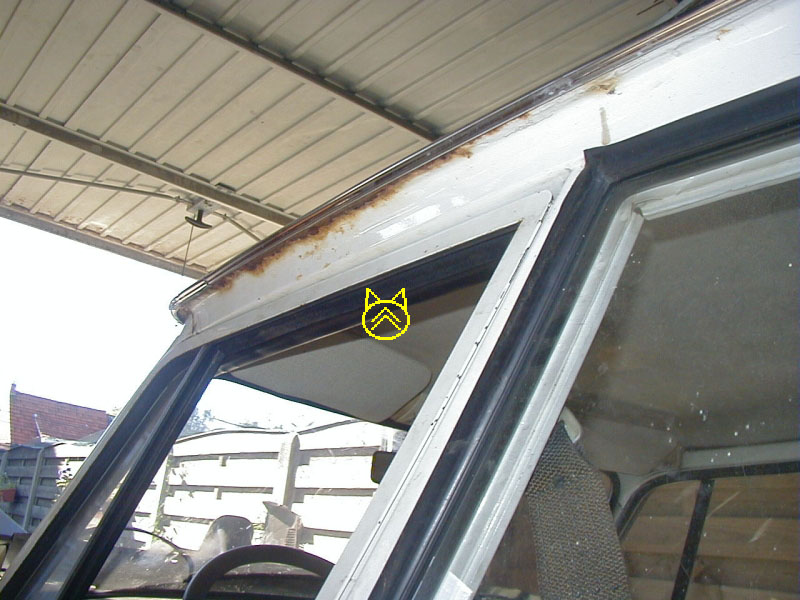

Hmmm, roof is crispy.

Click for full screen Click for full screen

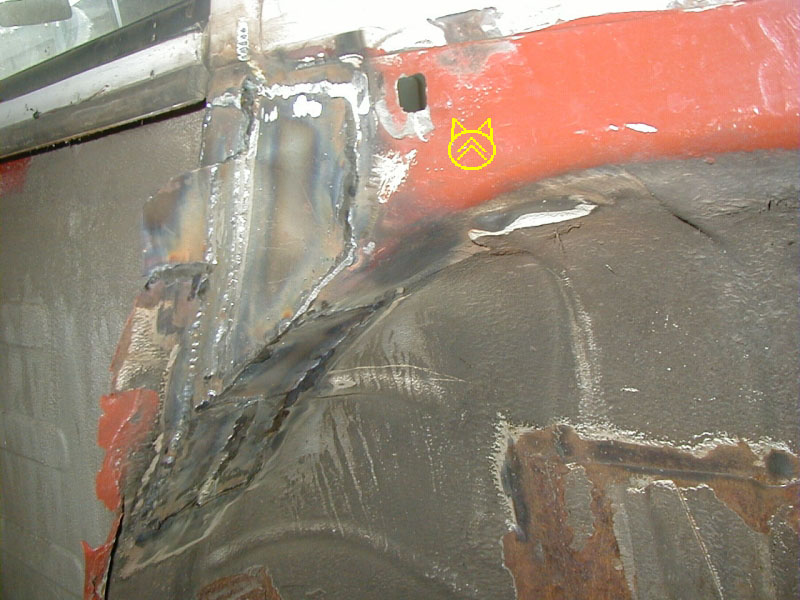

Remove rusty bits and start welding.

Click for full screen Click for full screen
Another section done.

Click for full screen Click for full screen
Second sill finished.

Click for full screen Click for full screen

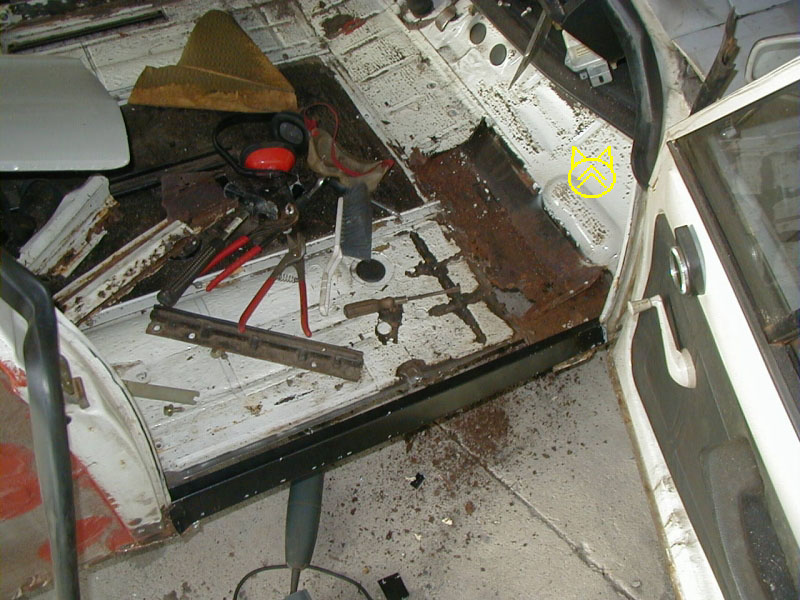

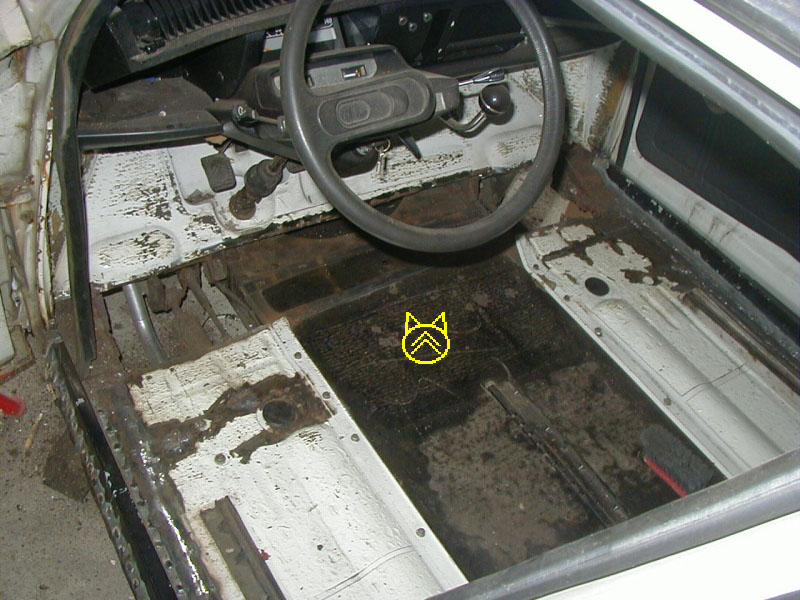

Hmmm, the footwell, it LOOKED quite good, new section ready

Click for full screen Click for full screen
One big hole, nicely filled

Click for full screen Click for full screen
More holes

Click for full screen Click for full screen

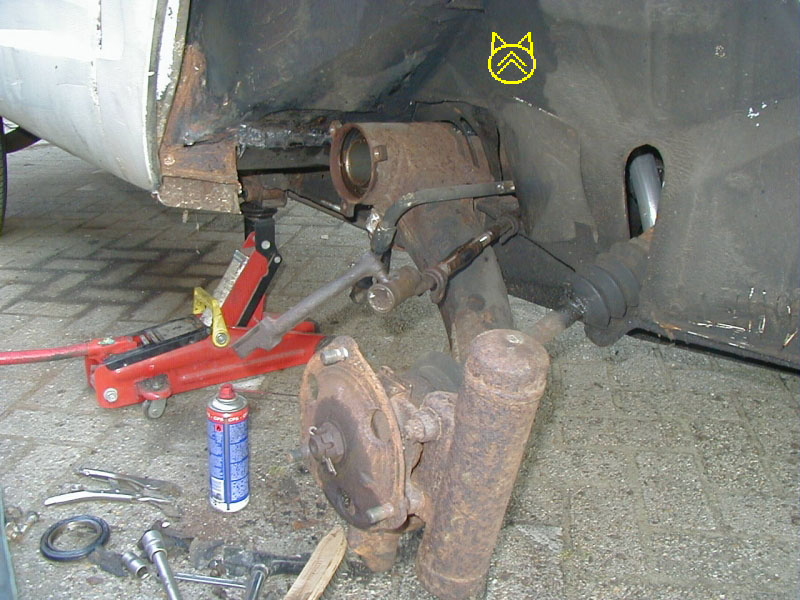

Hole and replacing the suspension arm with seized kingpin, left turned out to be just as bad.

Click for full screen Click for full screen
Nearly ready, and DONE!

Click for full screen Click for full screen
Tested and passed, thanx to Jan!

I'd like to thank the following people who made this project possible and a succes, from wreck to well functioning car in under 3 weeks. First my dad, who did the last bits of welding and general stuff, dad you missed a spot! Then Jan, for helping me out when the car stopped on the way to the test station, and that was a blessing in disguise! To Ron, who offered to help me, but Jan beat you to it. And to Joke, my girlfriend, who did most of the mechanical work on the car. Now off to italy for the 2cv world meeting!

Click for full screen Click for full screen
Lowriding towards Italy

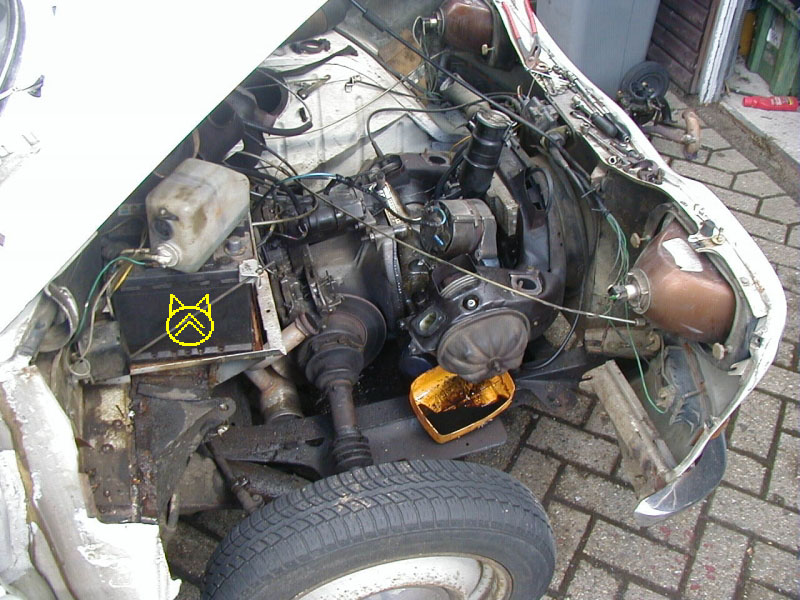

At home things were beginning to go worse. Turns out the right hand side sparkplug has worked loose, threads severly damaged, another head is called for.

Click for full screen Click for full screen

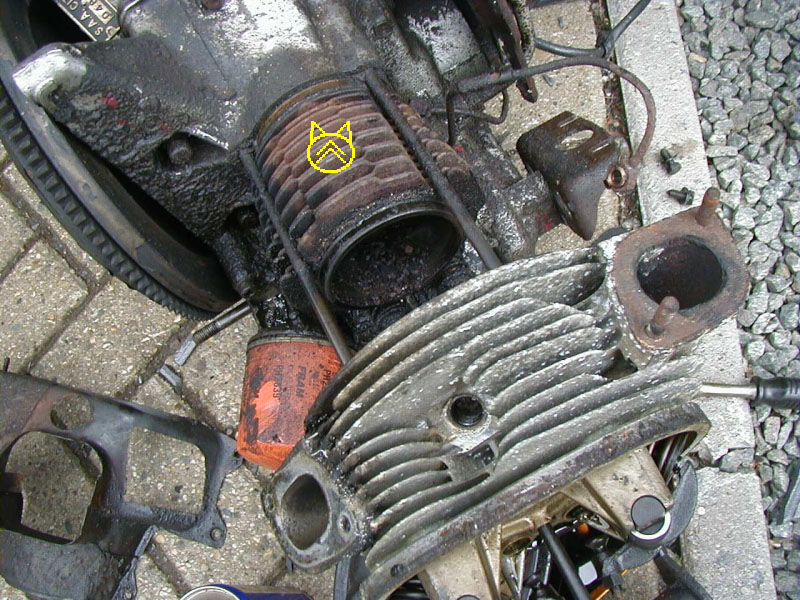

Getting at the head and the donor head.

Click for full screen Click for full screen

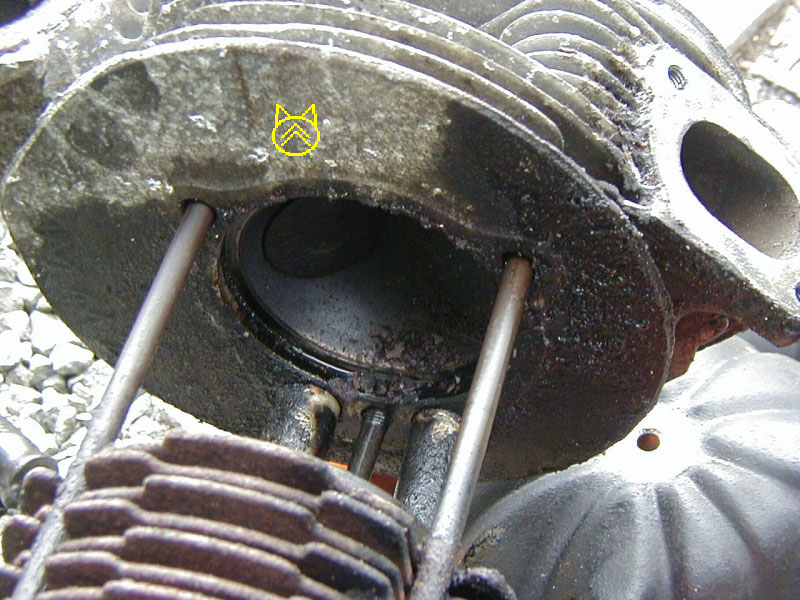

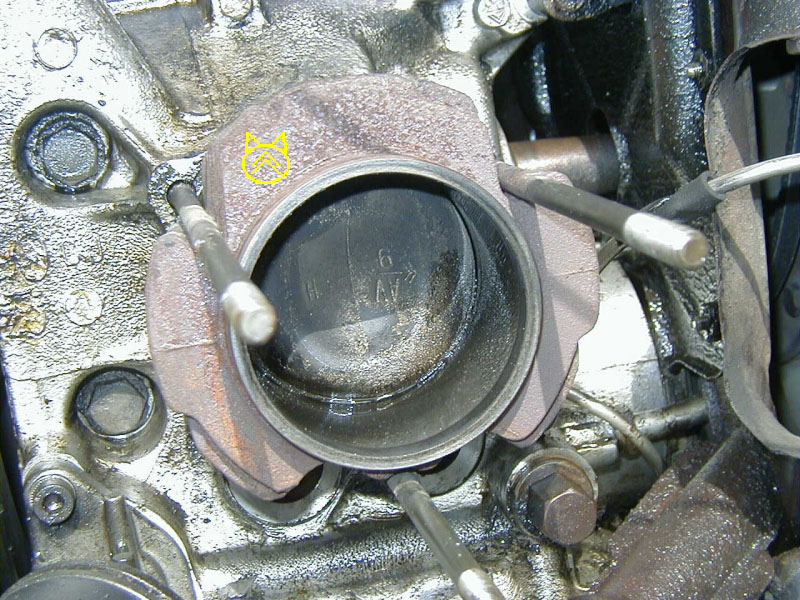

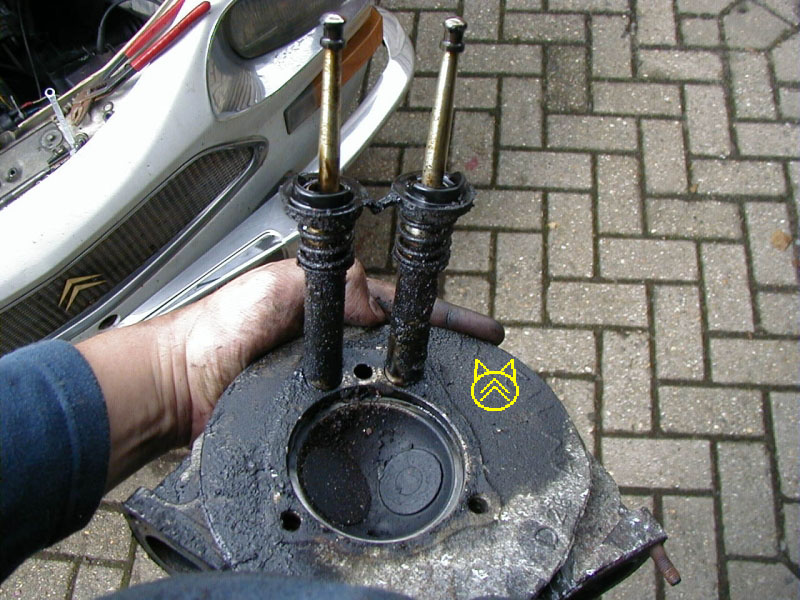

Not looking good, this engine stood still for only 2 years.

Click for full screen Click for full screen
Looking much better.

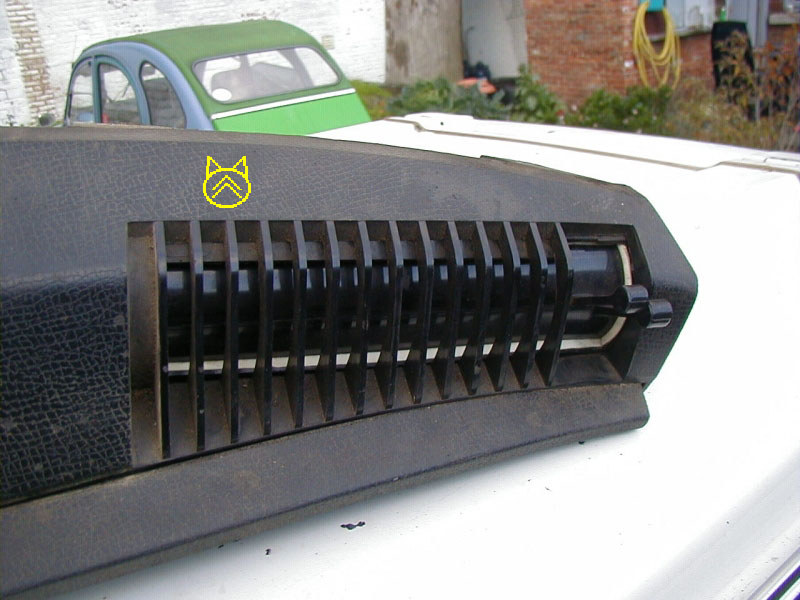

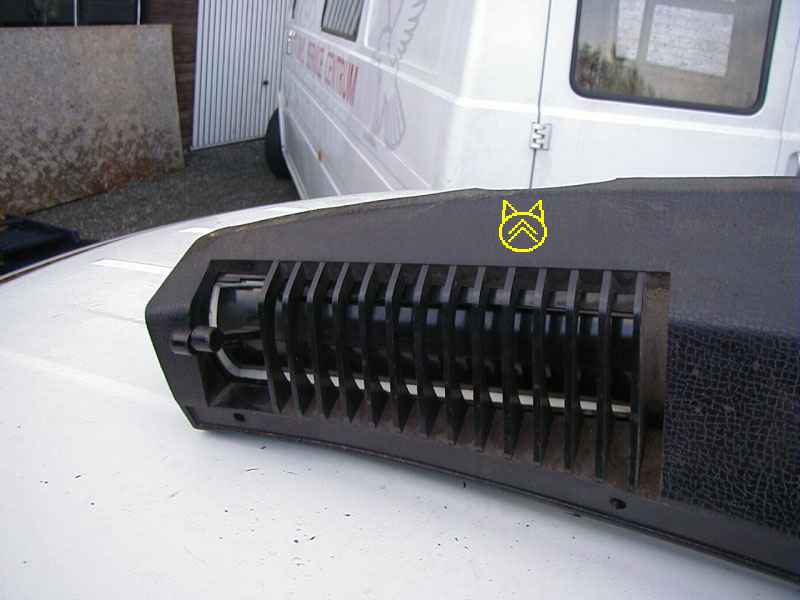

When winter arrived the nice draft coming from the dahs vents turned into a cold storm blowing through the car! Some work was called for.

Click for full screen Click for full screen

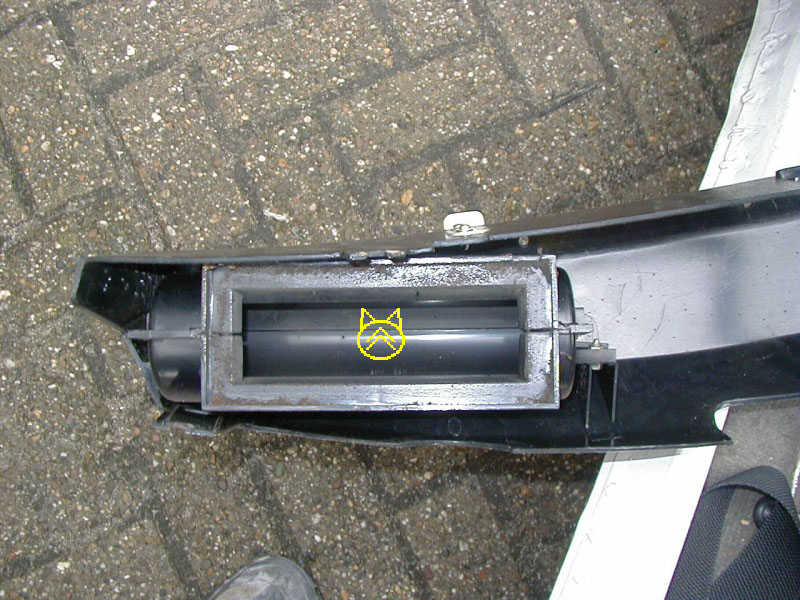

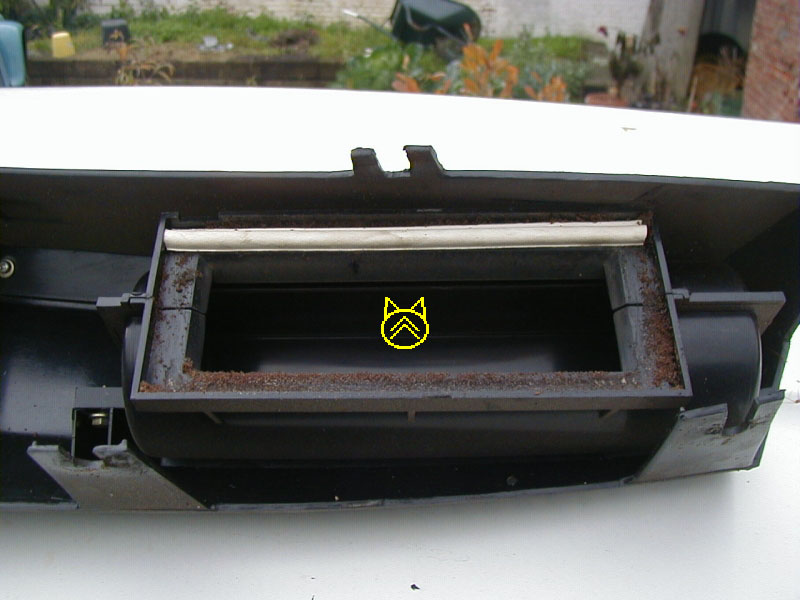

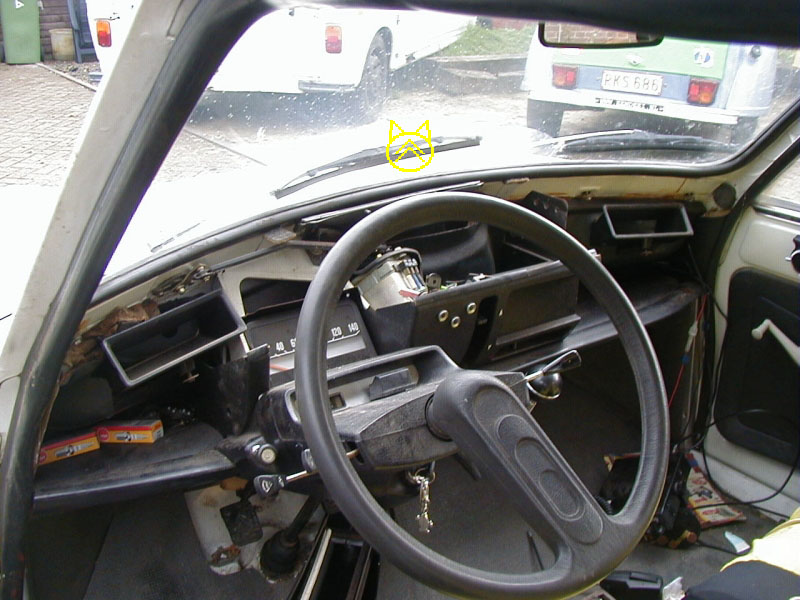

Taking out the dash and removing the old foam

Click for full screen Click for full screen

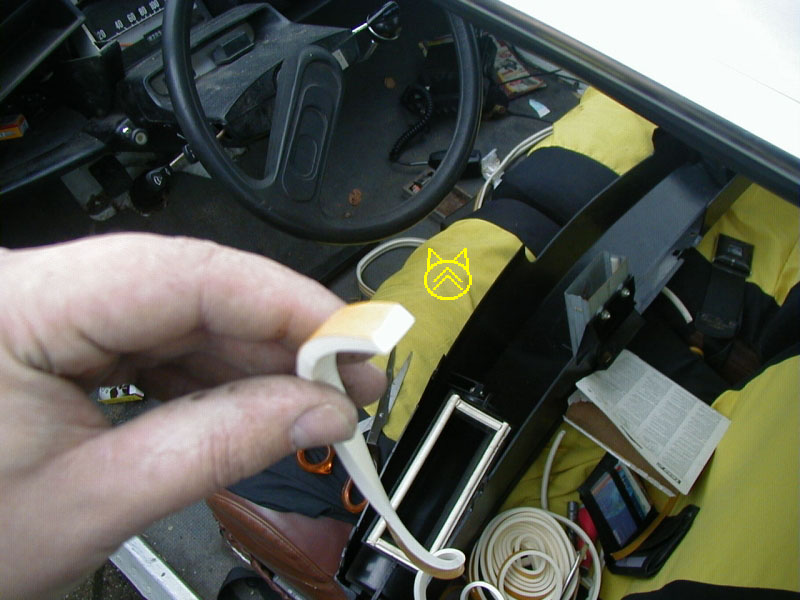

Fitting self adhesive P shaped hollow rubber.

Click for full screen Click for full screen

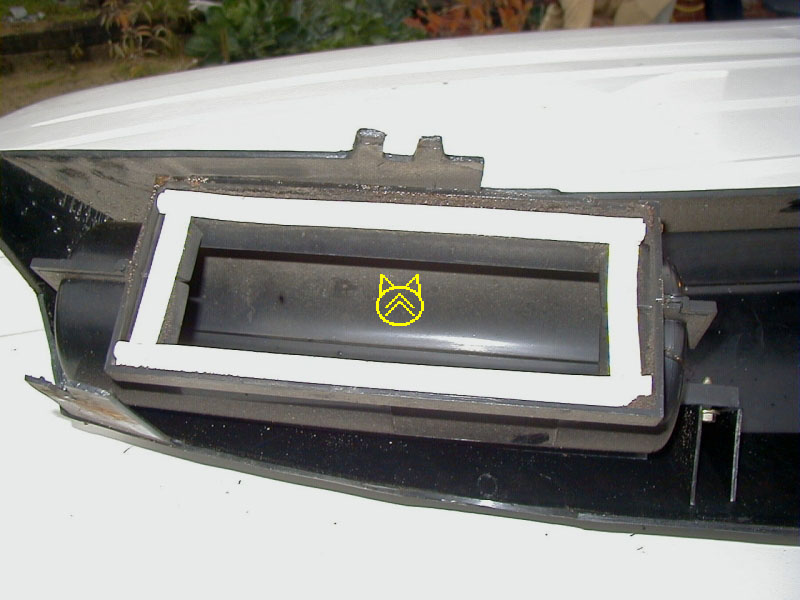

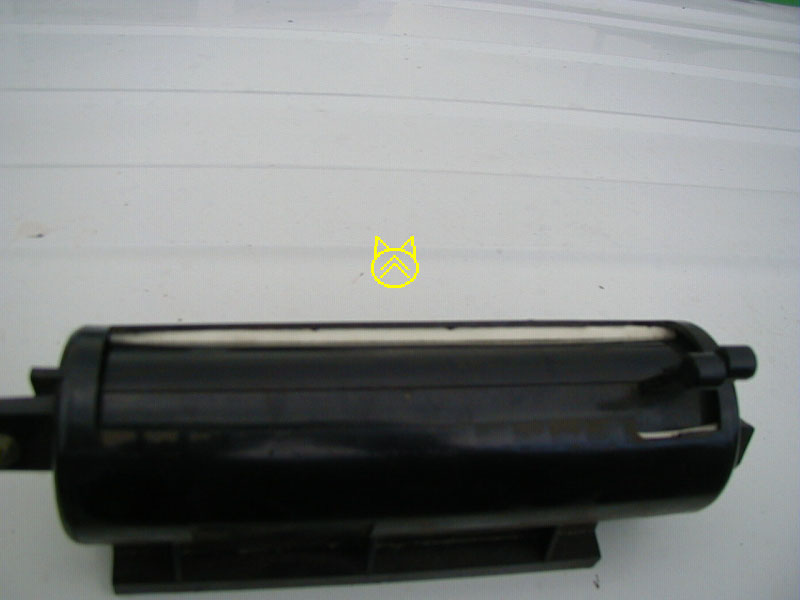

Fitting smooth top self adhesive square foam rubber between the outside and the moving bits of the outlet.

Click for full screen Click for full screen
All done

Click for full screen

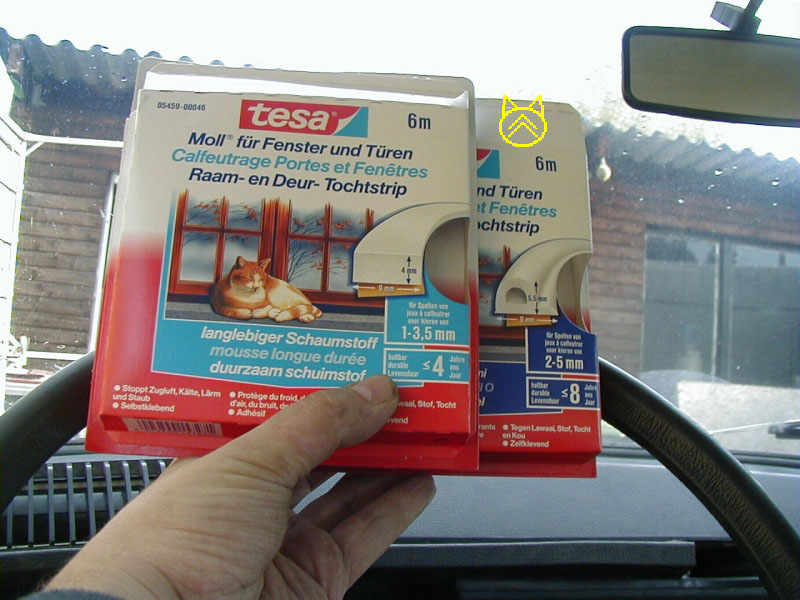

Products used

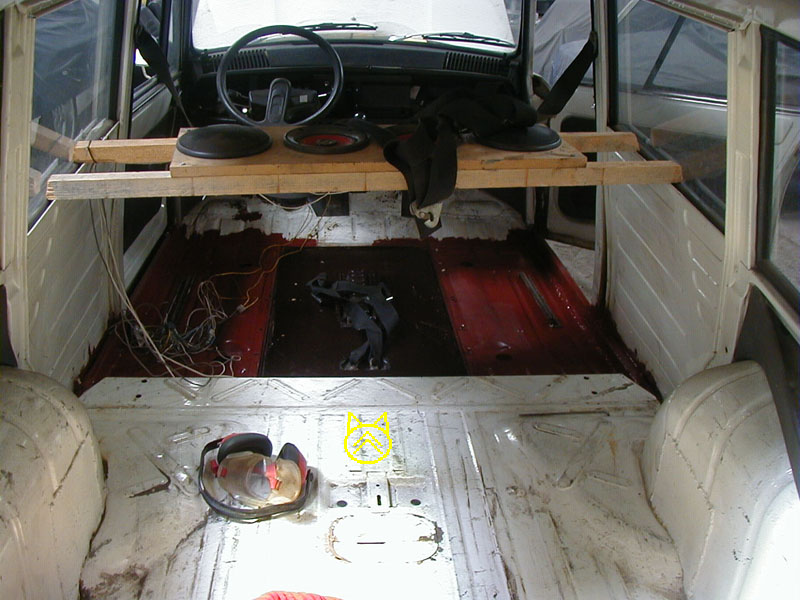

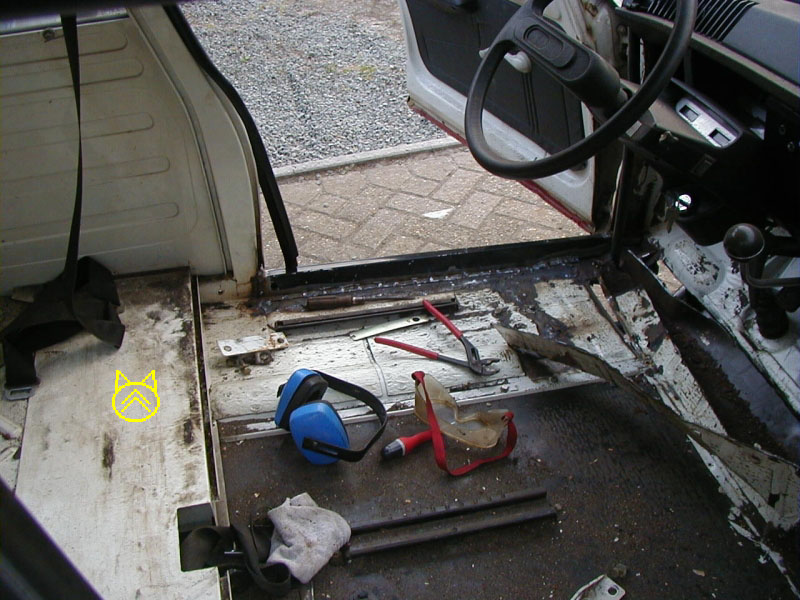

After a year I wasn't satisified with the floors anymore. I had chosen to repair the floors earlier (not having any floors available when I needed them made this decision a lot easier). But I had dicovered other weak points on the original floors and now I wanted to do the job properly. New floors were bought and welded in:

Click for full screen Click for full screen

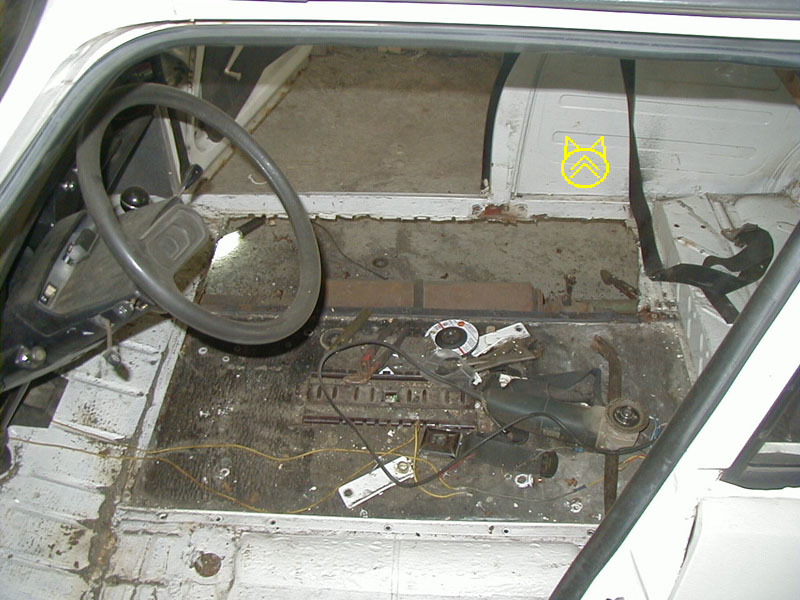

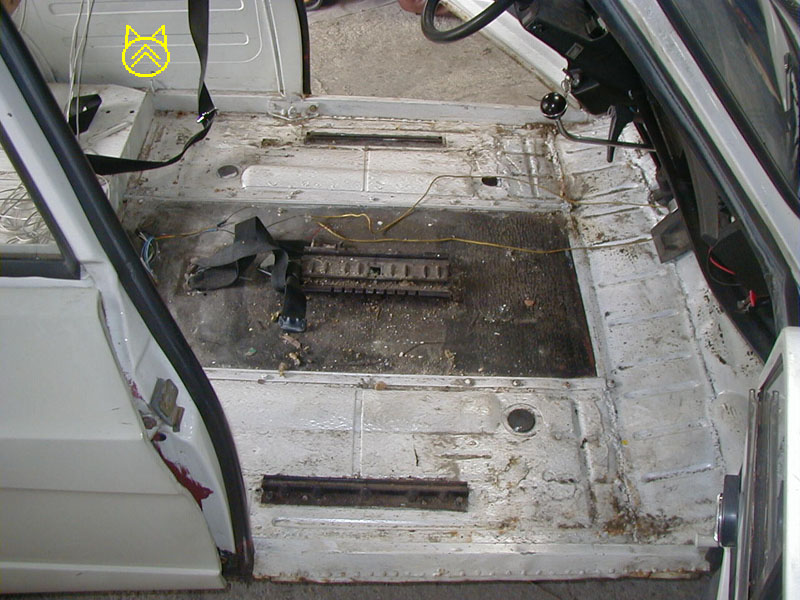

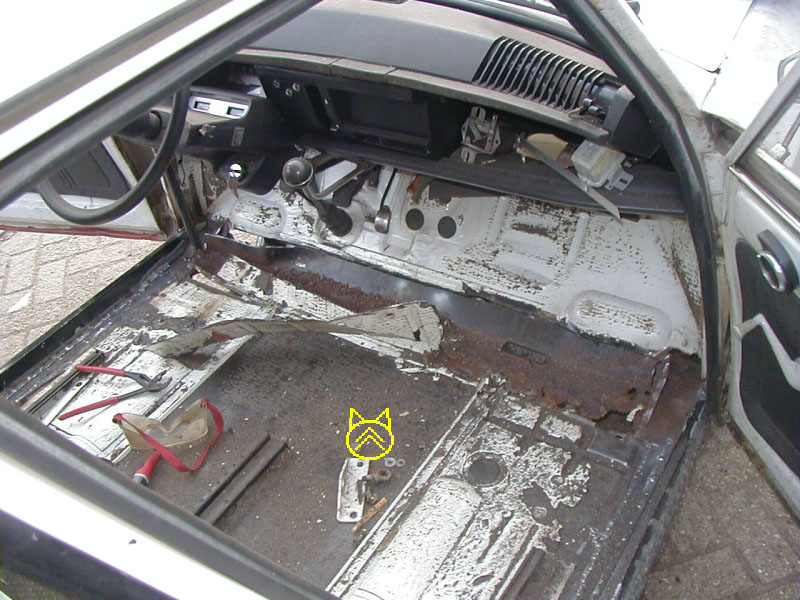

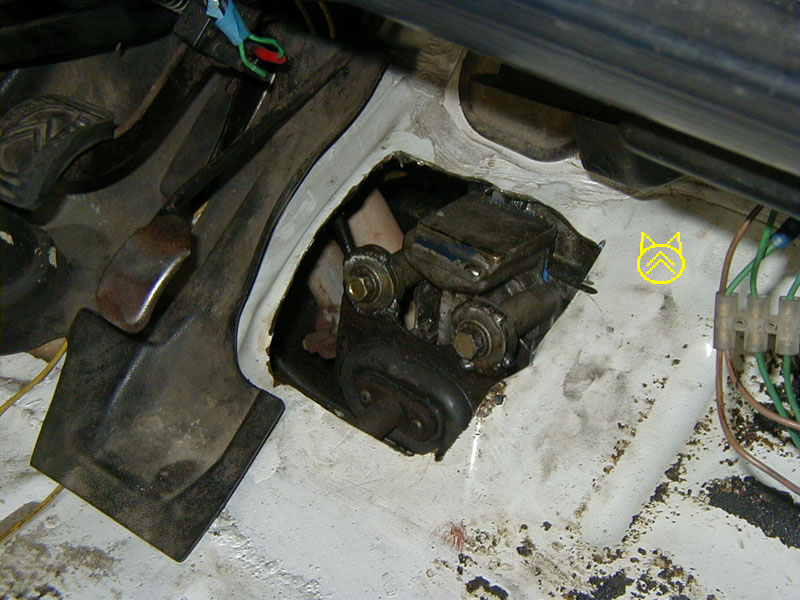

Original (repaired) floors and hole for the rear gearbox mount.

Click for full screen Click for full screen
Right floor comes out and a bit of sill repairing.

Click for full screen Click for full screen

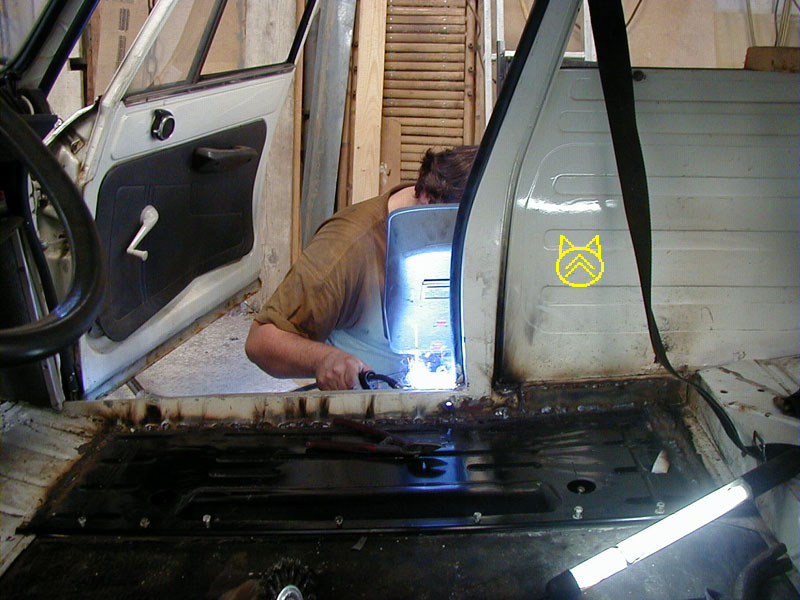

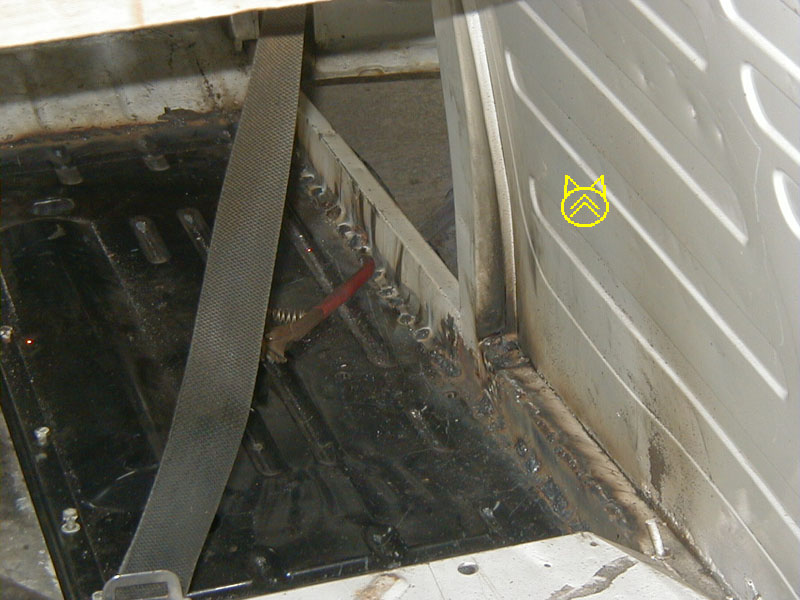

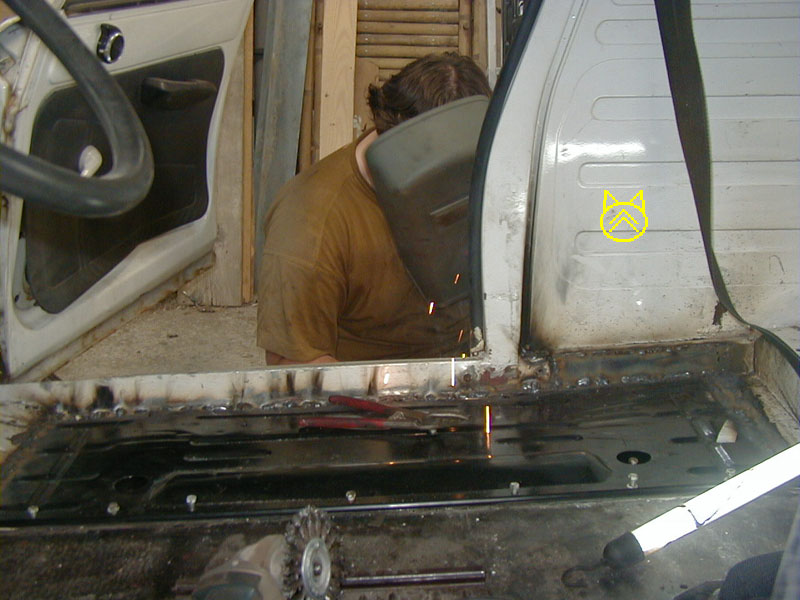

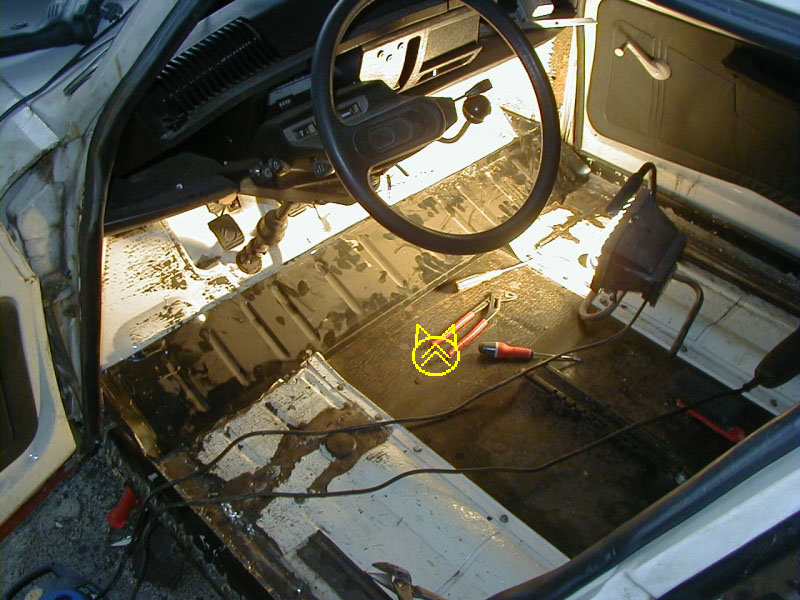

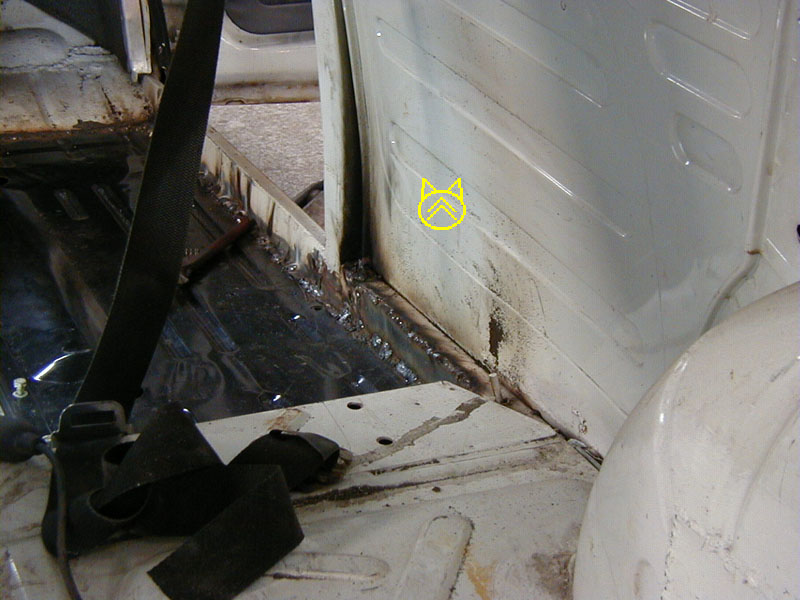

Floor being welded in.

Click for full screen Click for full screen
Nearly done.

Click for full screen Click for full screen
Both floors repaired.

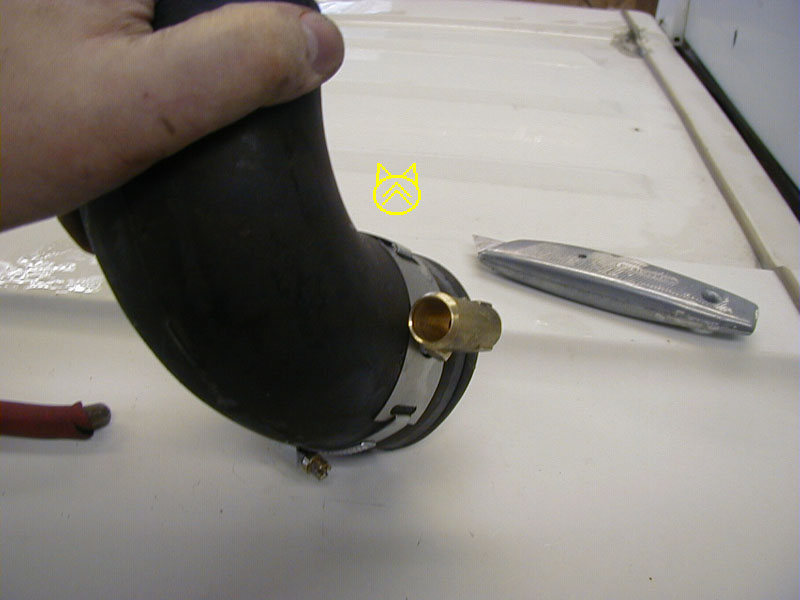

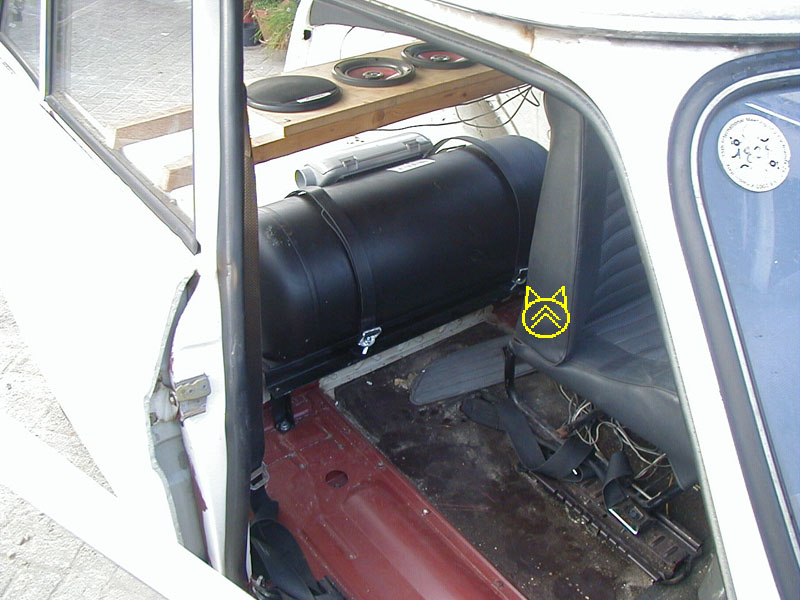

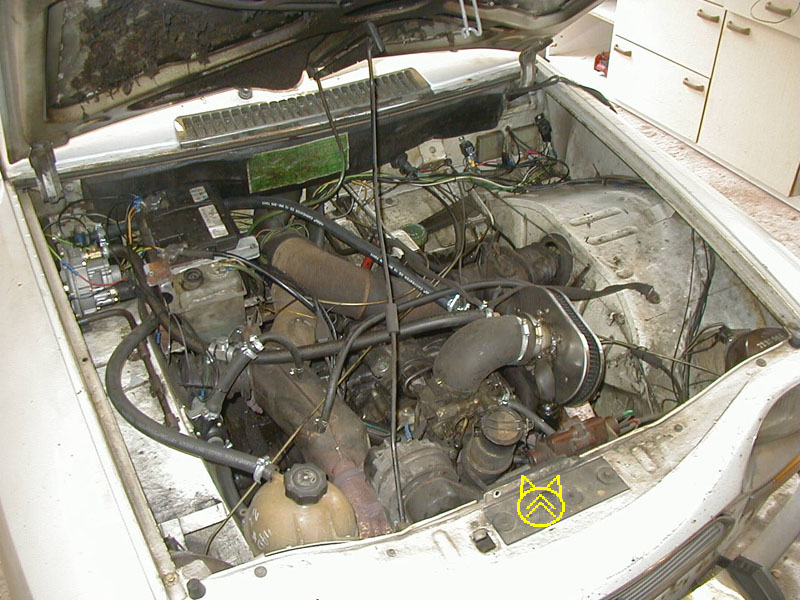

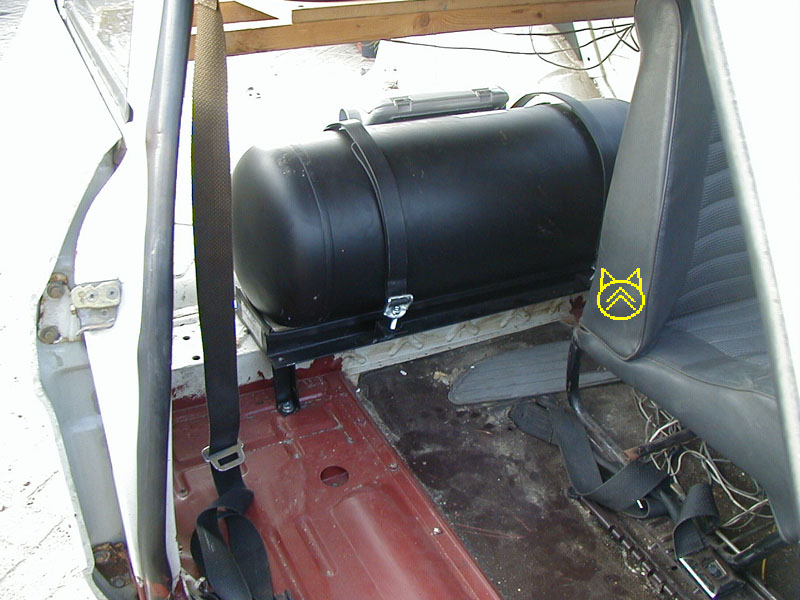

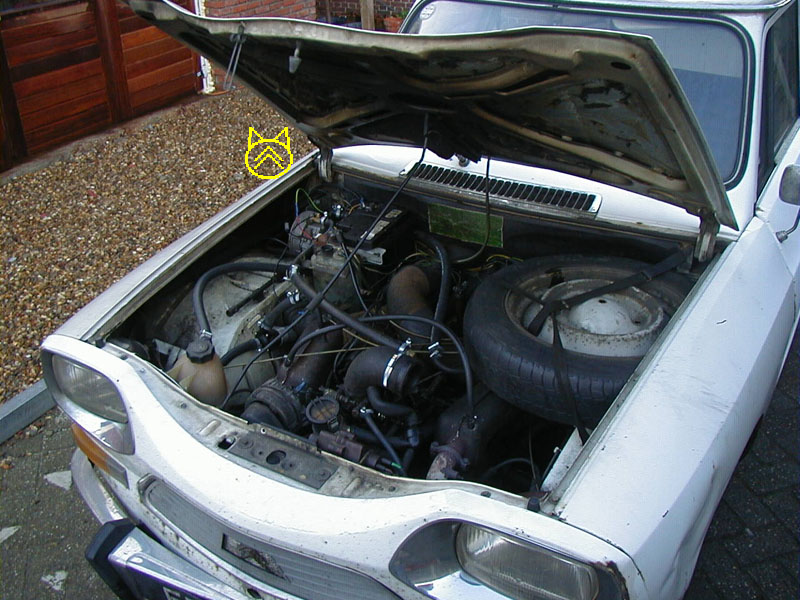

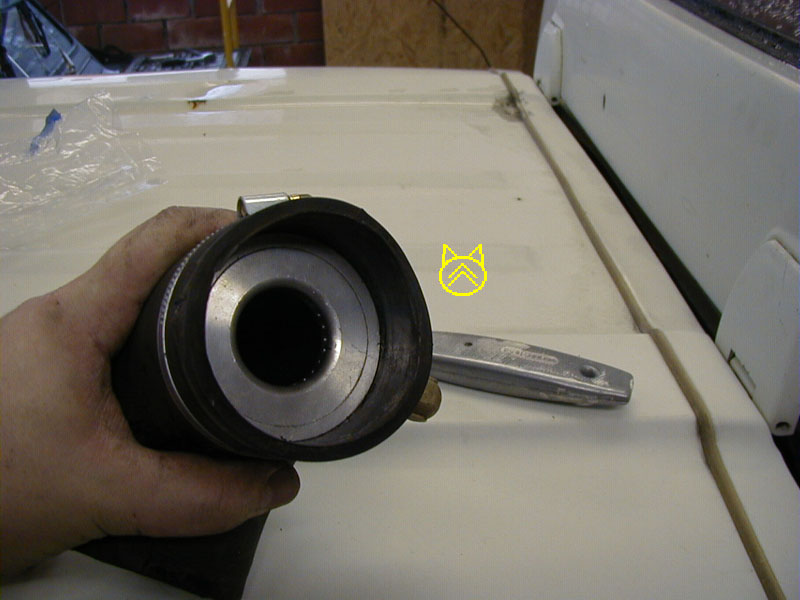

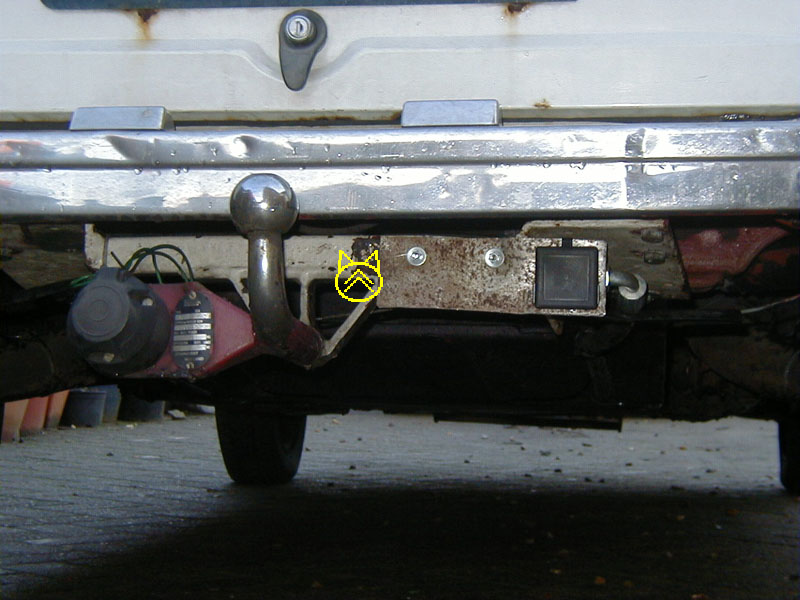

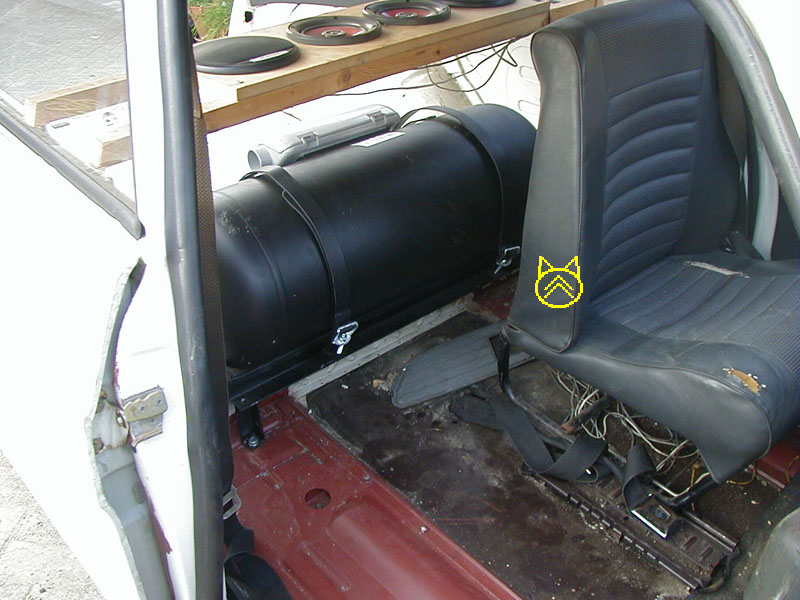

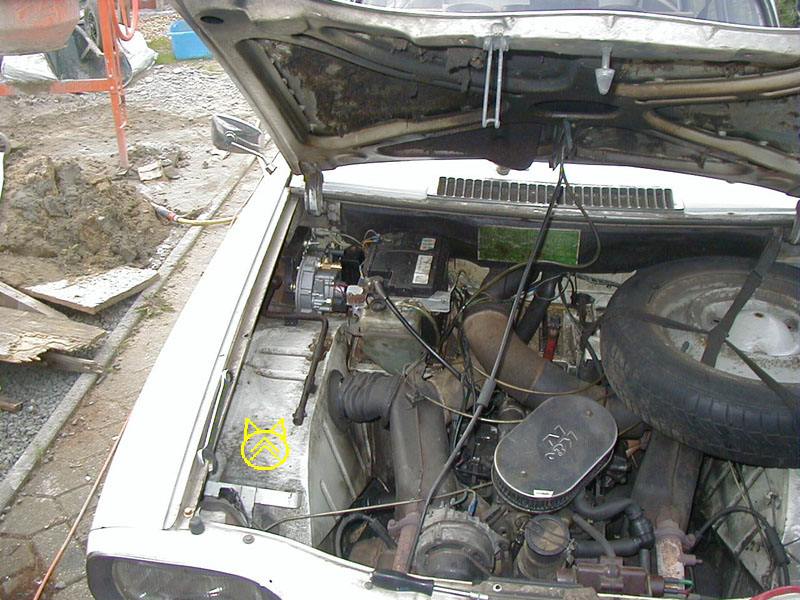

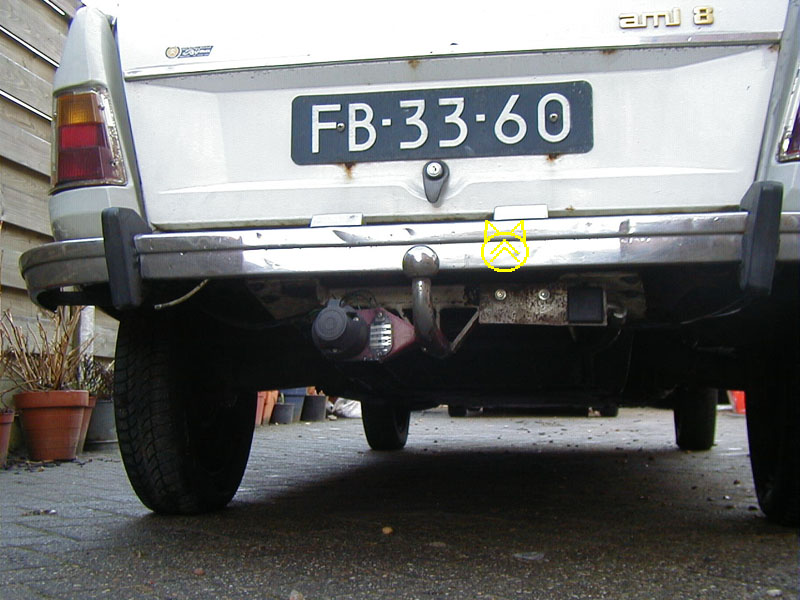

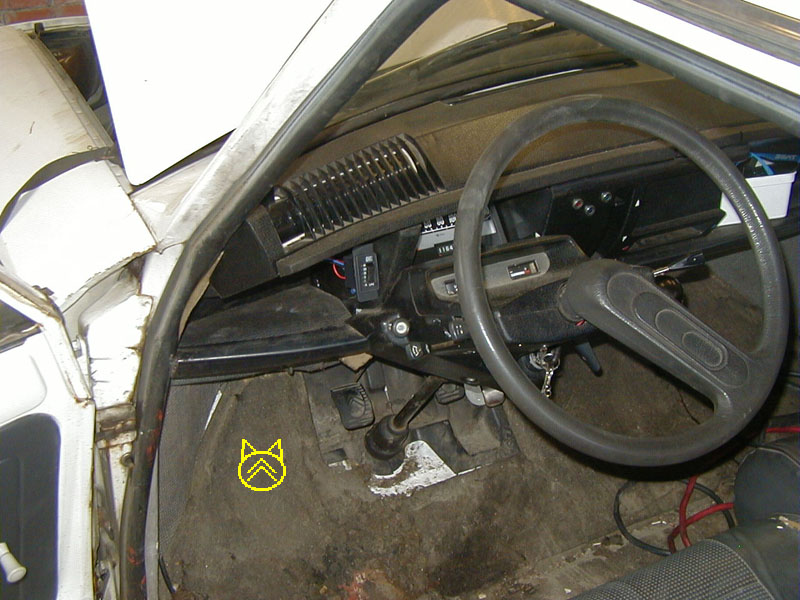

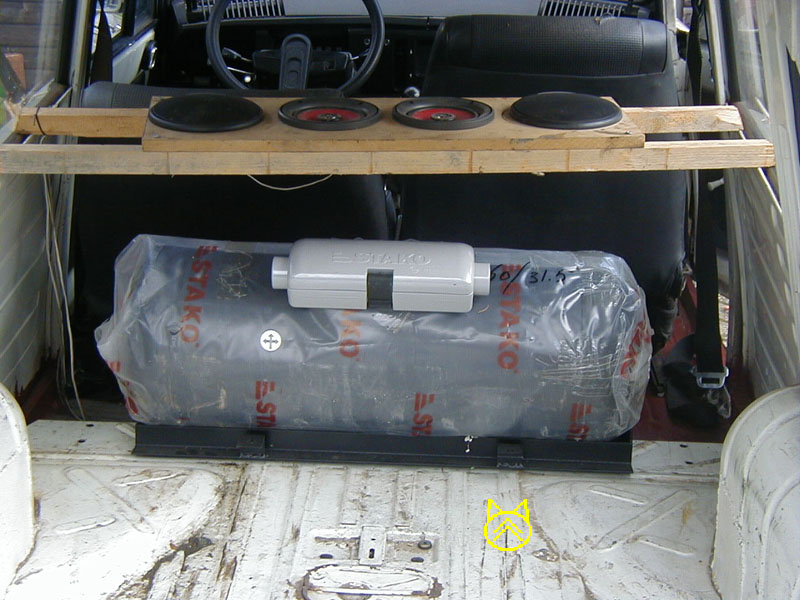

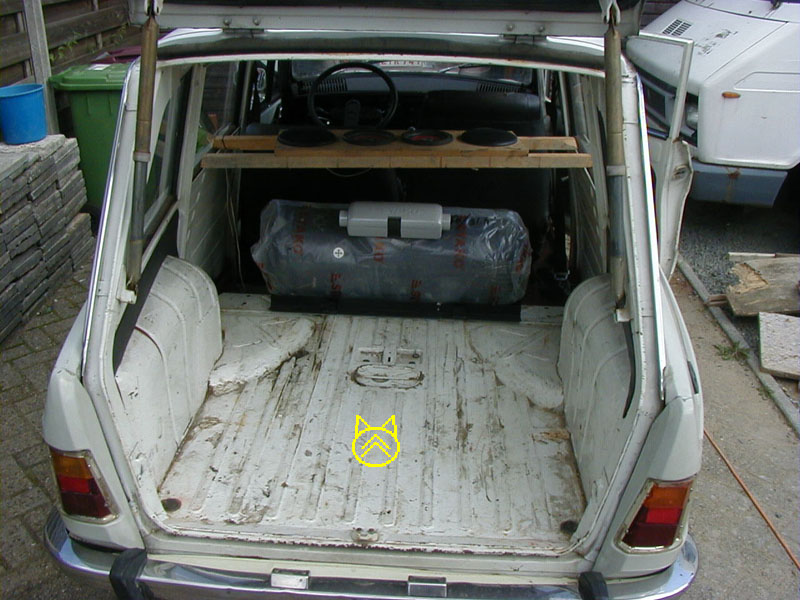

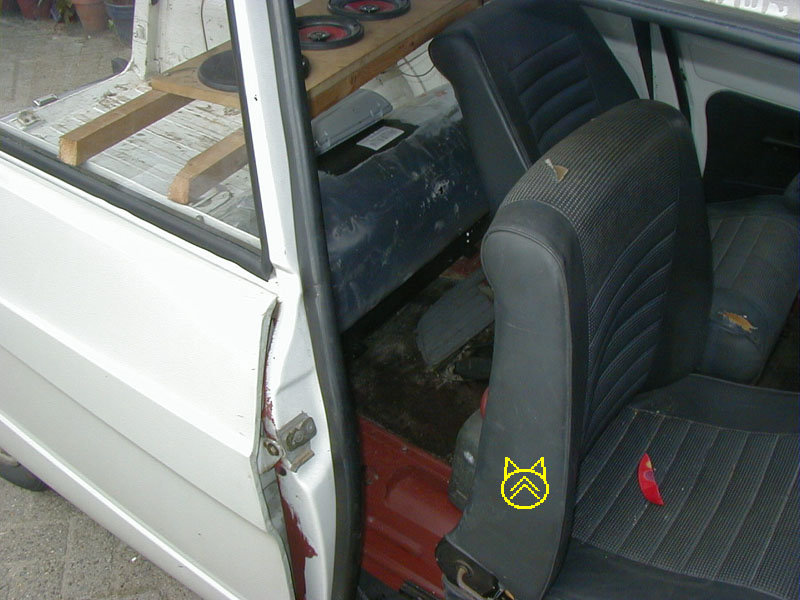

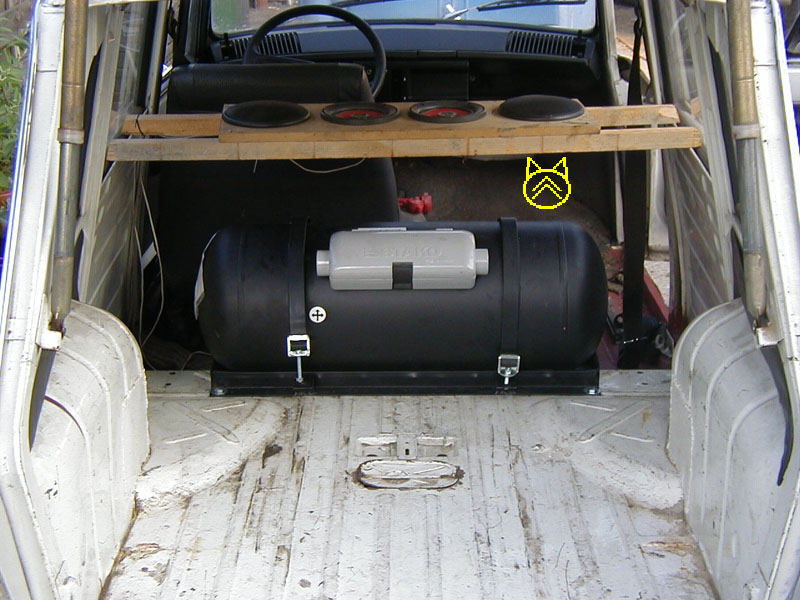

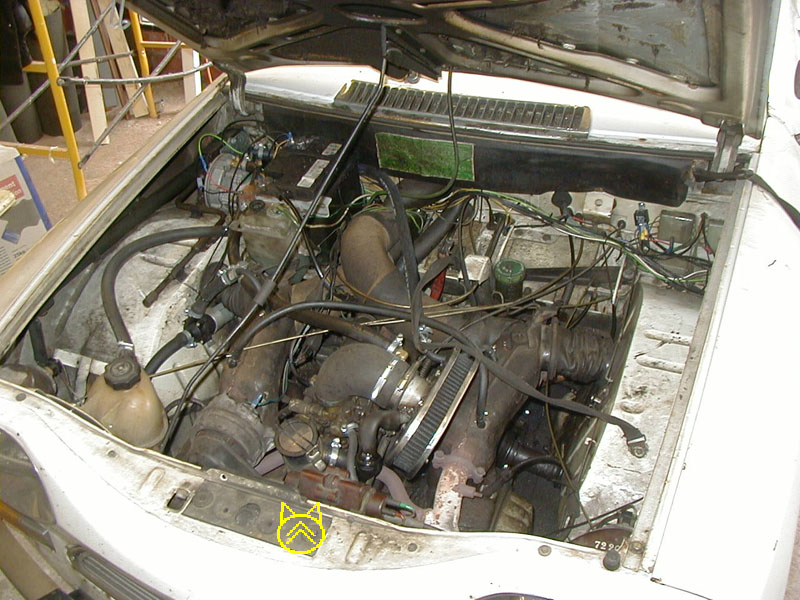

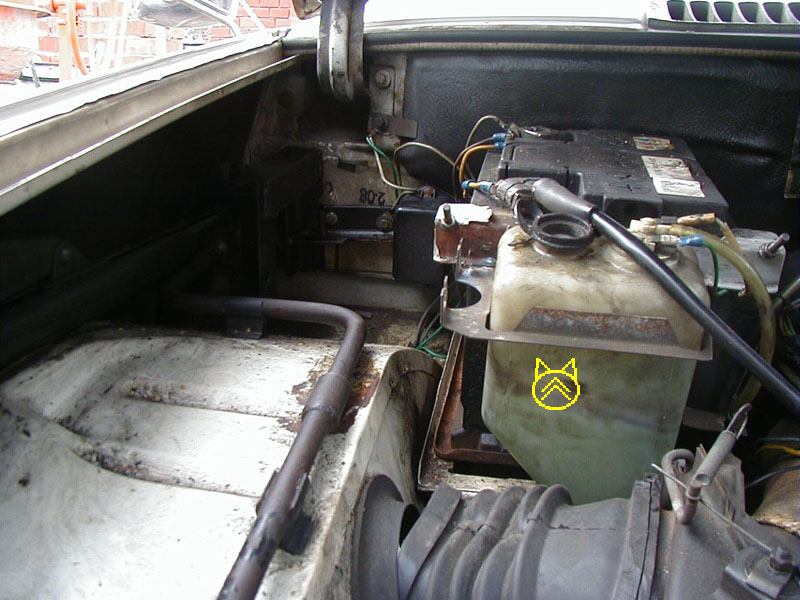

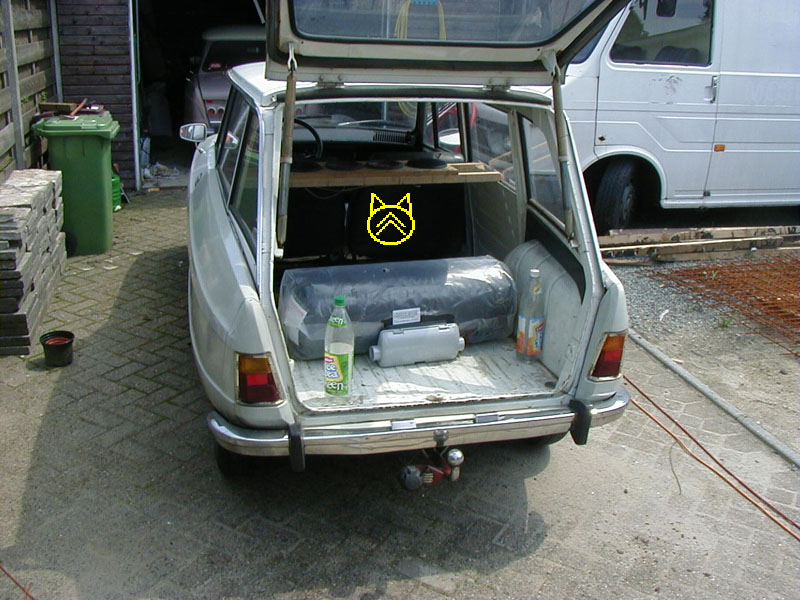

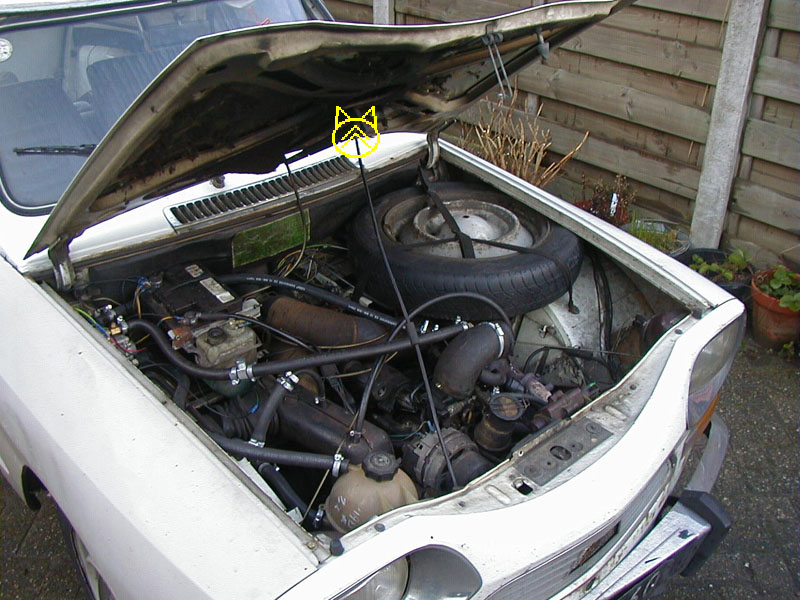

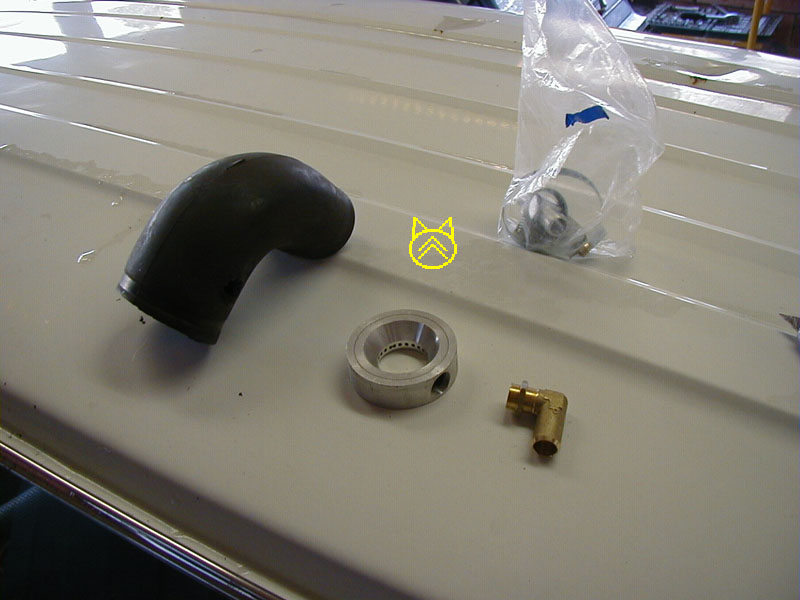

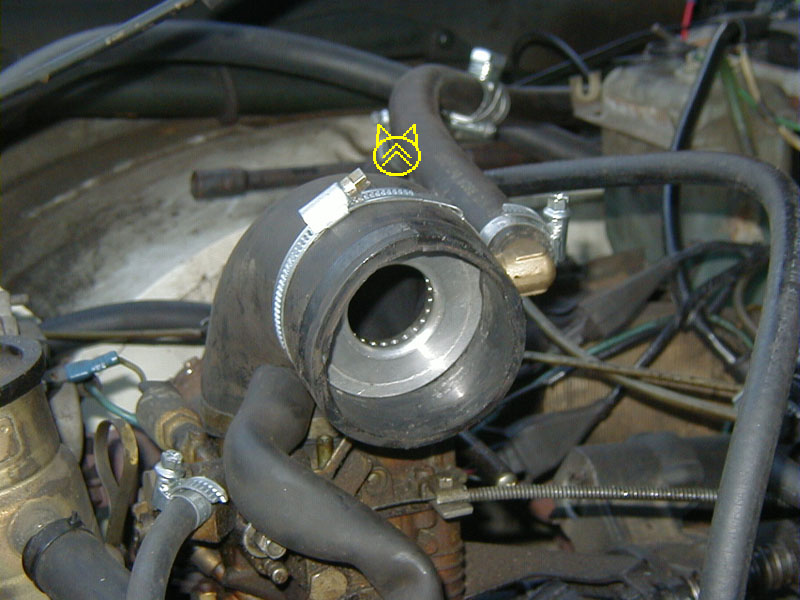

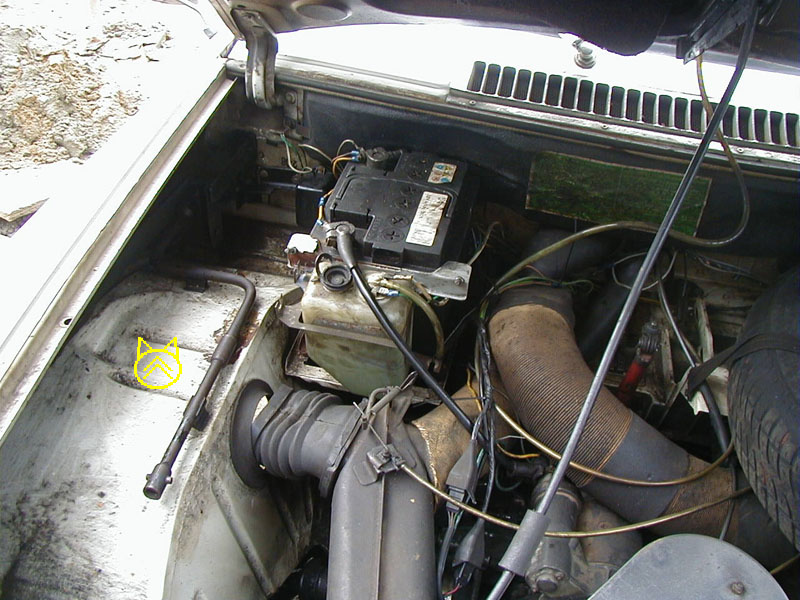

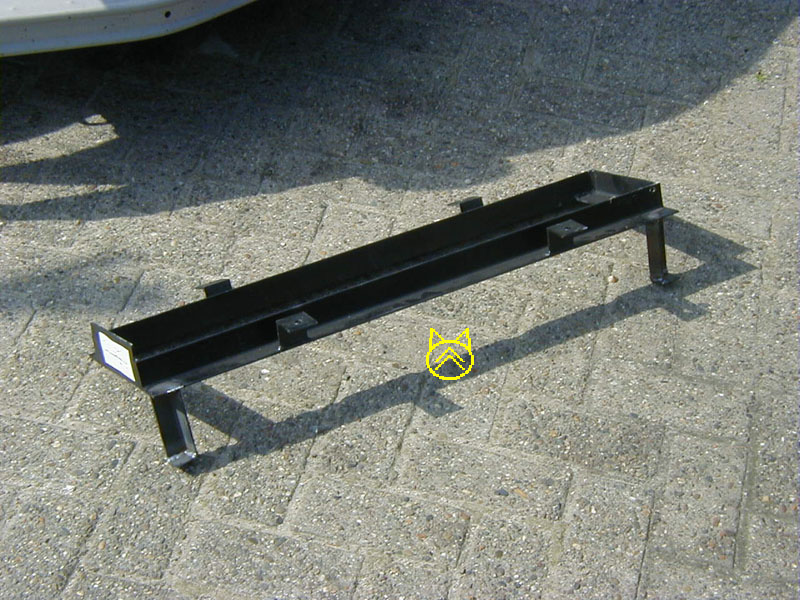

When one drives a car for 50.000km anually, LPG becomes and interesting option:

Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen

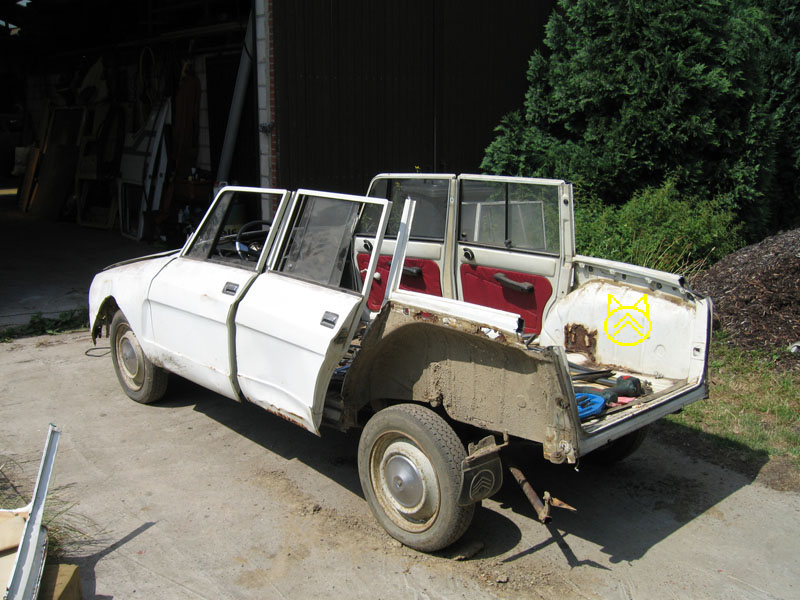

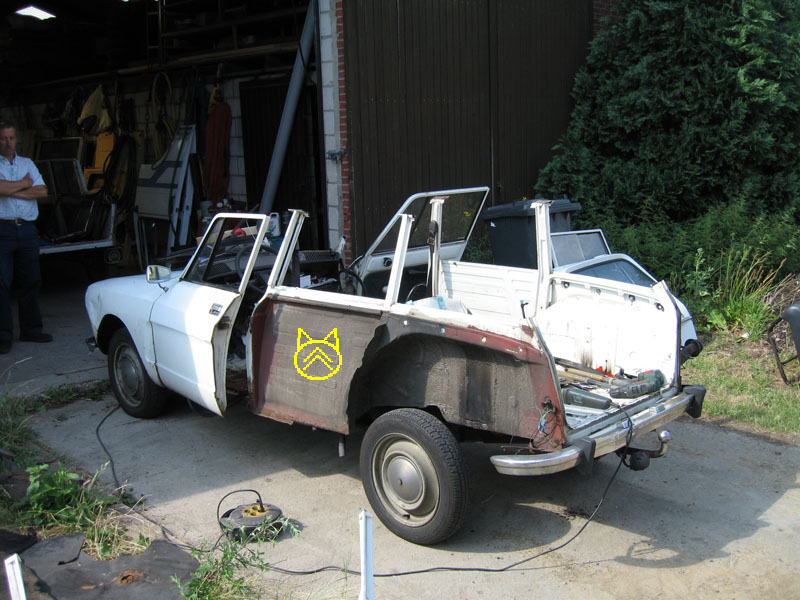

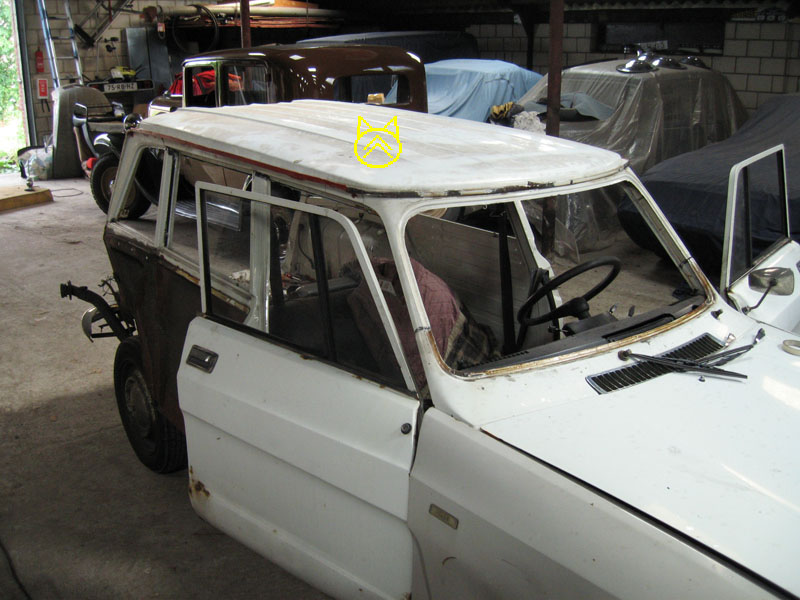

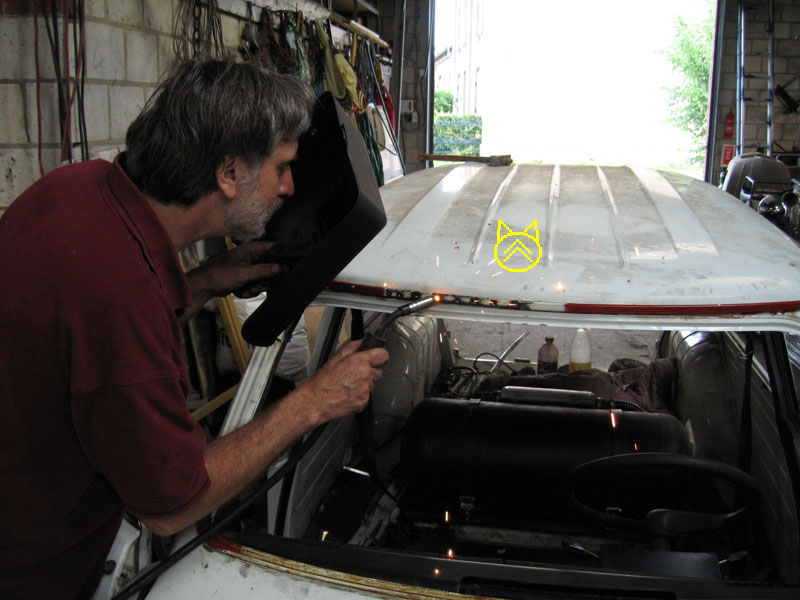

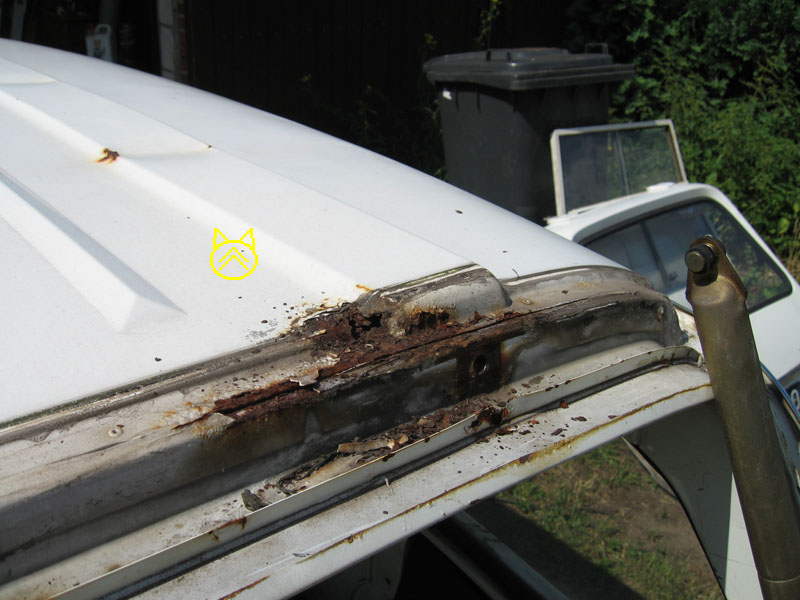

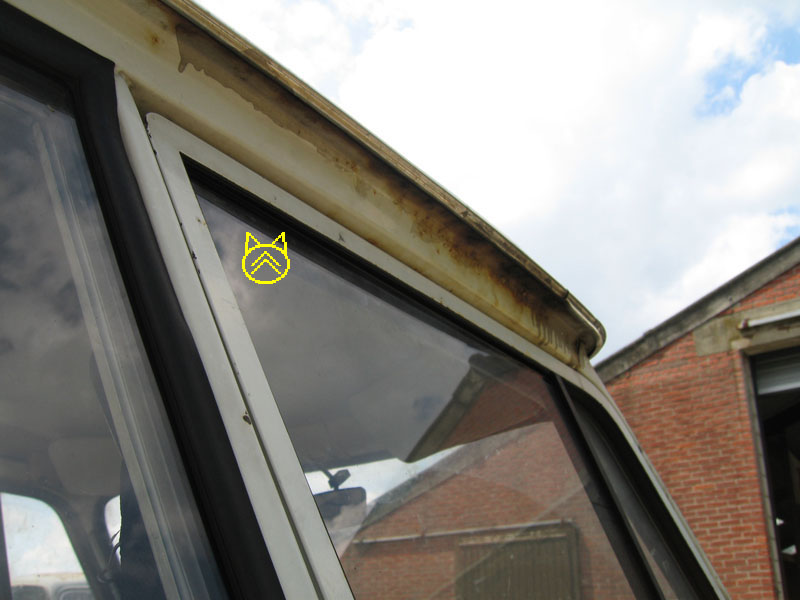

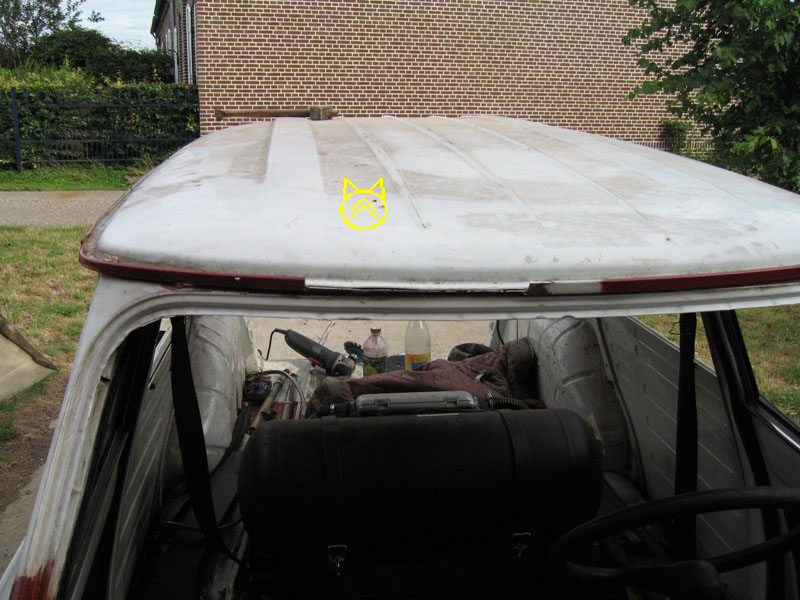

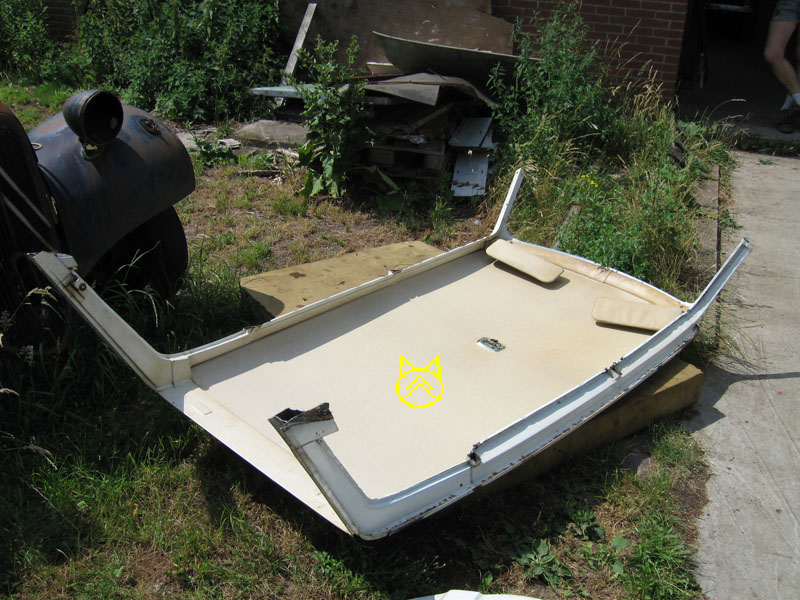

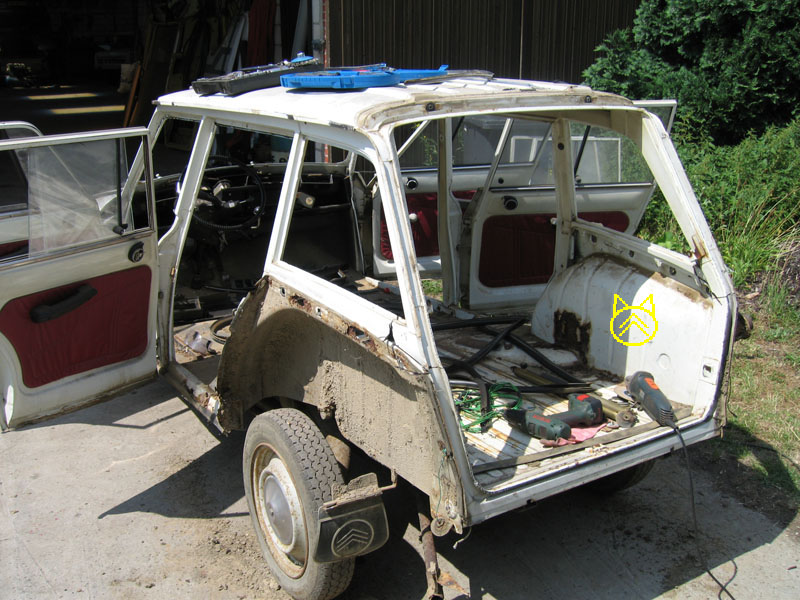

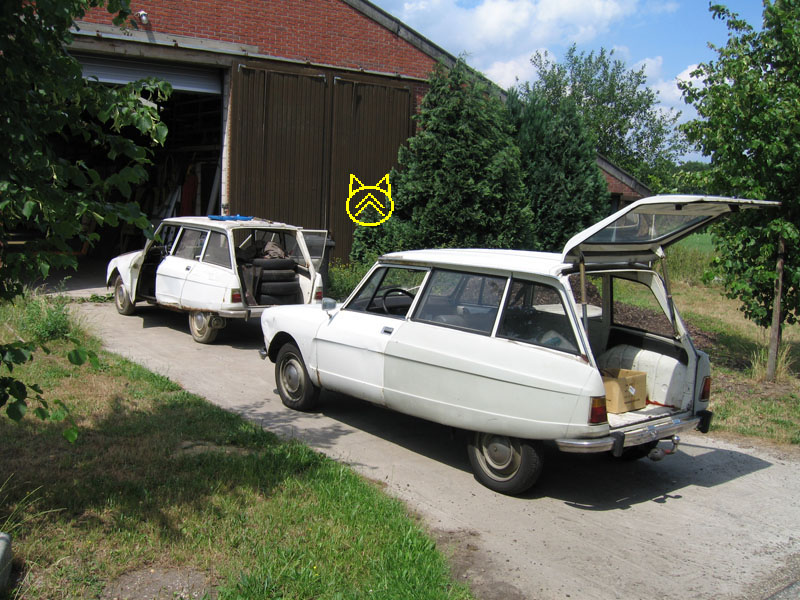

It was clear from the beginning, when i bought the car, the roof was rusty! With a donor ami 8 break (good roof, very rusty body) a roof transplant was done.

Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen Click for full screen

For more info on the Ami Service check out the Ami Service History
