Citroën 2cv AZU 1955

© Copyright: J.Cats.

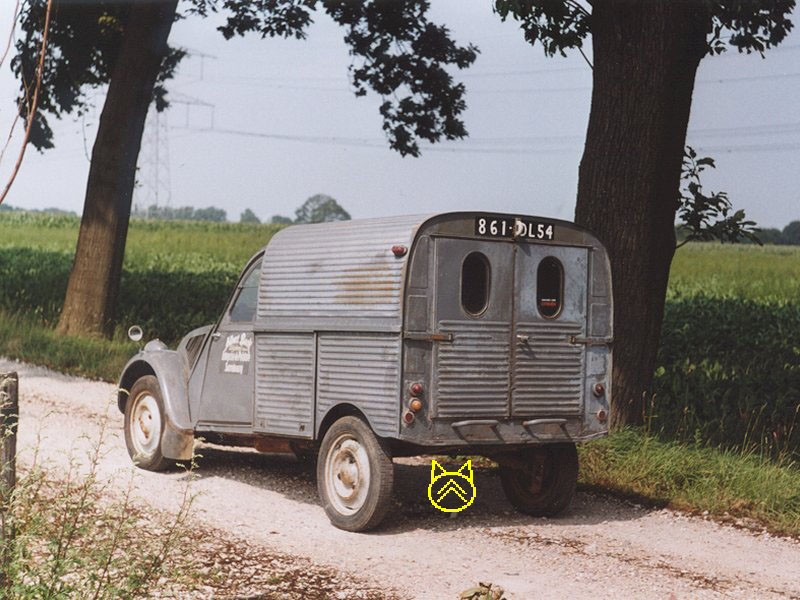

Car type: 2cv AZU
Firewall marking: MER 8 B 5
Production date: February 8th 1955
Serial number: 464876
Serial number: AZUBR 7640
Engine number: AZU 05734837
Bought: June/July 1999

Click for full screen Click for full screen

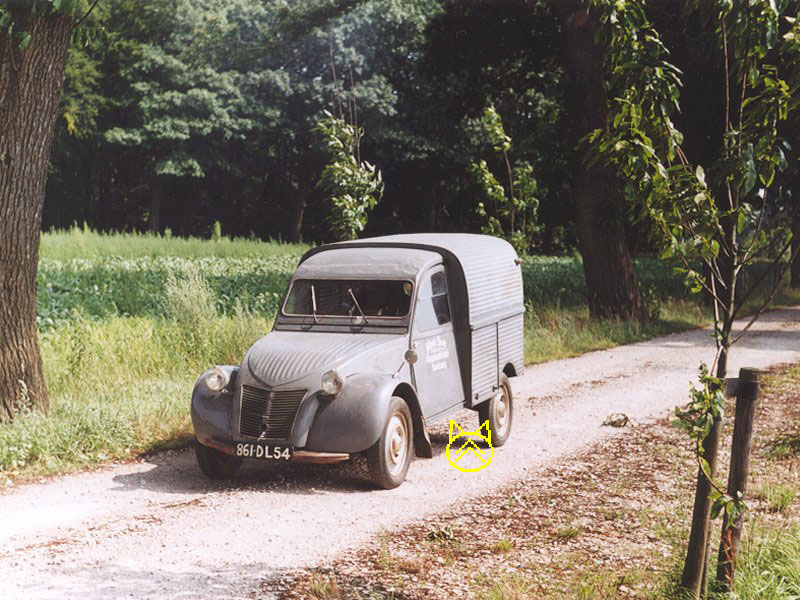

This car is an early AZU.
A = A type Citroën (2cv).
Z = 425cc engine, replacing the 375cc unit.
U = Utilitaire, commercial vehicle.

The car's history:

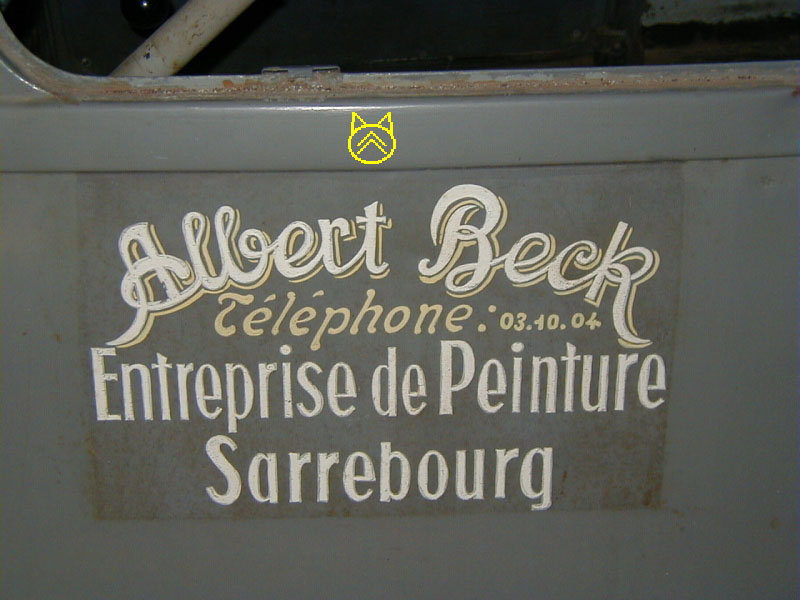

In 1962 the car was bought by a transportation company from the original owner. They used the car as a full member of their fleet of trucks. The company kept the car running up to 1998. During this the front wings were replaced and the left front door was replaced with one from a painters van. The text on this door was reproduced on the right front door. To keep the car running, repairs were made to the floors. The sills and floors are in need of repairs now. In it's 43 years of professional use, the car managed to clock up 124.000 km.

Some interesting characteristics:
  • No light on the speedometer (up to April 1955)
  • Only 1 horn (up to January 1956)
  • 3 piece steel roof with visible seams (up to December 1956)
  • No edge on the front of the luggage compartment (up to December 1956)
  • The ripples continue under the indicators (up to December 1956)
  • Steel brake fluid reservoir (up to May 1957)

Some characteristics it should have but aren't there:
  • Open springs (December 1954 - May 1955)
  • Squared hole for driveshaft in wing (up to April 1956)
I doubt the wings on the car now are original but I'm 100% confident that the springs are original.

When bought the car it was still running. But it wouldn't run very well so the ignition had to be replaced. After removing the fan it was clear that the wiring was very bad. The original isolation had hardened and cracked in many places and some vital connections only had 1 copper wire left. The wiring has been largely replaced now. To make the car decent, the sills and floors have to be replaced. The brakes and steering are working but have to be looked over.

Spring 2003
Thanks to a friend, plans are made to get this car back on the road. Work needed:
  • Replace sills
  • Replace footwell
  • Replace floors
  • Rebuilt front brakes
  • Rebuilt rear brakes
  • Replace master cylinder and all hoses
  • Finish wiring and replace battery
  • Fit new tyres
  • Replace the exhaust
  • Rebuilt the front axle
  • General service

Click for full screen Click for full screen

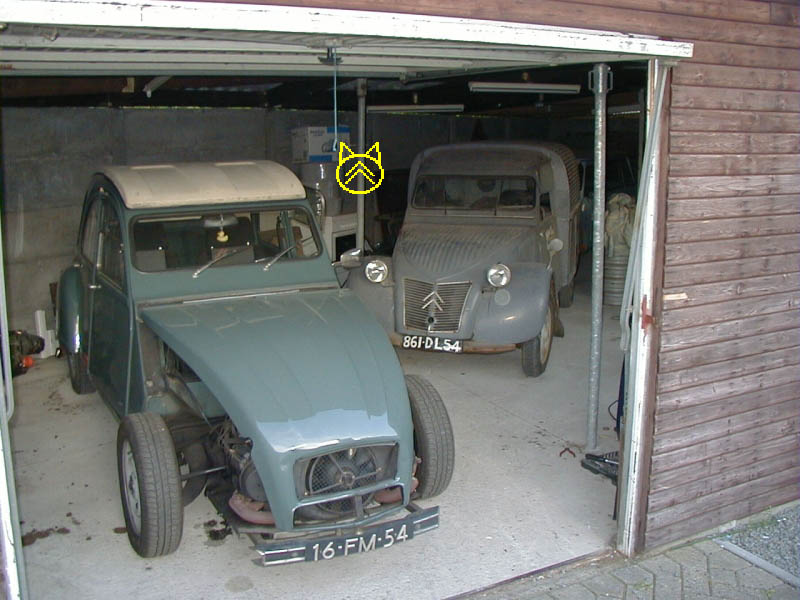

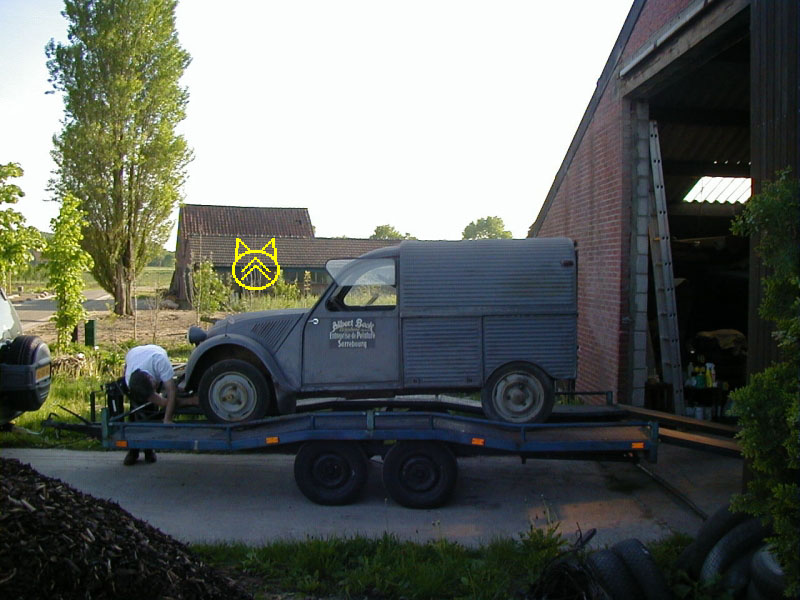

Transport to the workshop

Click for full screen Click for full screen

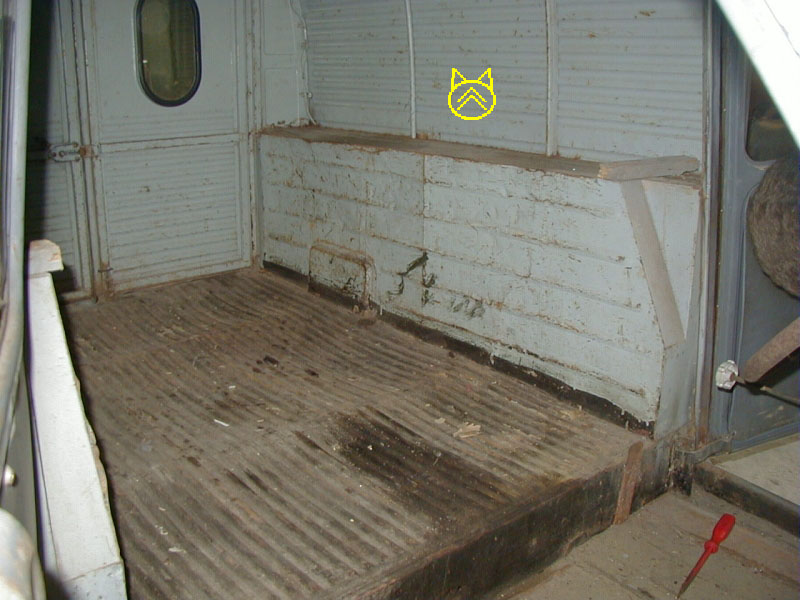

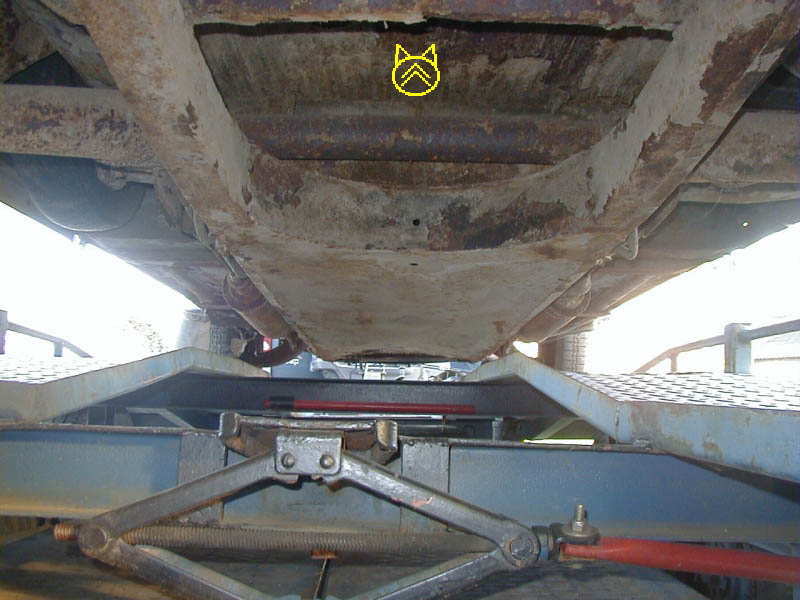

Lots of surface rust but no holes

Click for full screen Click for full screen

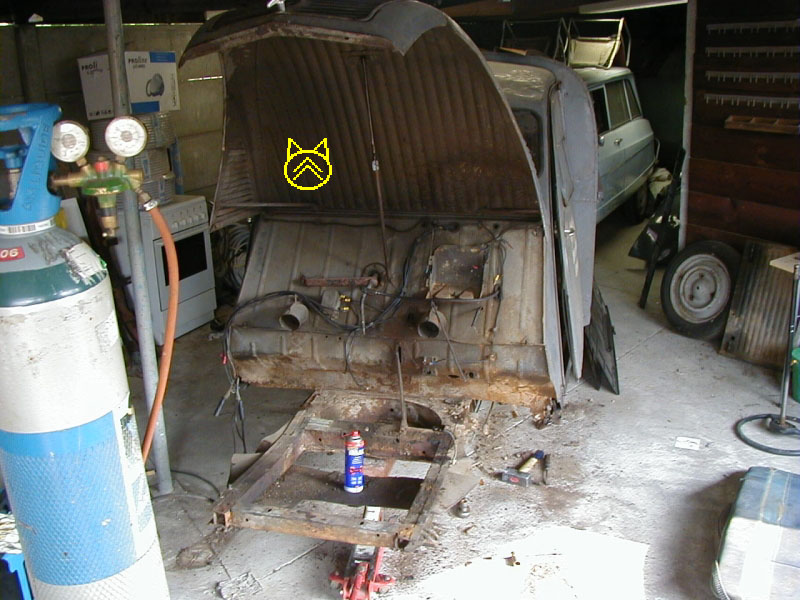

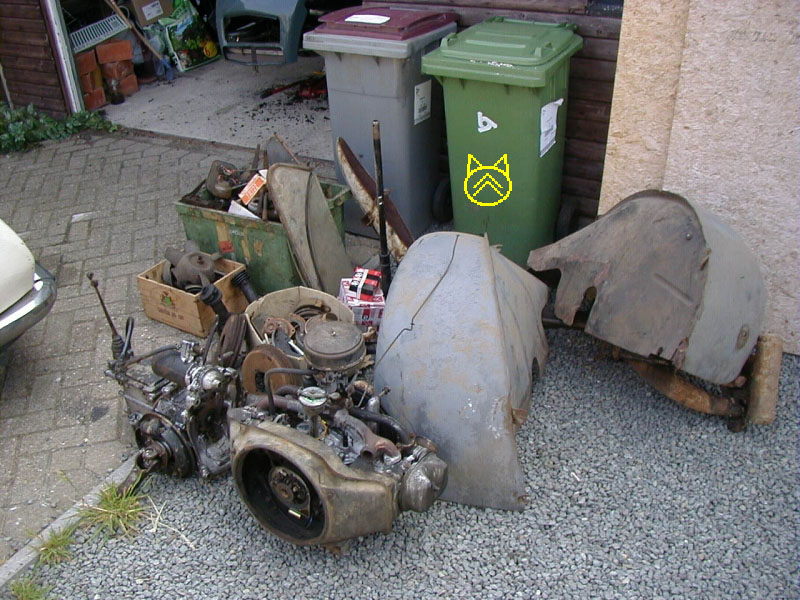

Dismantling

Click for full screen Click for full screen

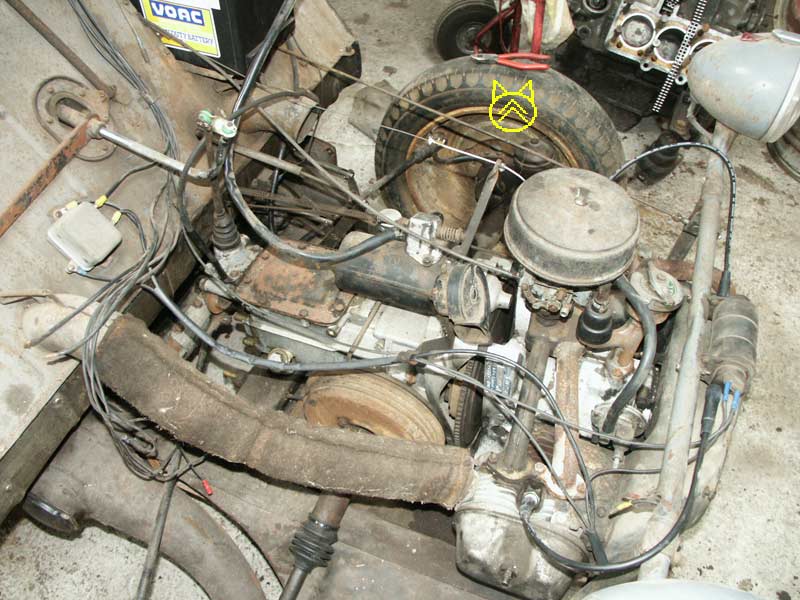

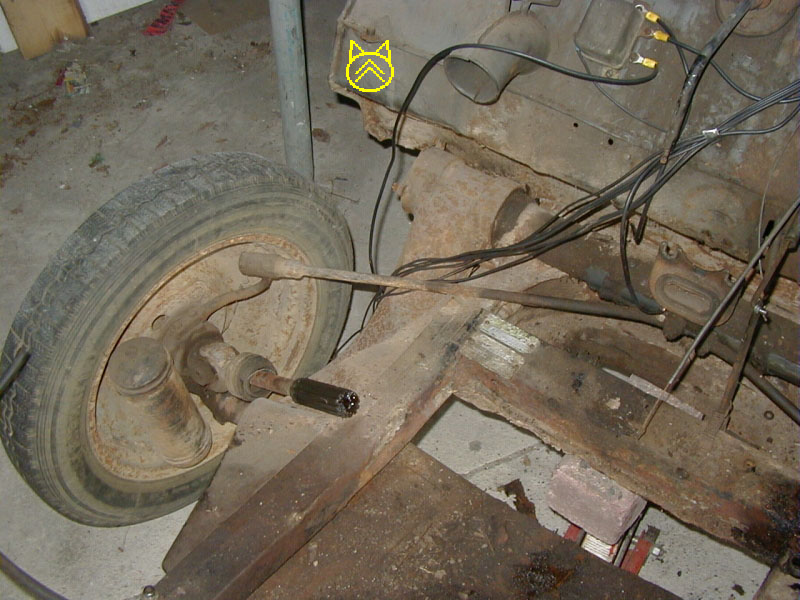

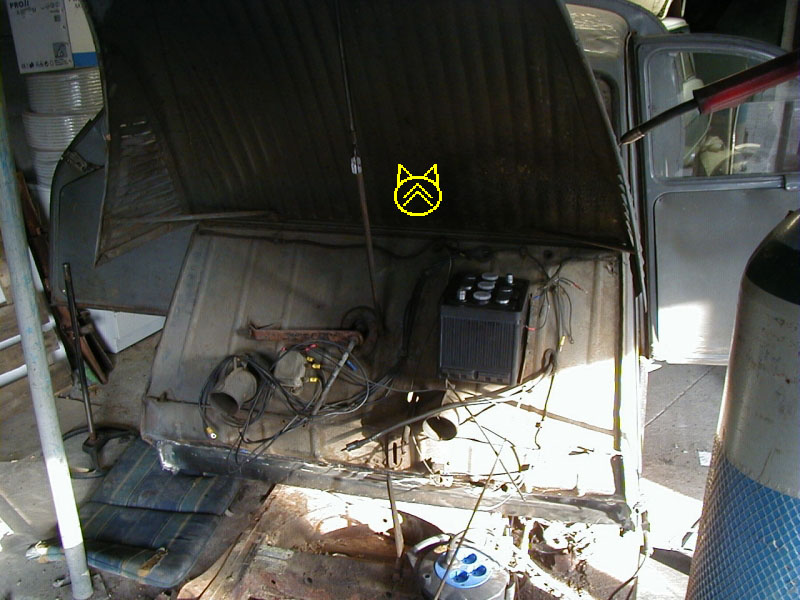

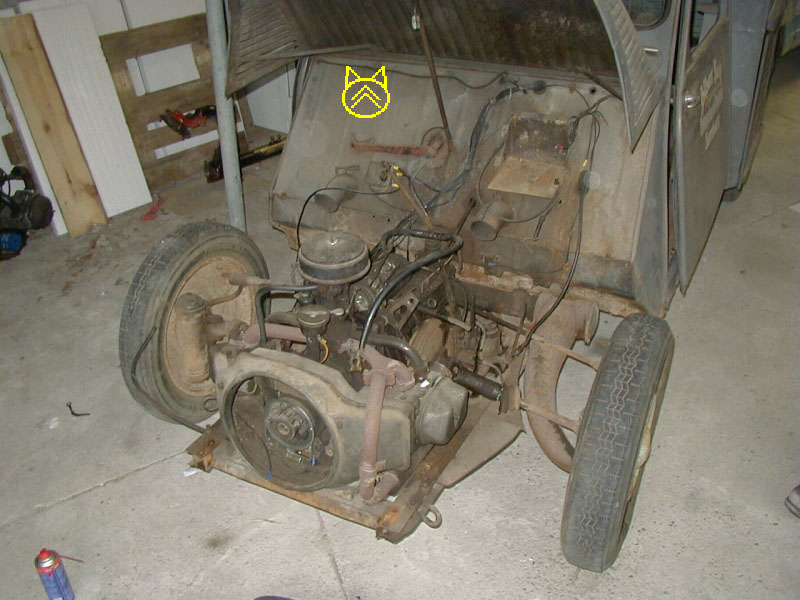

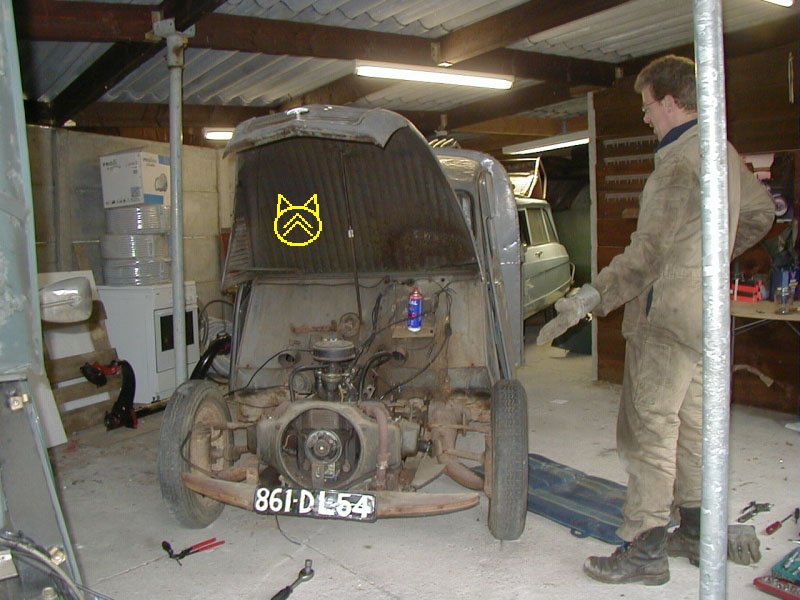

Empty engine bay, big batteur and no adjustment on the steering rod

Click for full screen Click for full screen

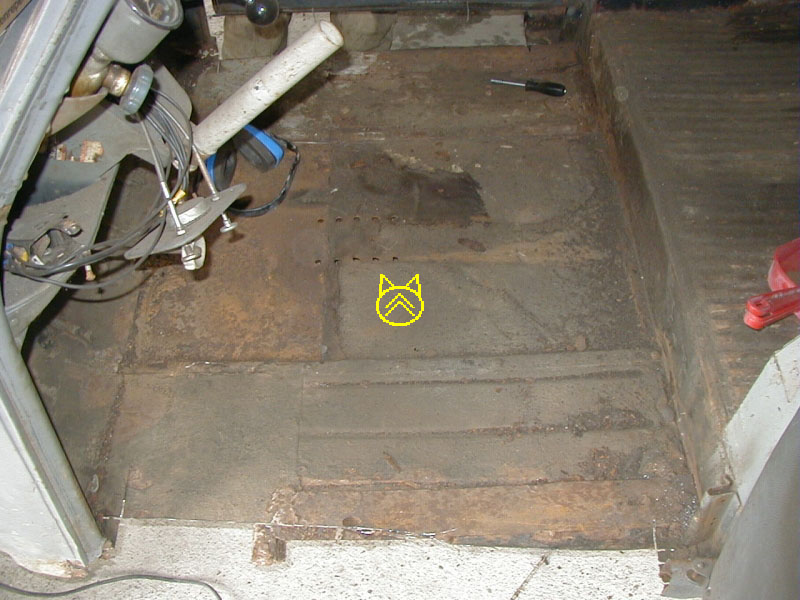

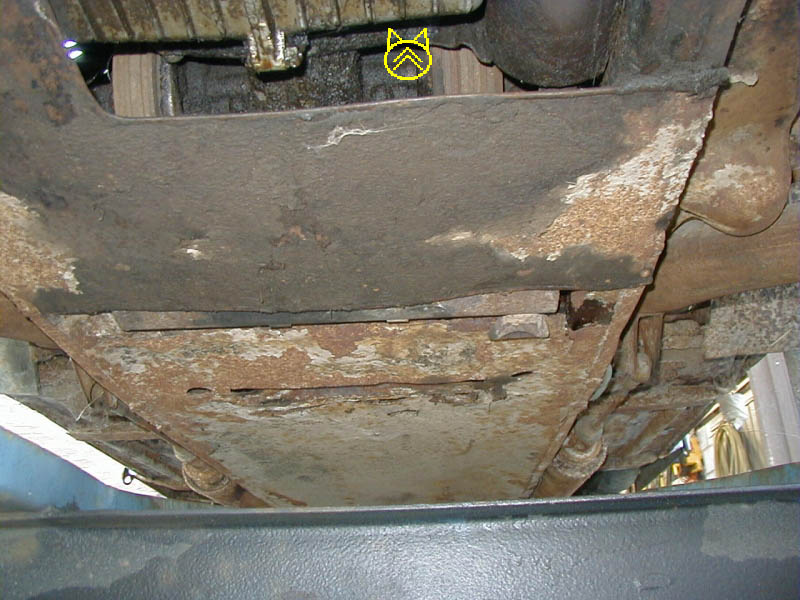

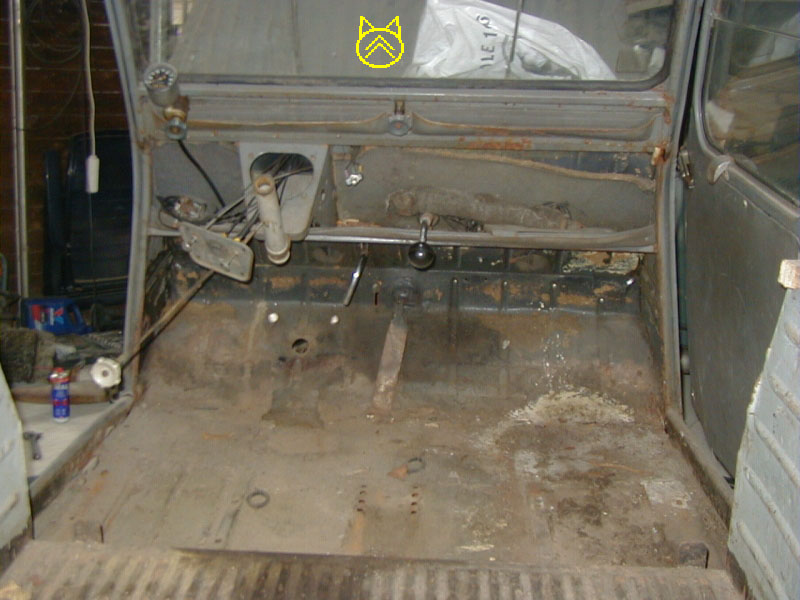

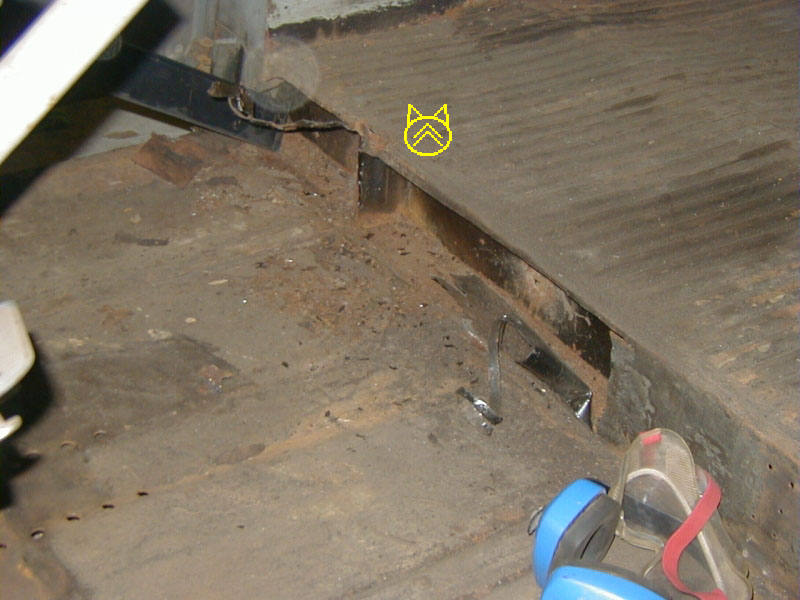

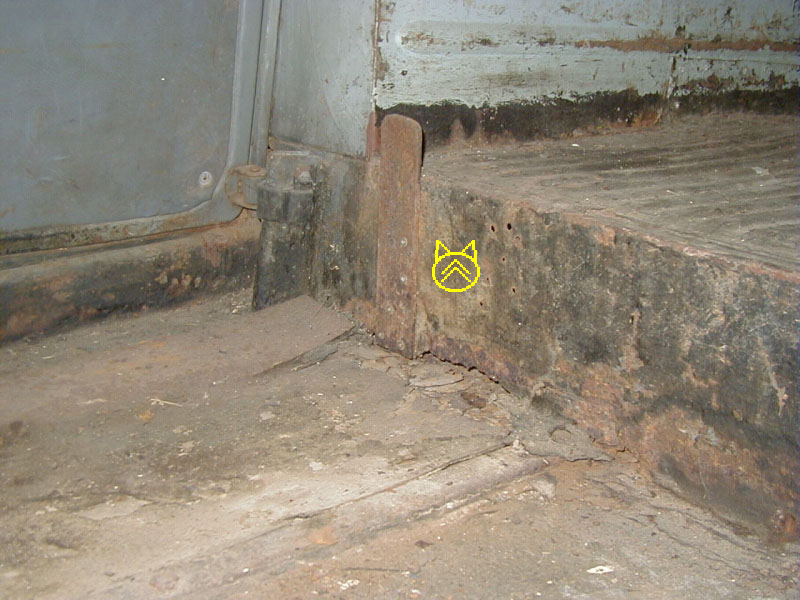

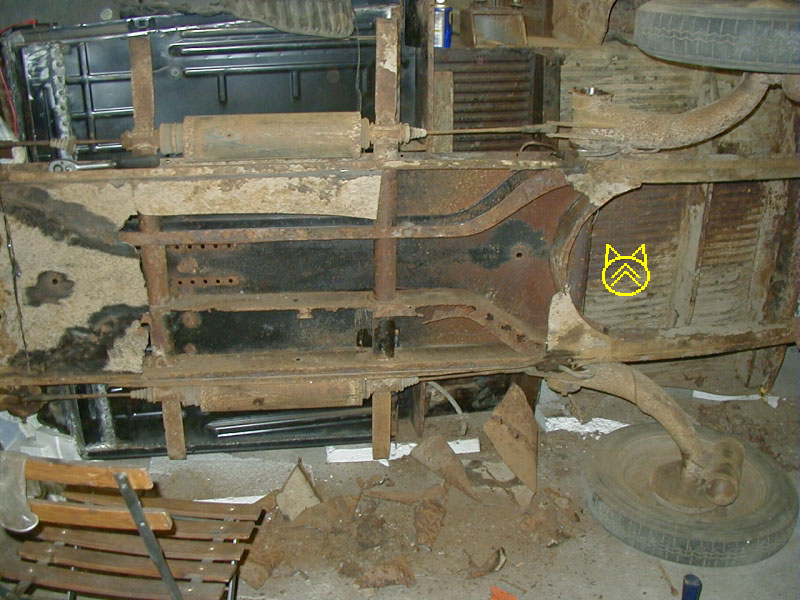

Rusty floors

Click for full screen Click for full screen

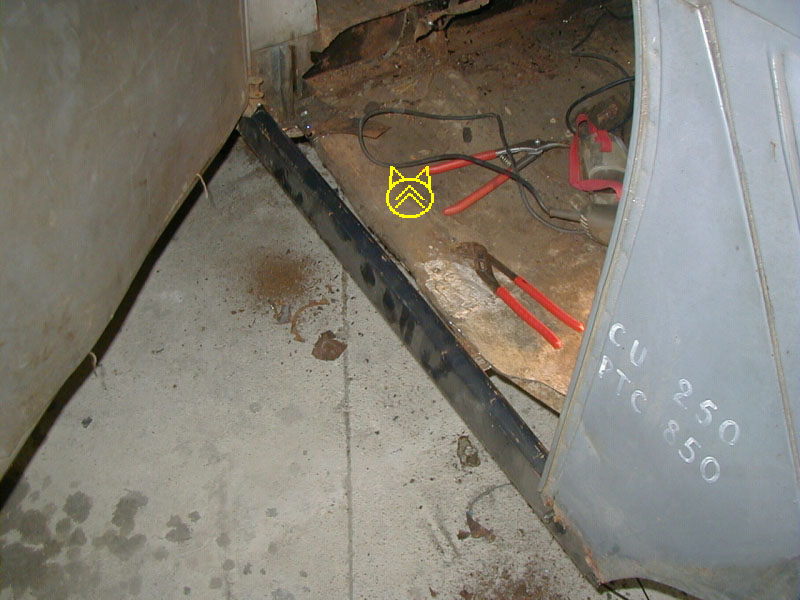

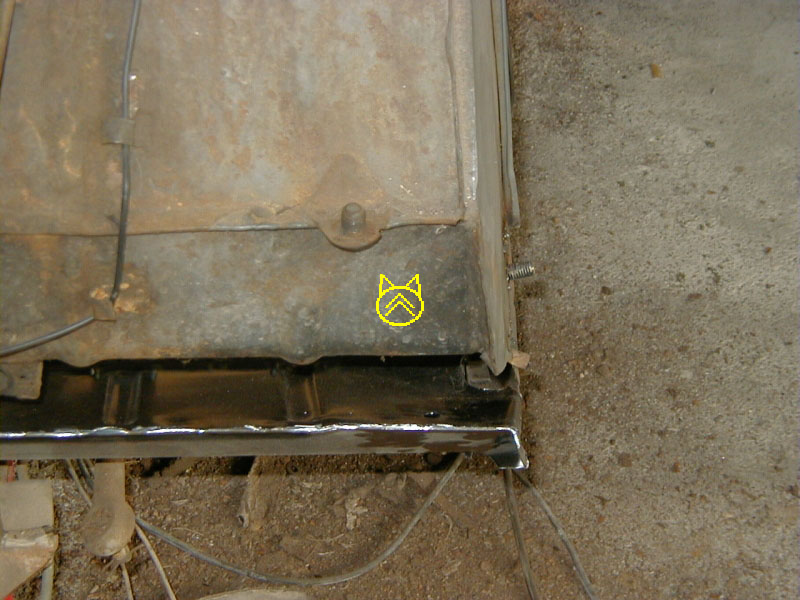

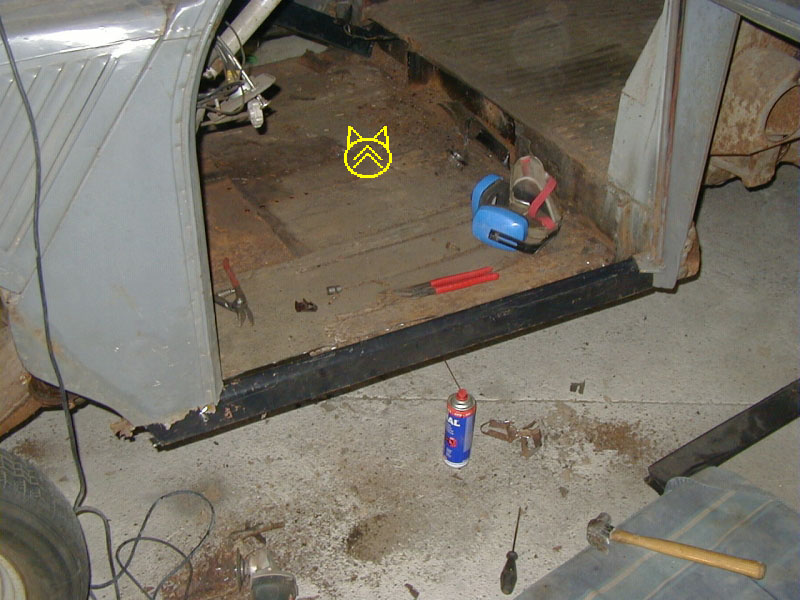

New sills, right and left side

Click for full screen Click for full screen
Front reinforcement of the luggage floor. common problem

Click for full screen Click for full screen

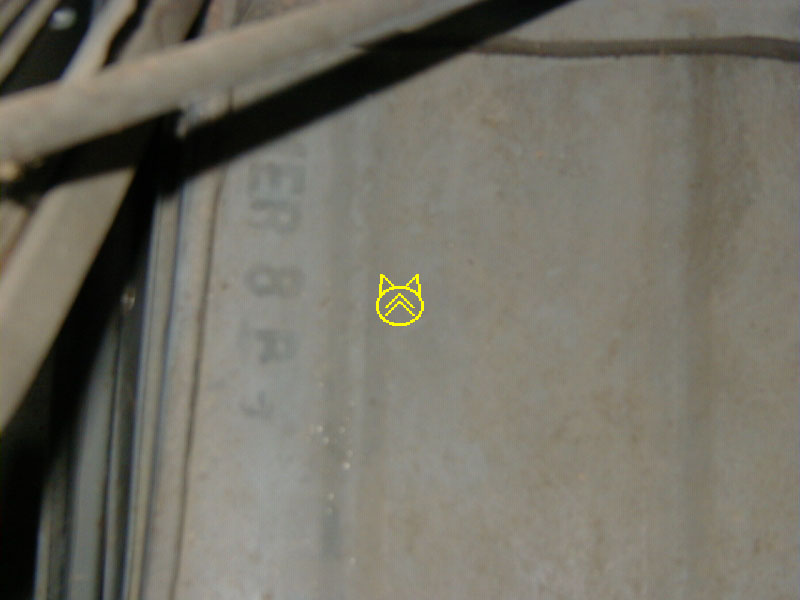

Interesting writing. 8 B 5 = 8th, february, 1955

Click for full screen Click for full screen

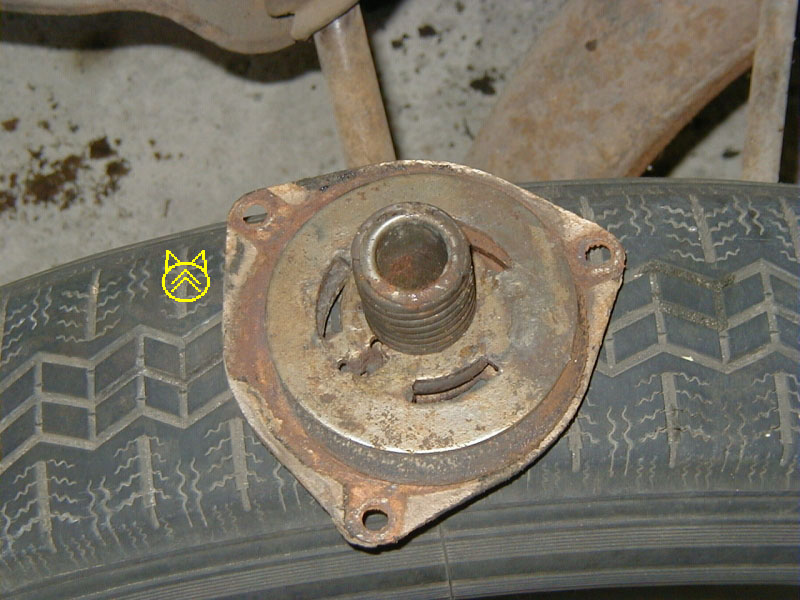

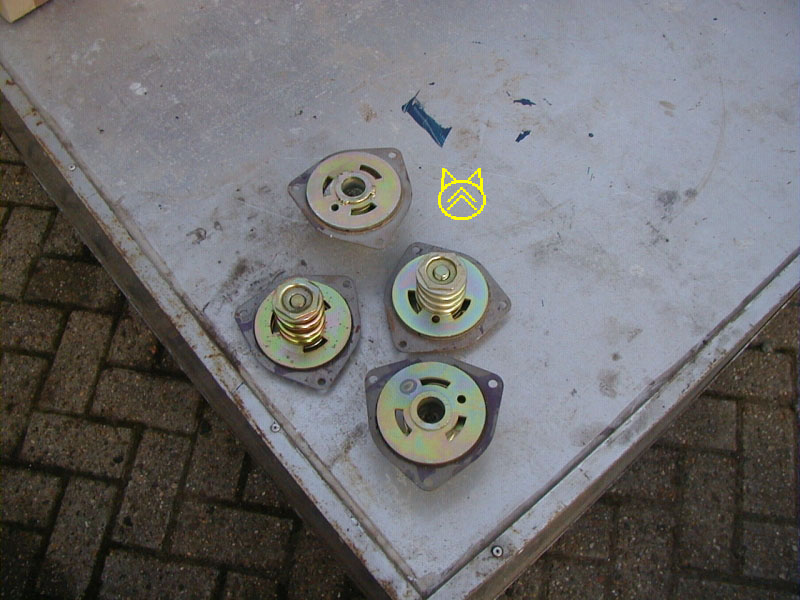

All 4 frotteurs are gone, friction plates have disintegrated. Cleaned engine and gearbox.

Click for full screen Click for full screen

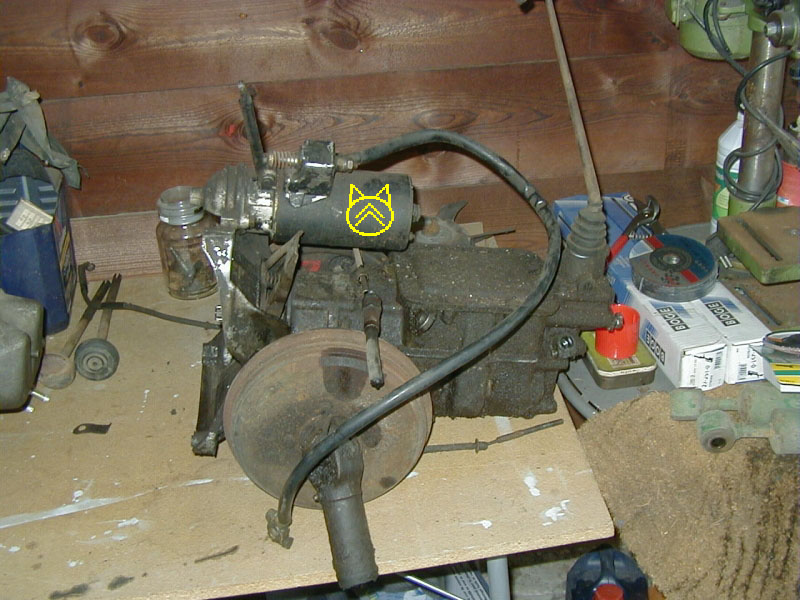

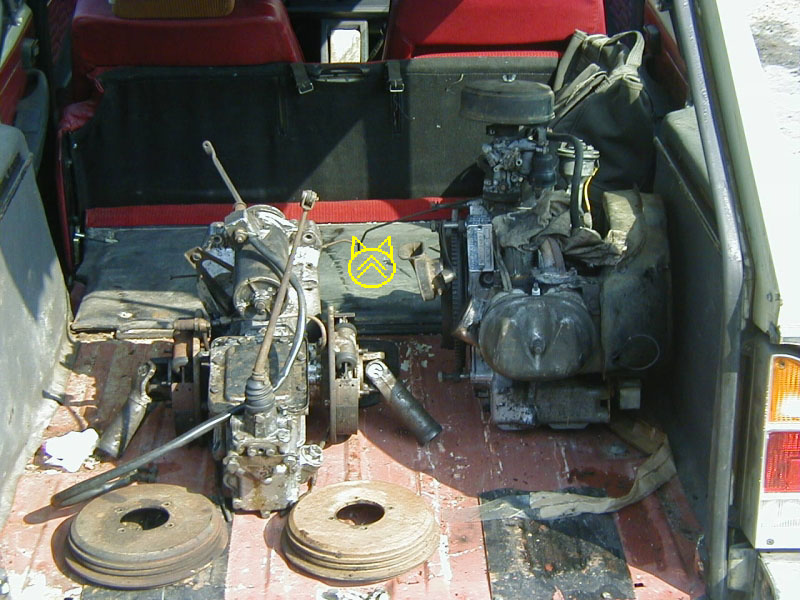

Gearbox, before and after

Click for full screen Click for full screen
Fresh supply of goodies

Click for full screen Click for full screen

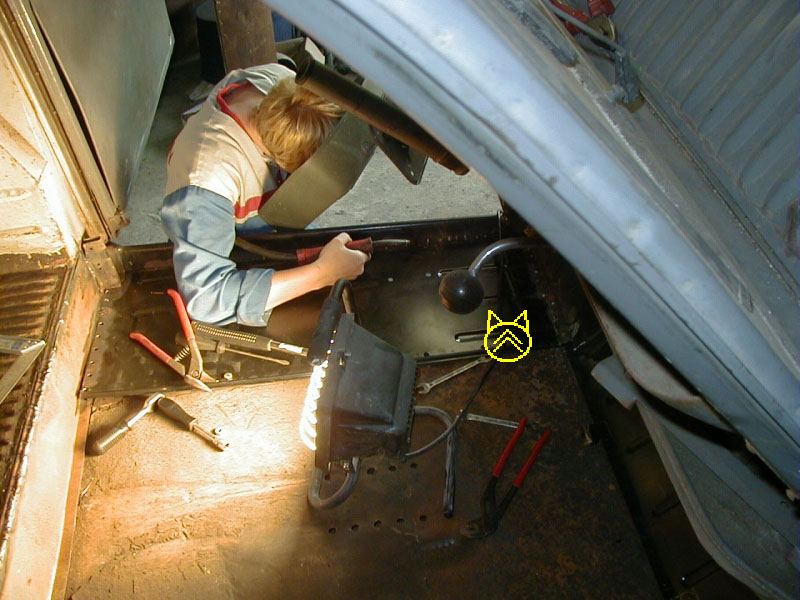

Luckily I've got help, there's still plenty to do.

Click for full screen Click for full screen

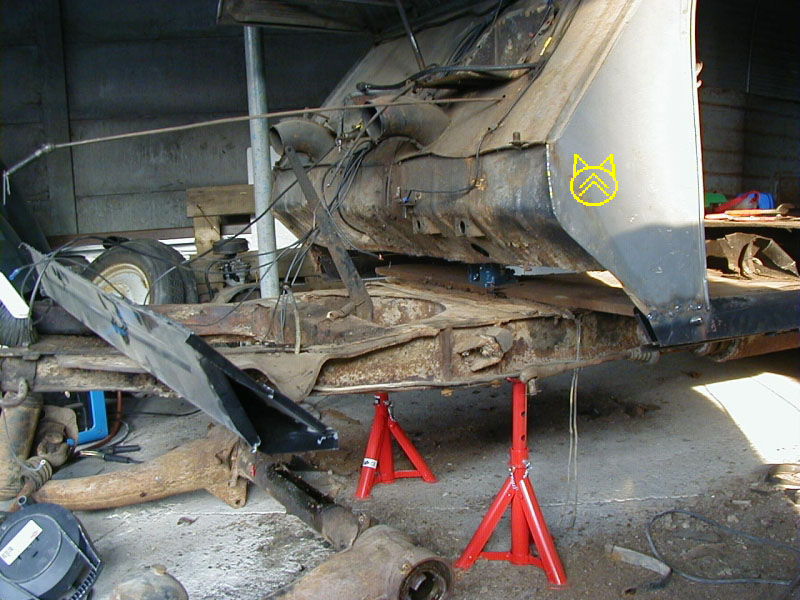

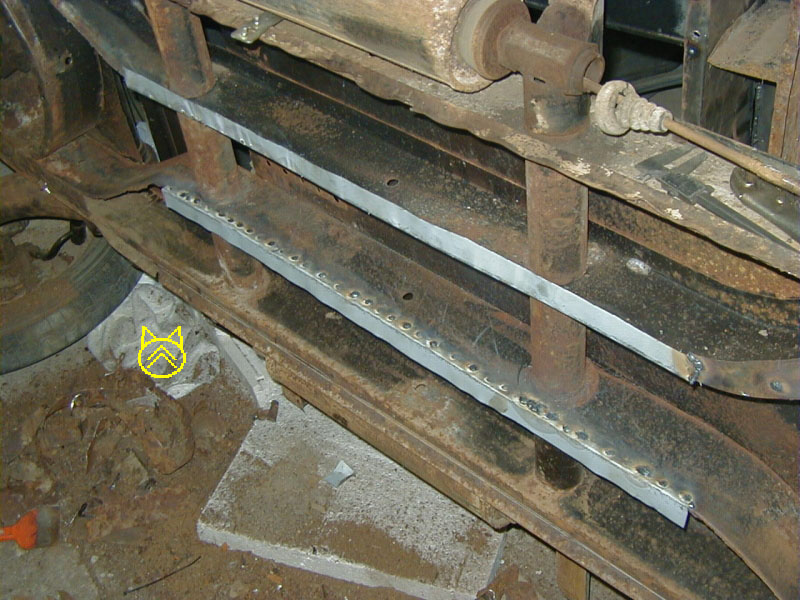

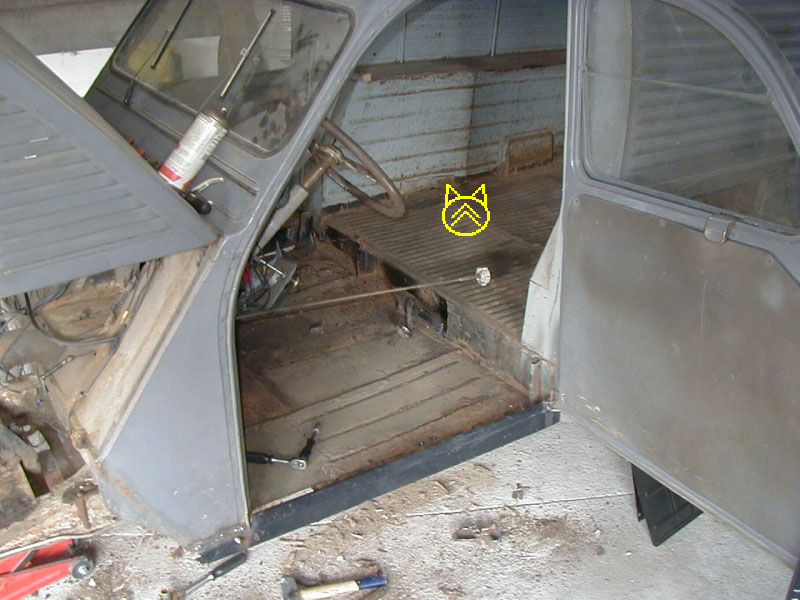

Sills welded in, footwell cut out

Click for full screen Click for full screen

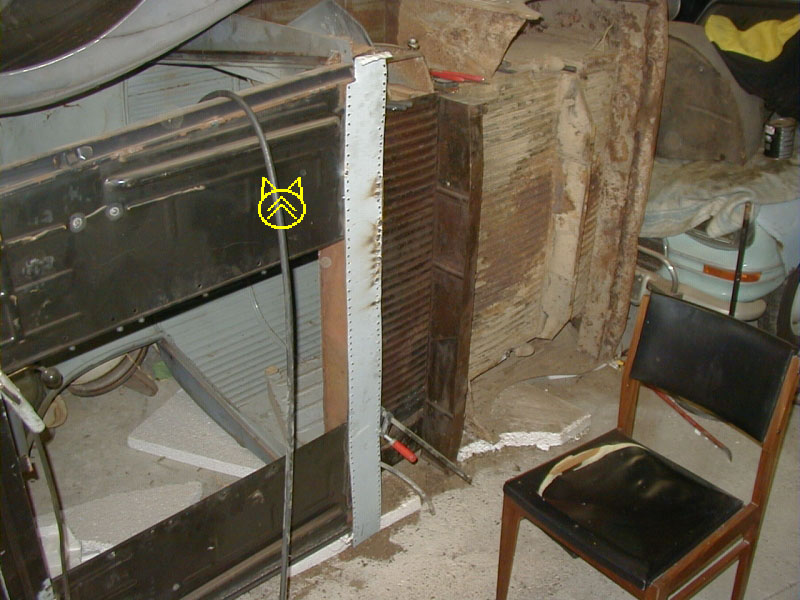

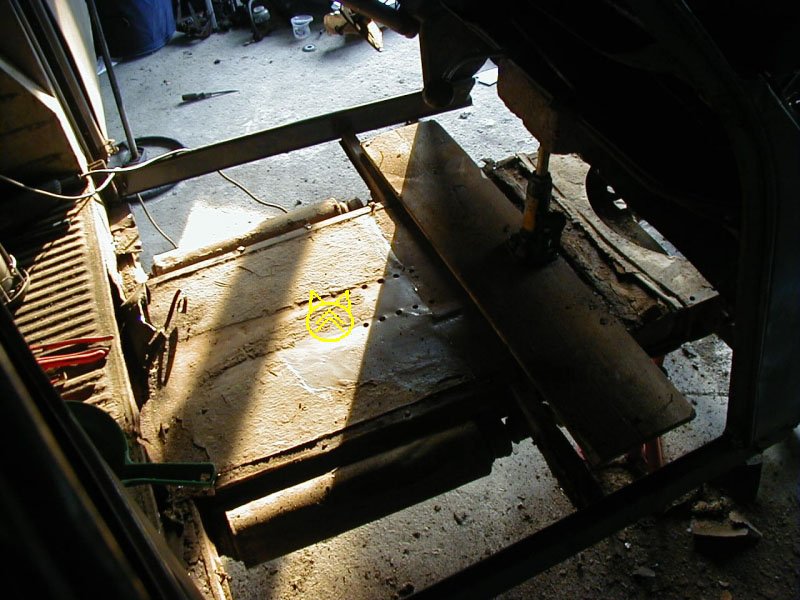

Floors and footwell removed

Click for full screen Click for full screen

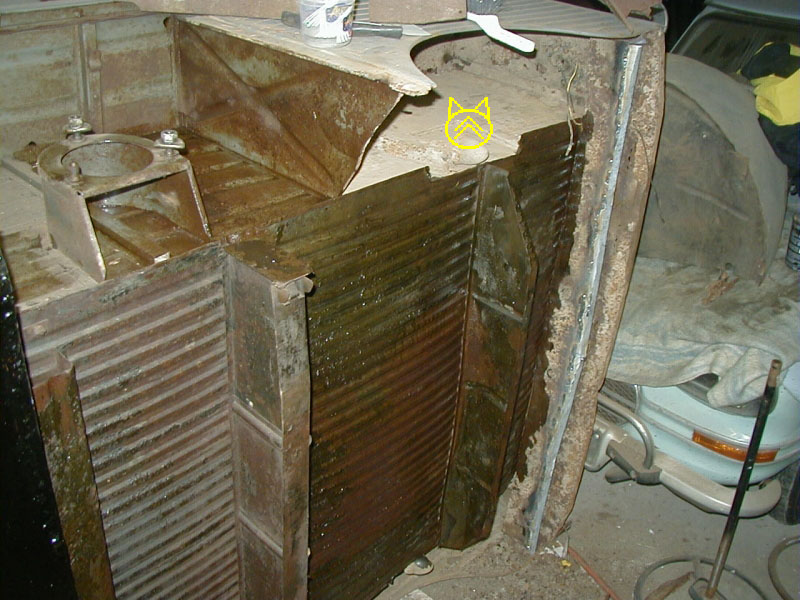

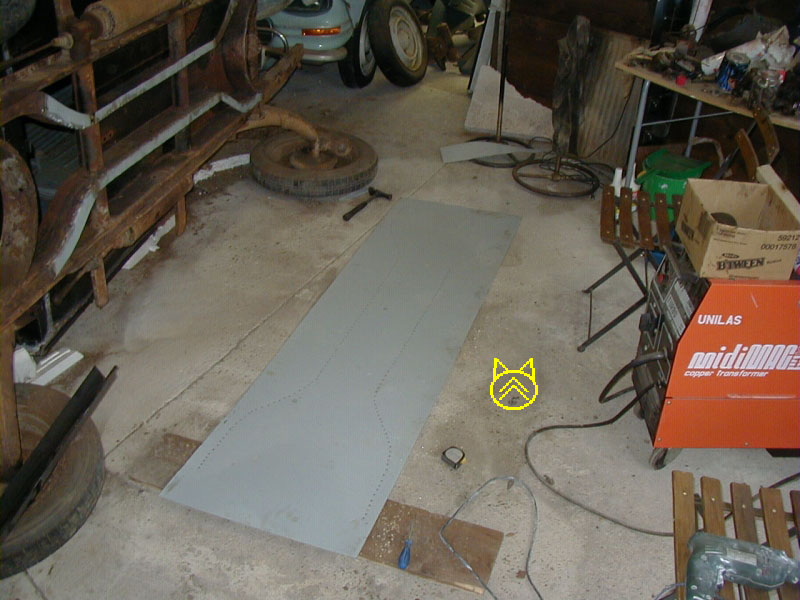

Glad the footwell isn't that much wider then the car...

Click for full screen Click for full screen

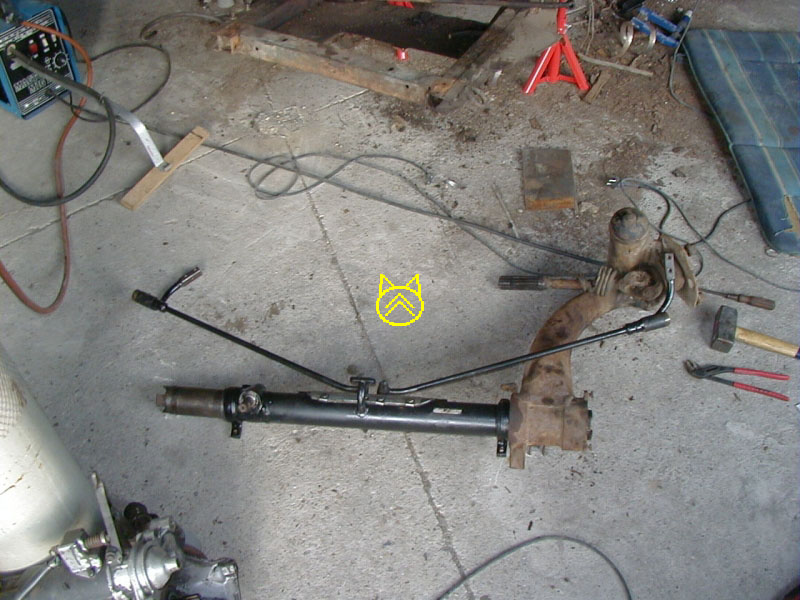

New front axle, stored for 50 years, cleaned and painted, fitted with the original arms.

Click for full screen Click for full screen

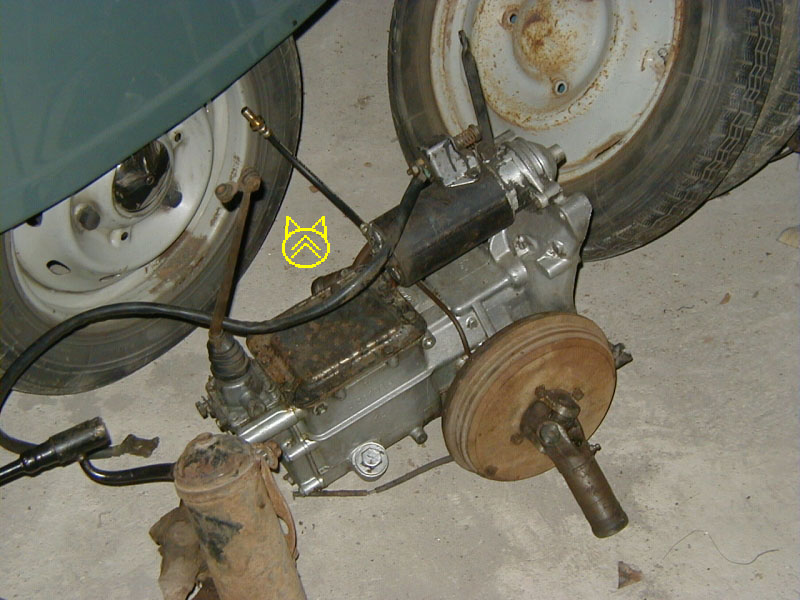

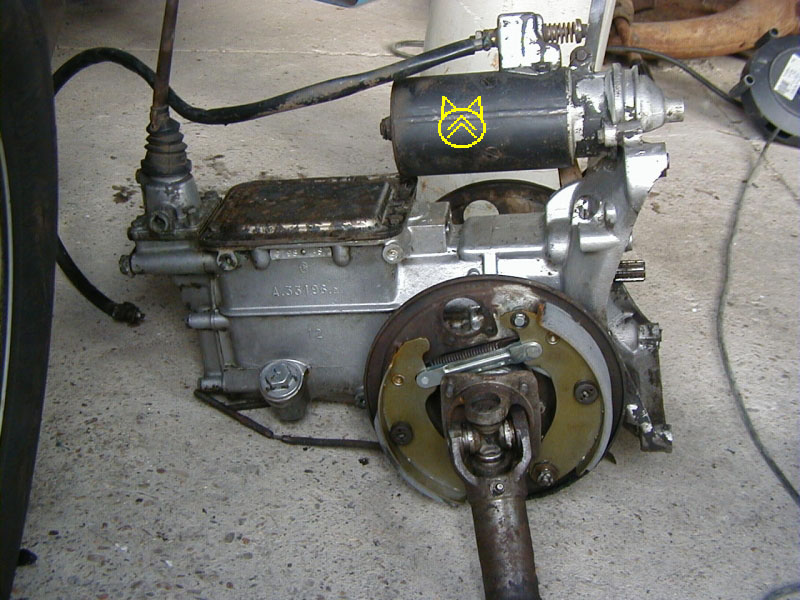

New frotteurs, still need to be set up, gearbox with new brakes

Click for full screen Click for full screen

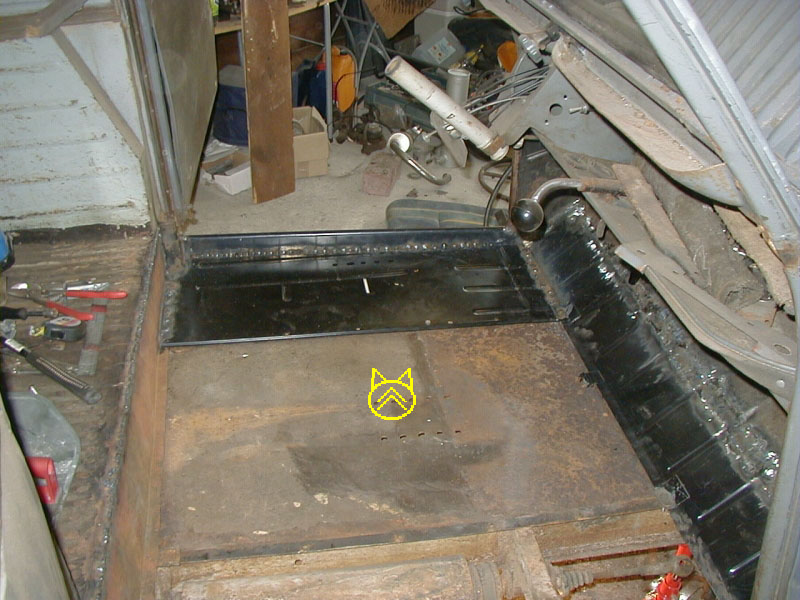

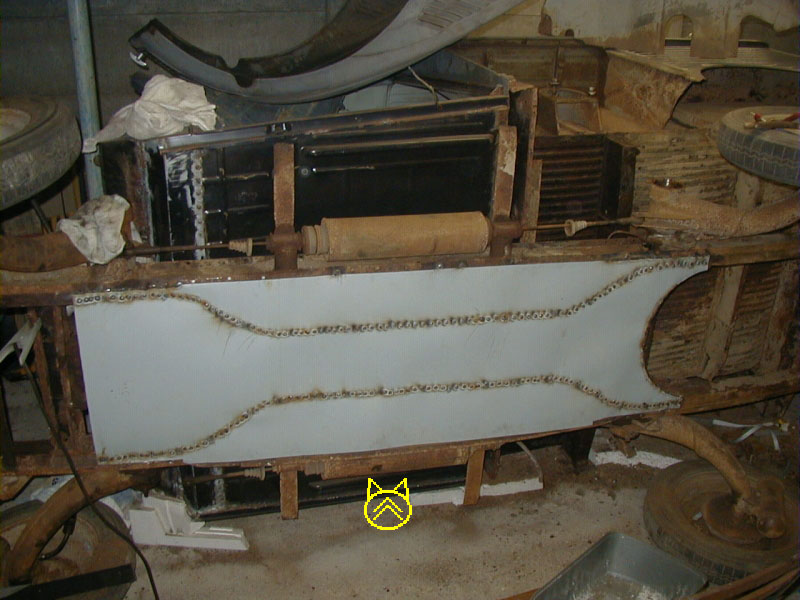

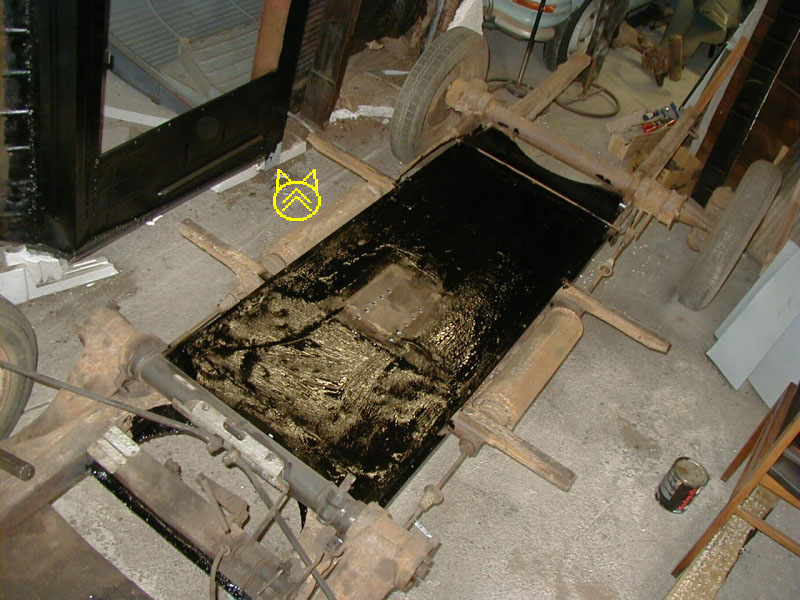

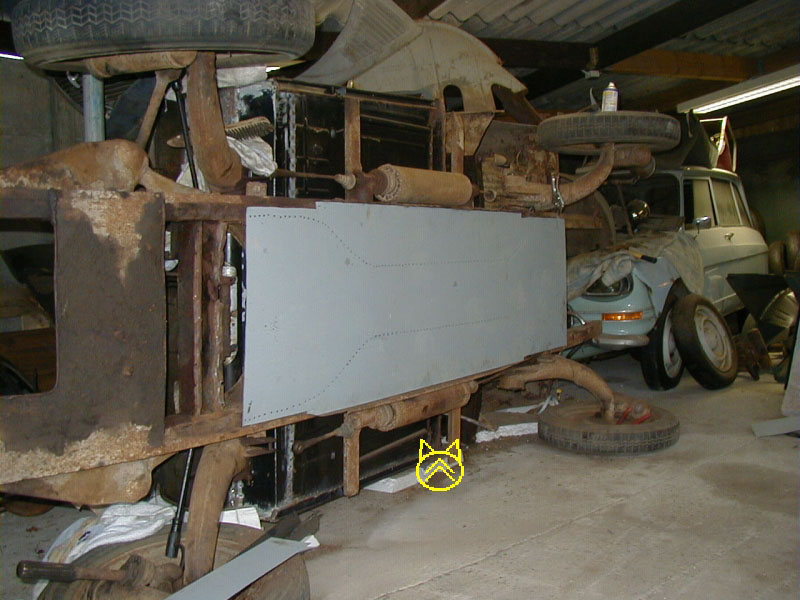

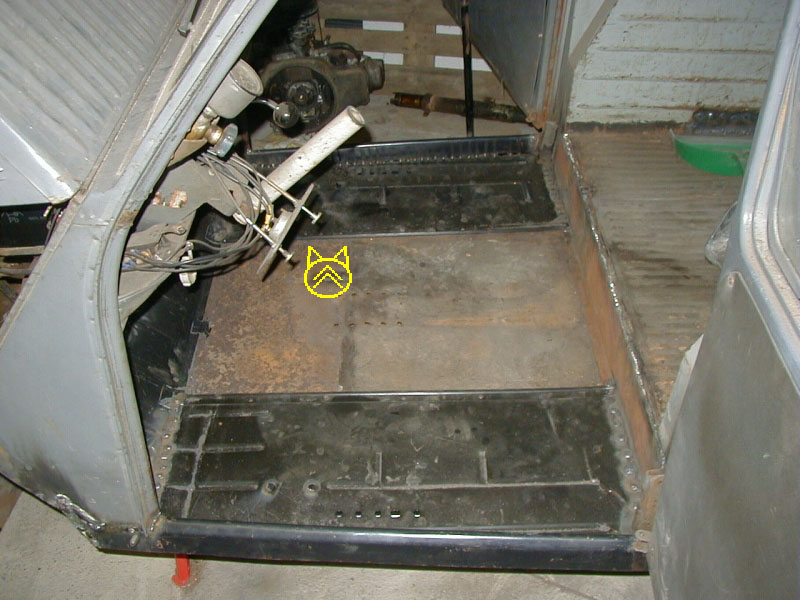

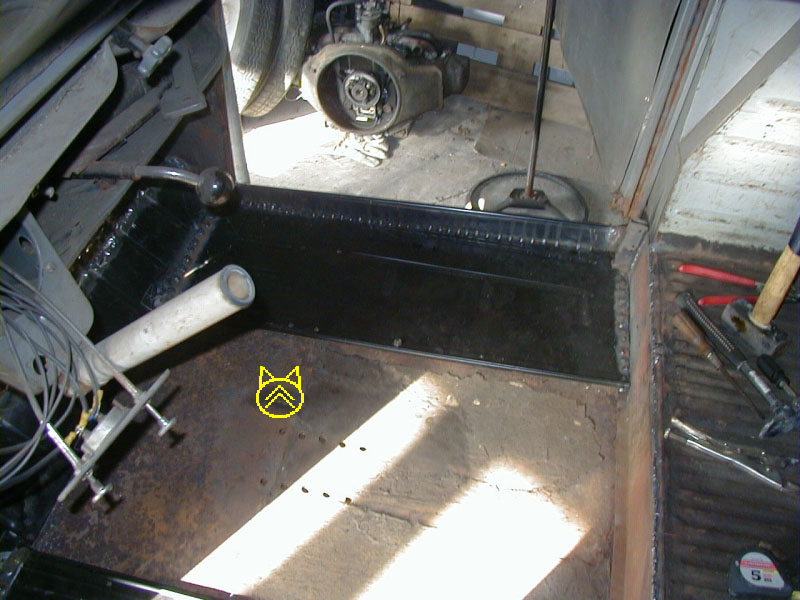

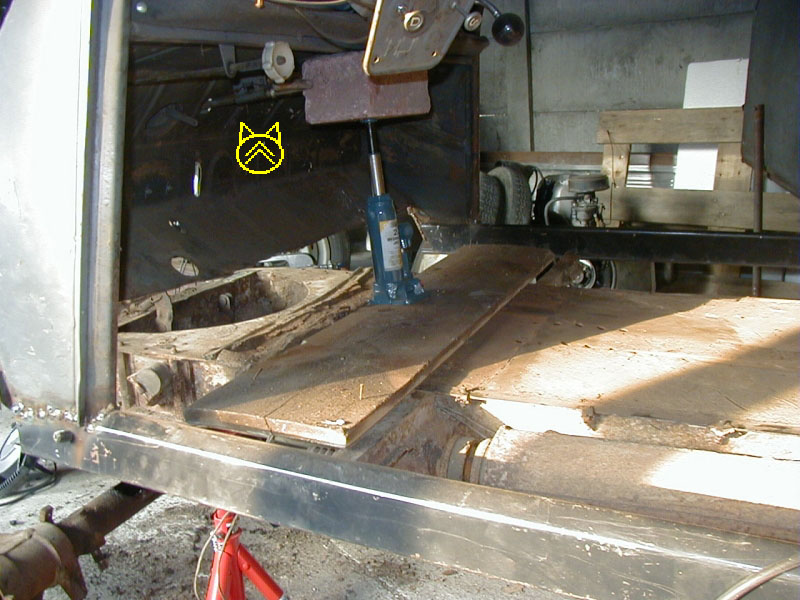

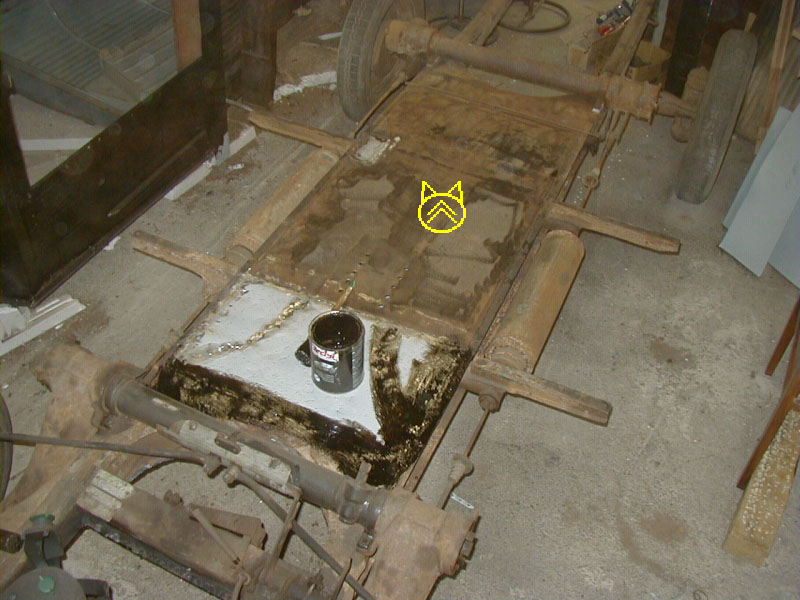

Some welding, et voila, first floor is in.

Click for full screen Click for full screen

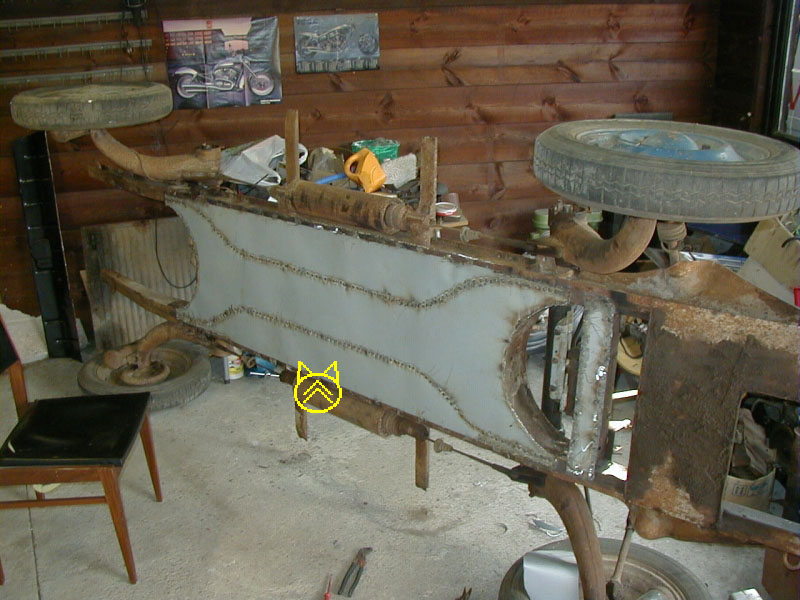

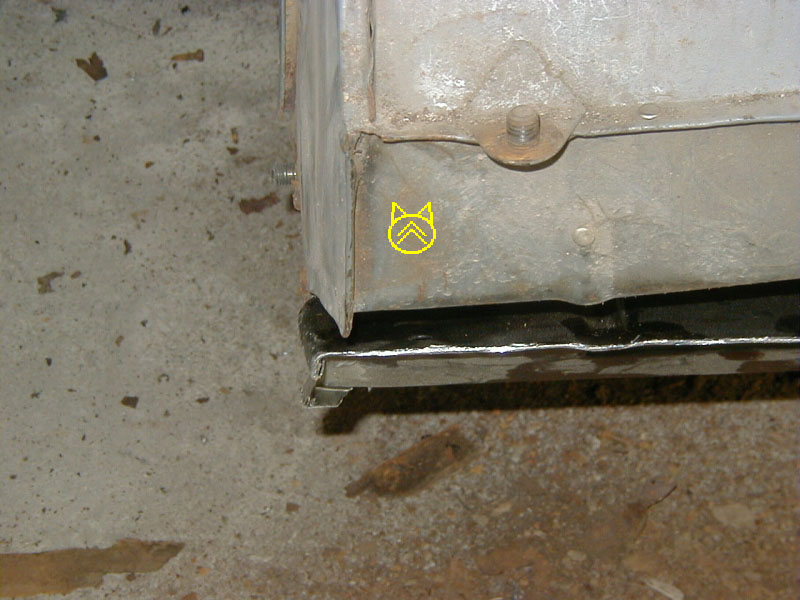

Second floor

Click for full screen Click for full screen

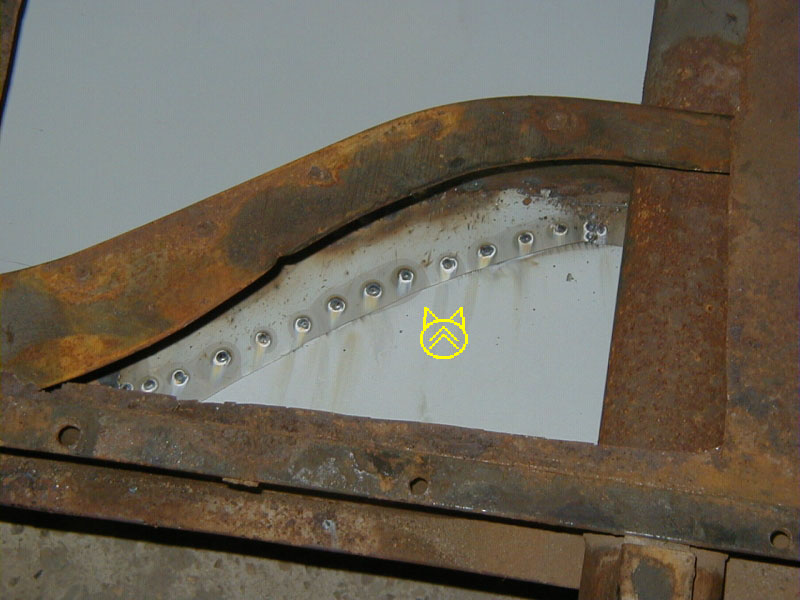

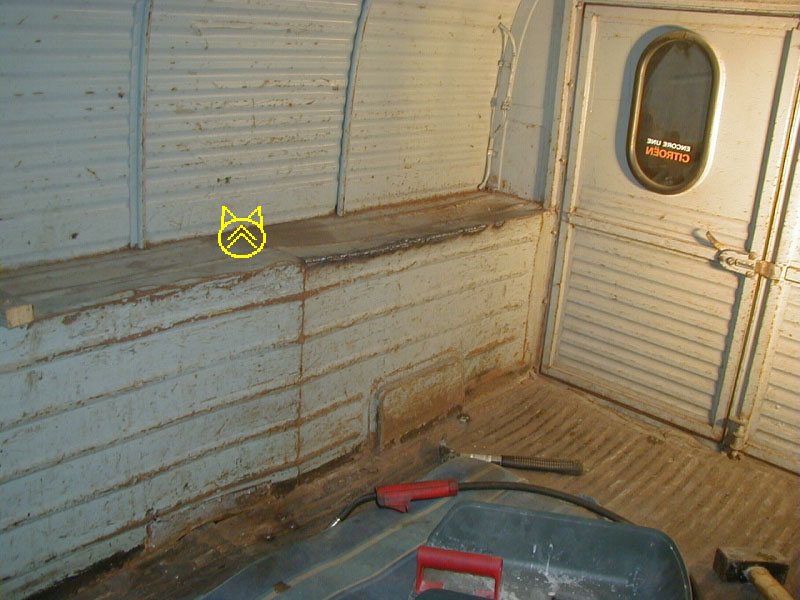

Right inner rear wing, spot the difference

Click for full screen Click for full screen
Left is ok, right has another weak spot.

Click for full screen Click for full screen

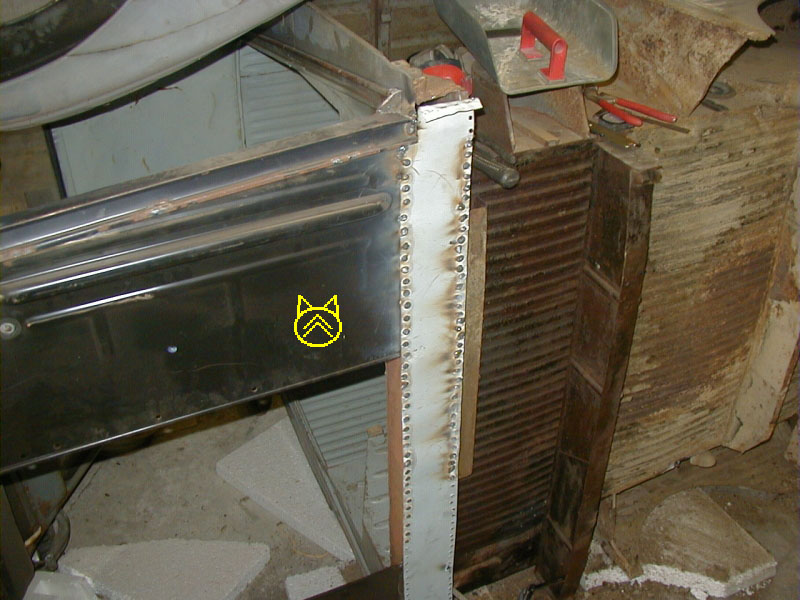

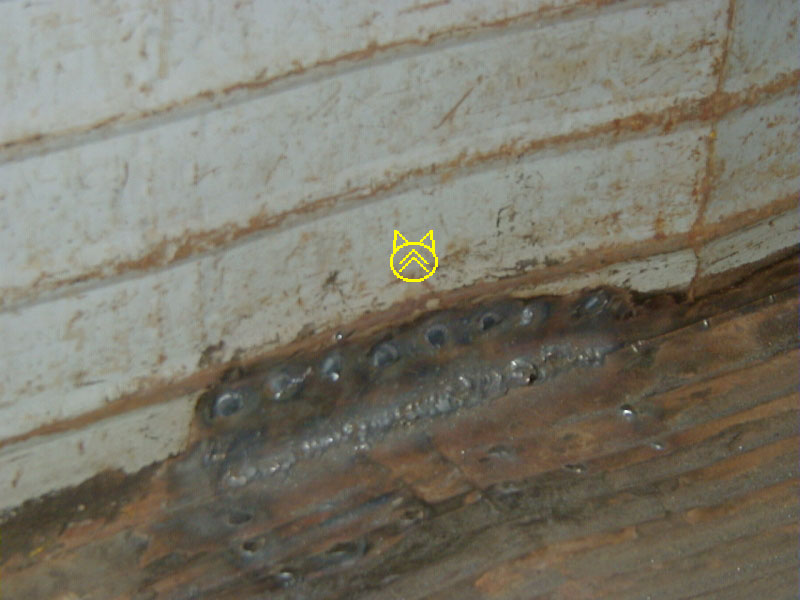

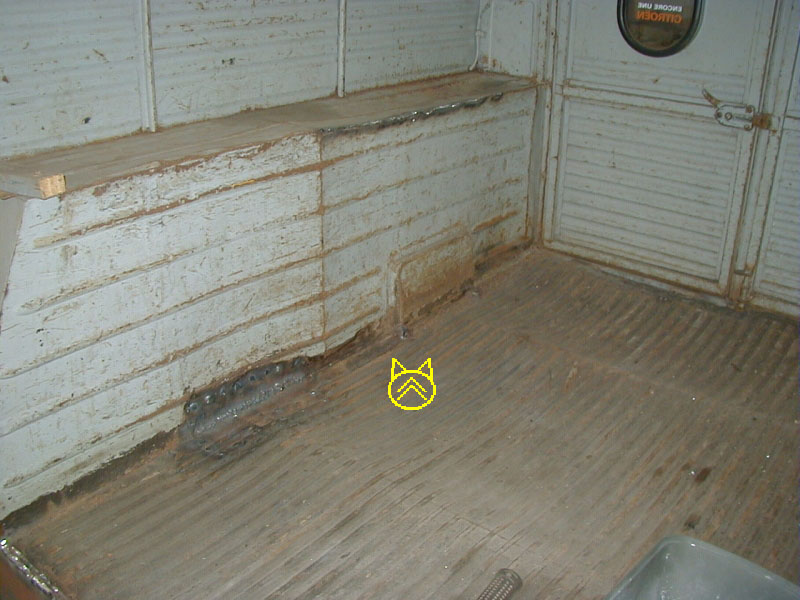

Rear inner wing repaired.

Click for full screen Click for full screen

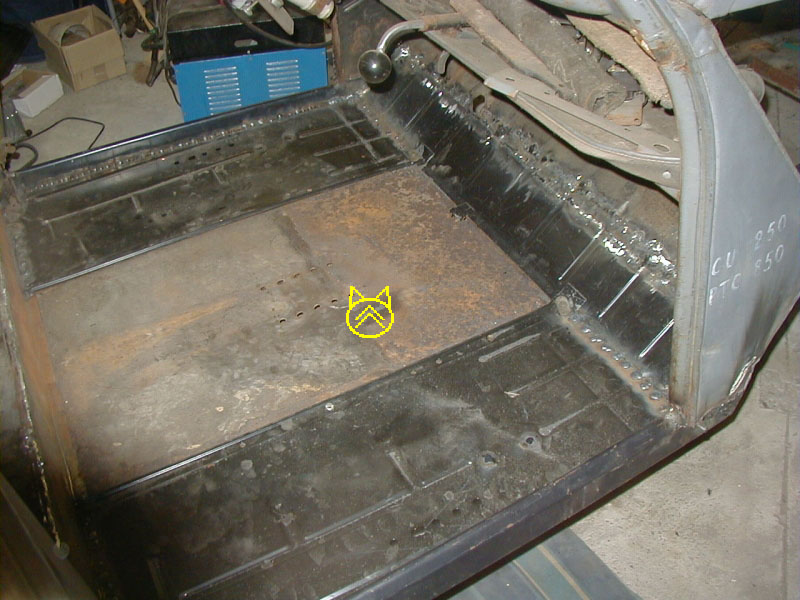

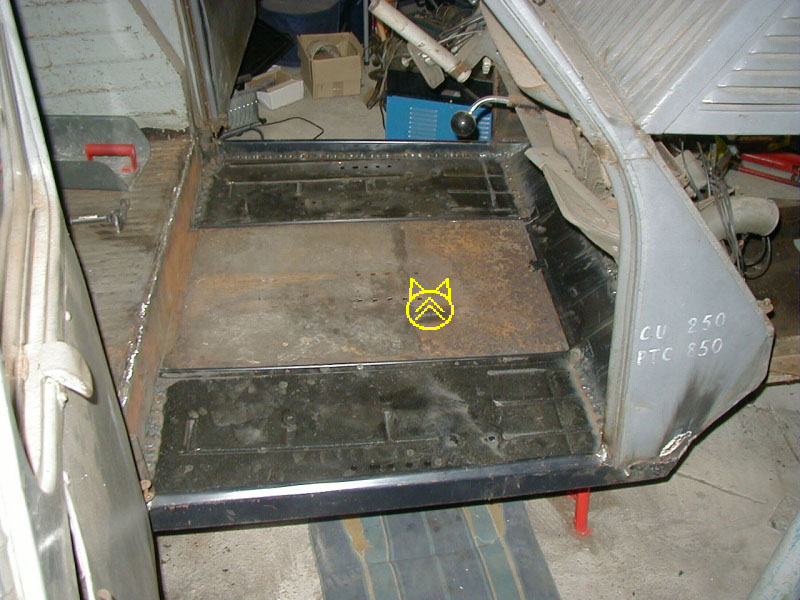

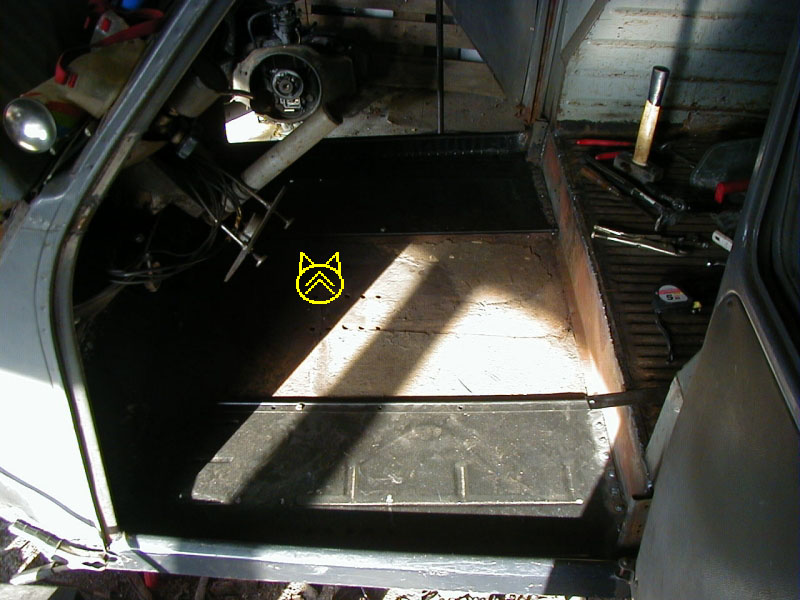

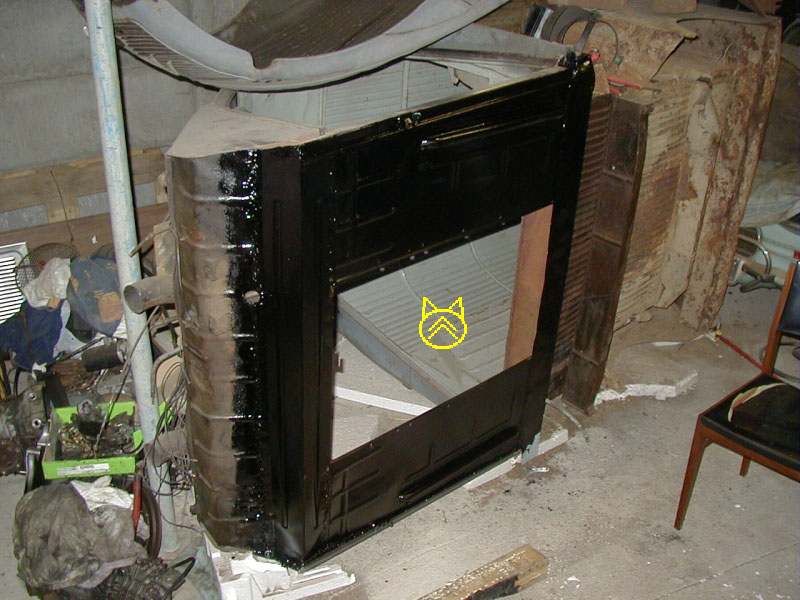

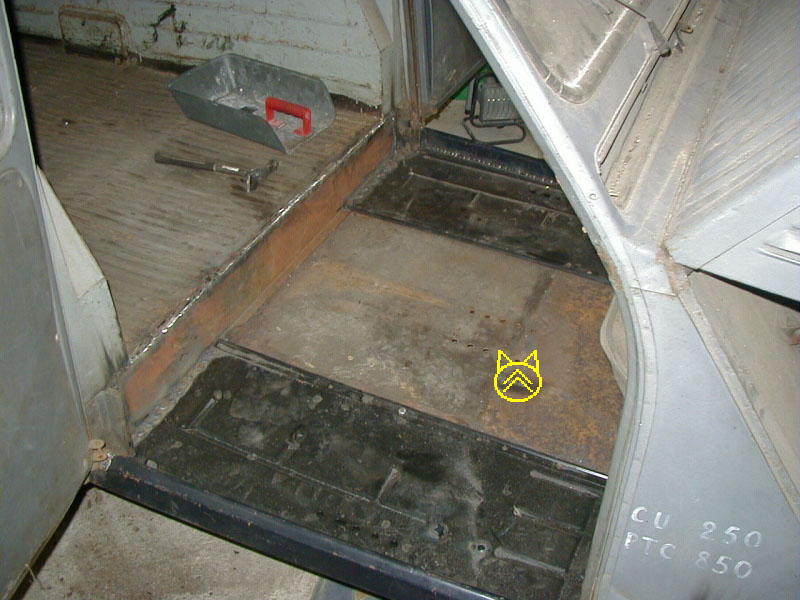

New floors, sills and footwell, done.

Click for full screen Click for full screen
New floors, sills and footwell, done.

Click for full screen Click for full screen

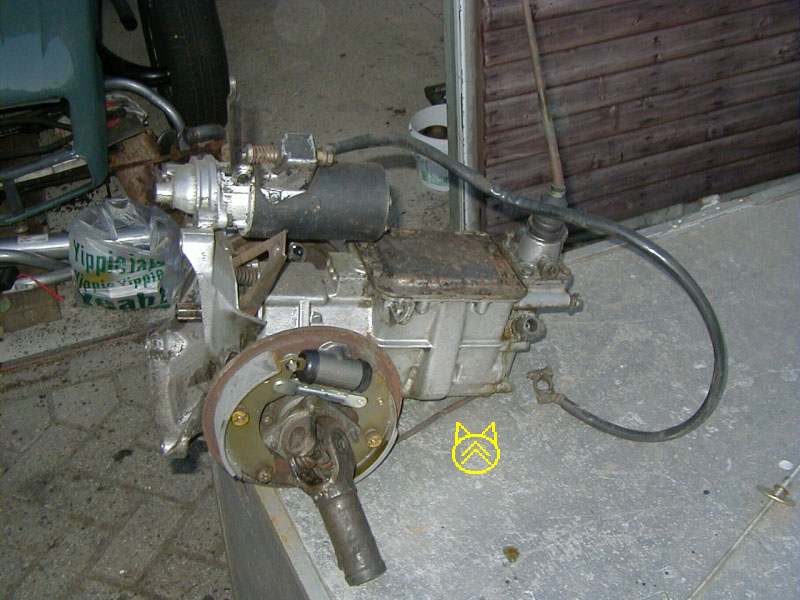

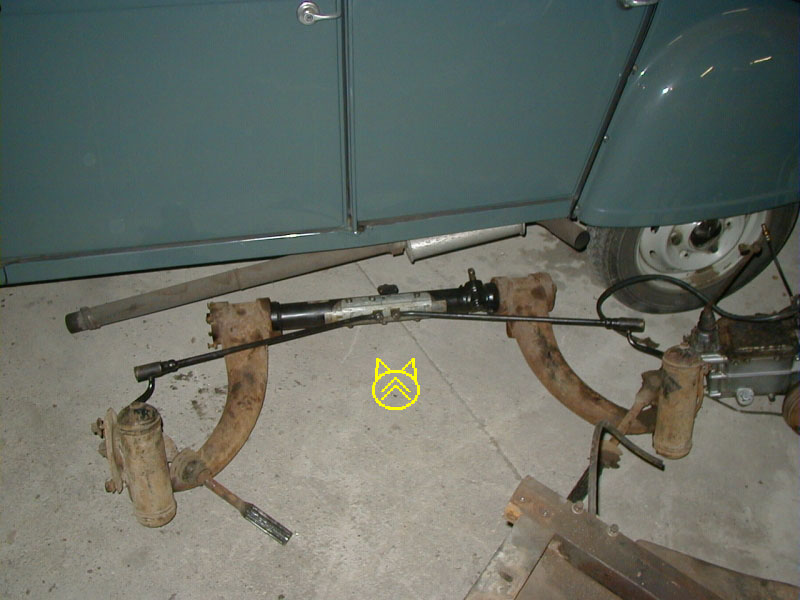

Front axle and gearbox ready for fitting.

Click for full screen

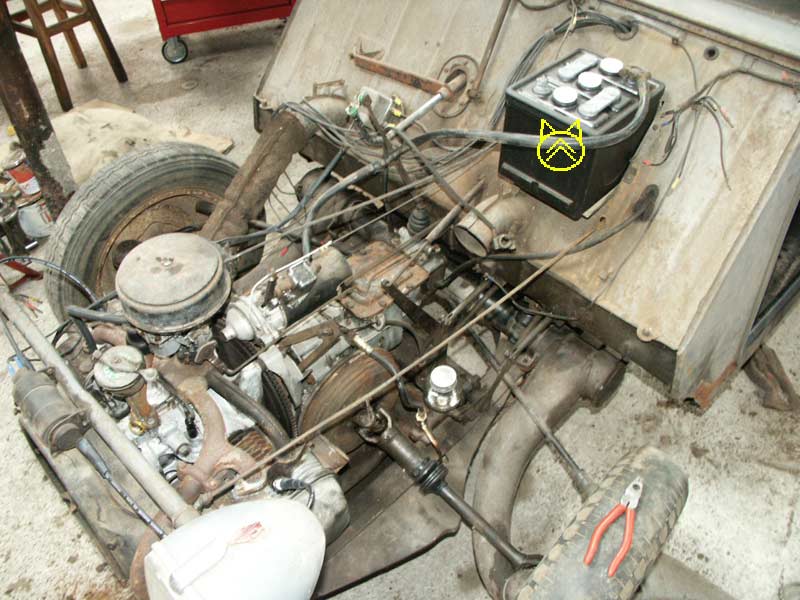

New 77Ah 6 volt battery.

Click for full screen Click for full screen

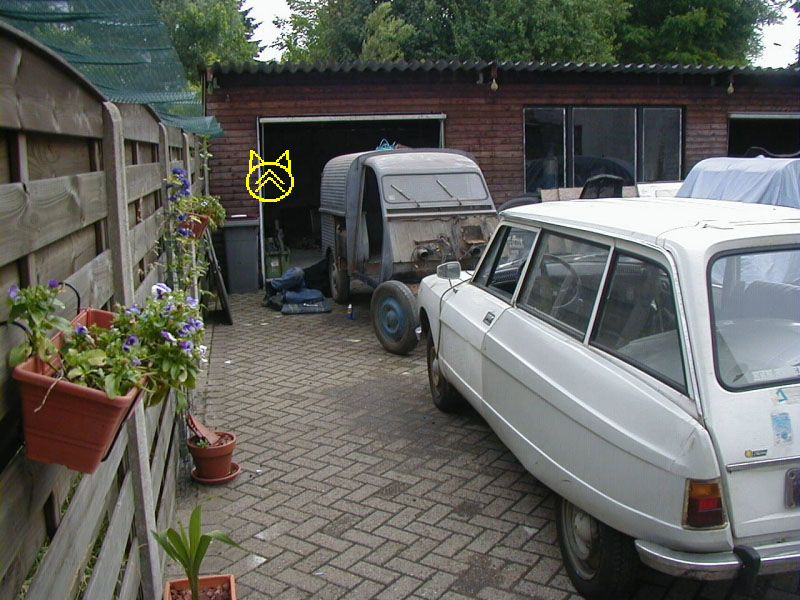

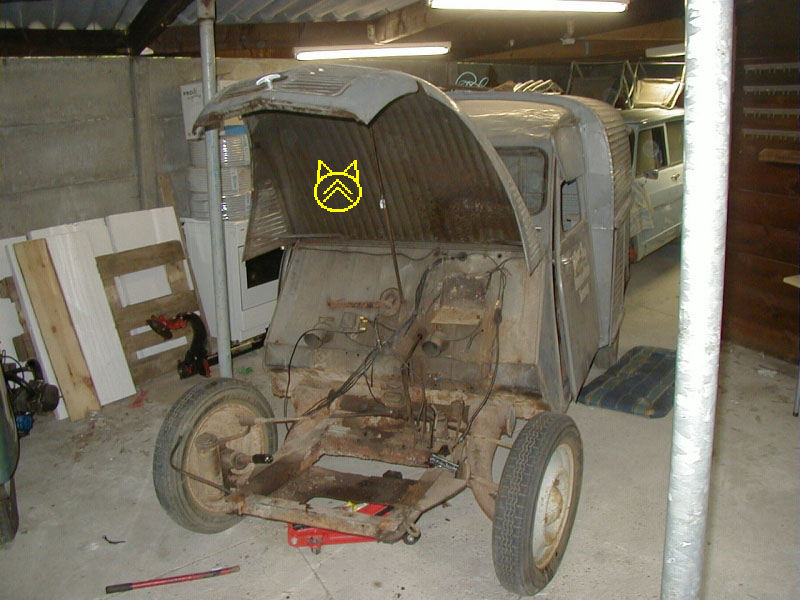

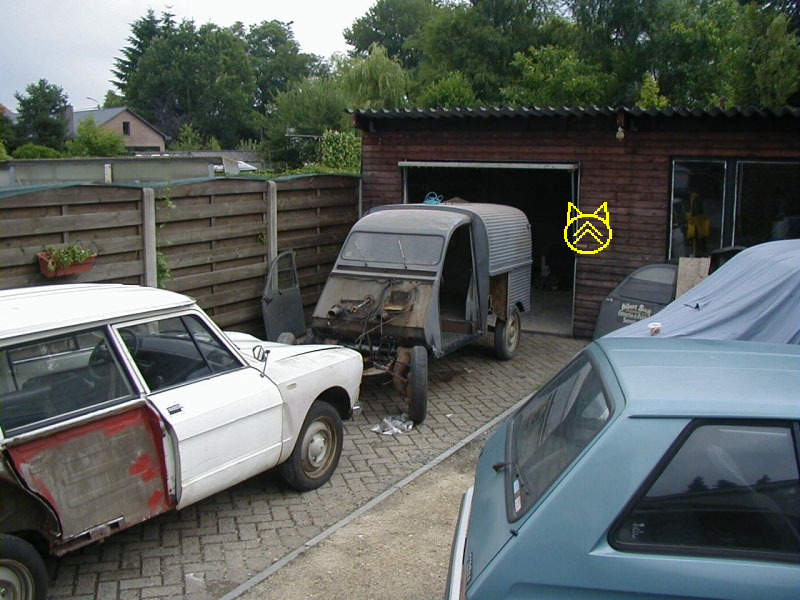

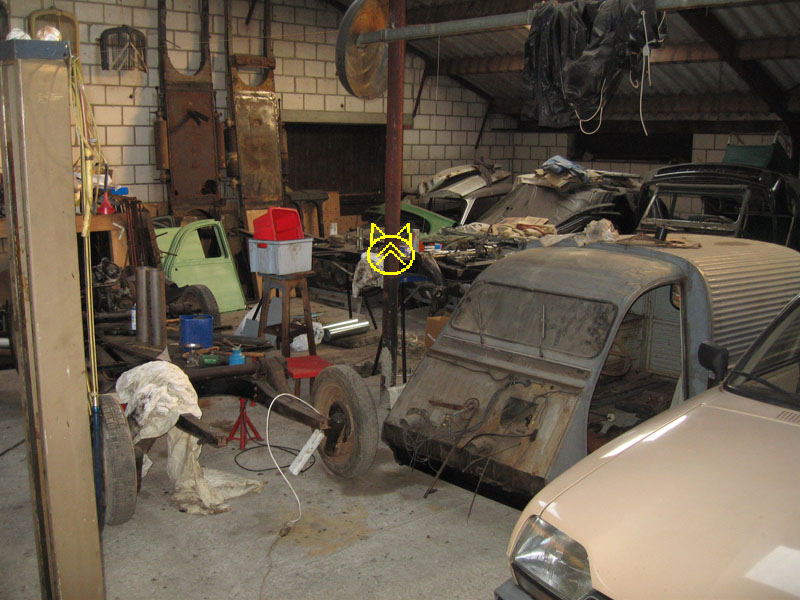

Outside to get the body off.

Click for full screen Click for full screen

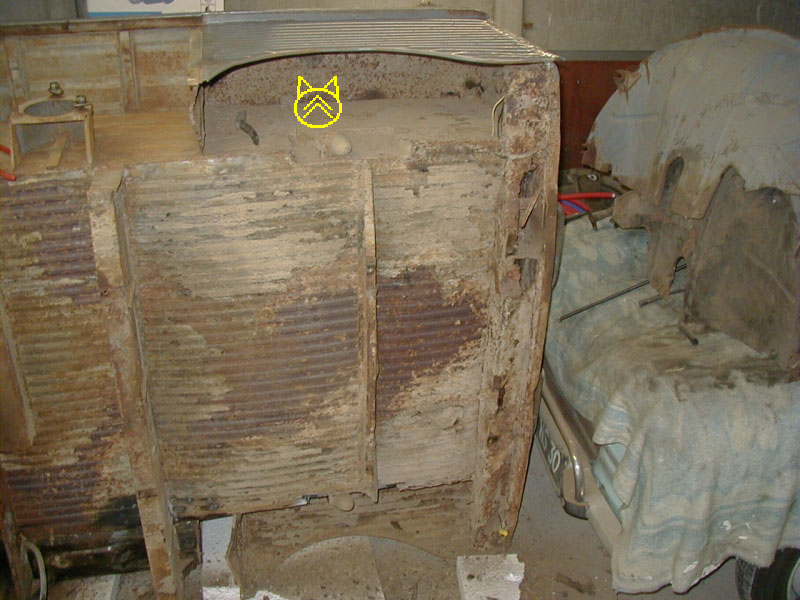

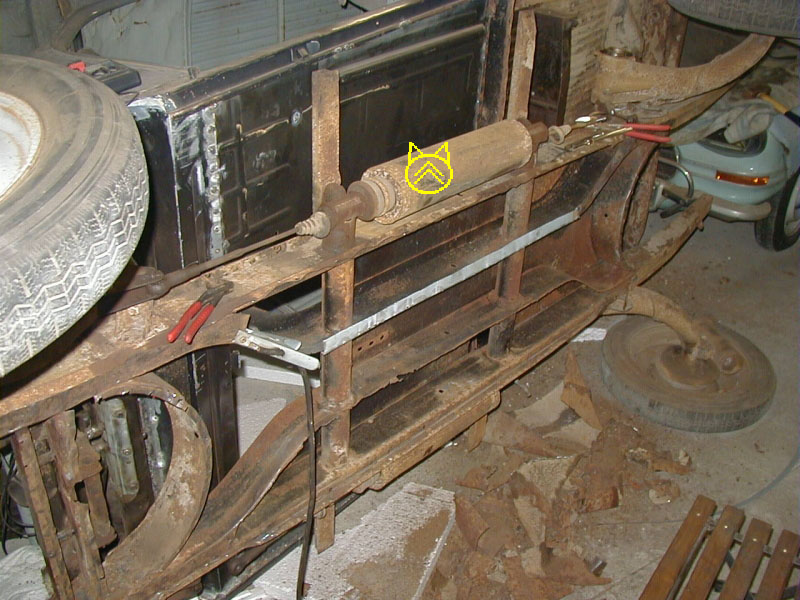

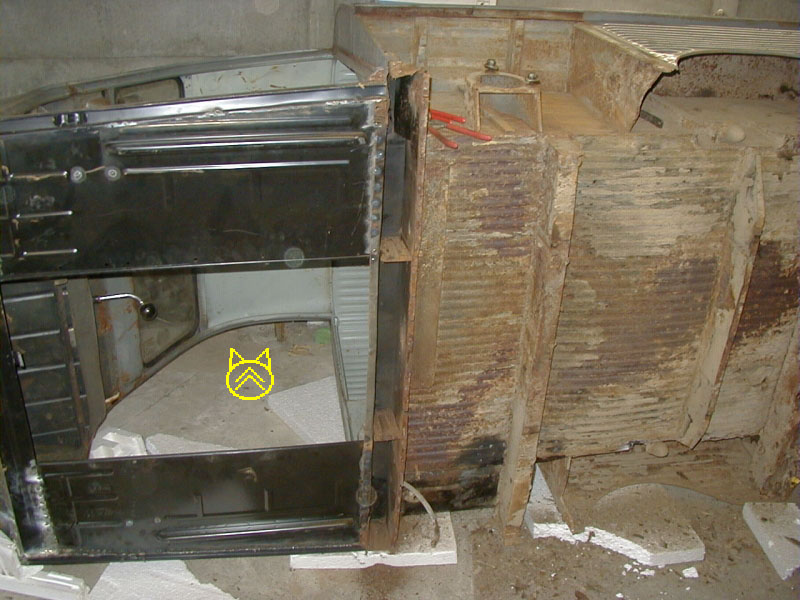

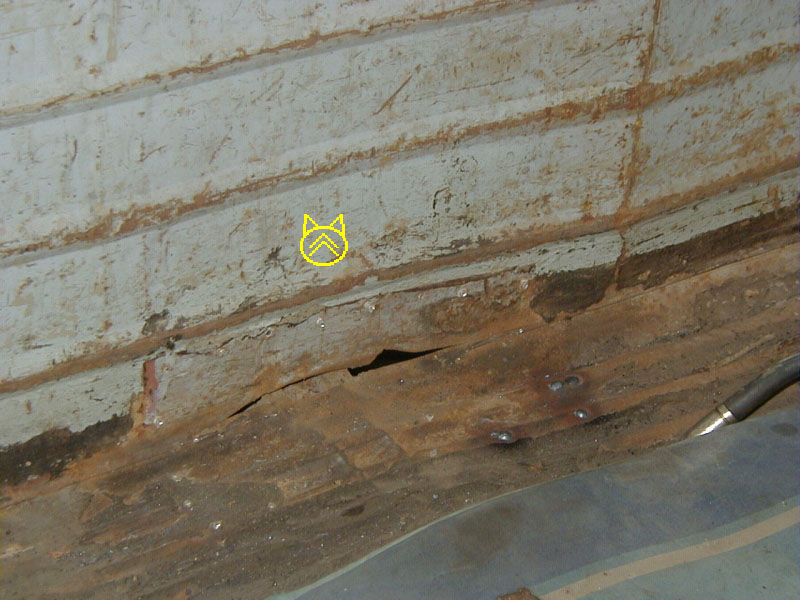

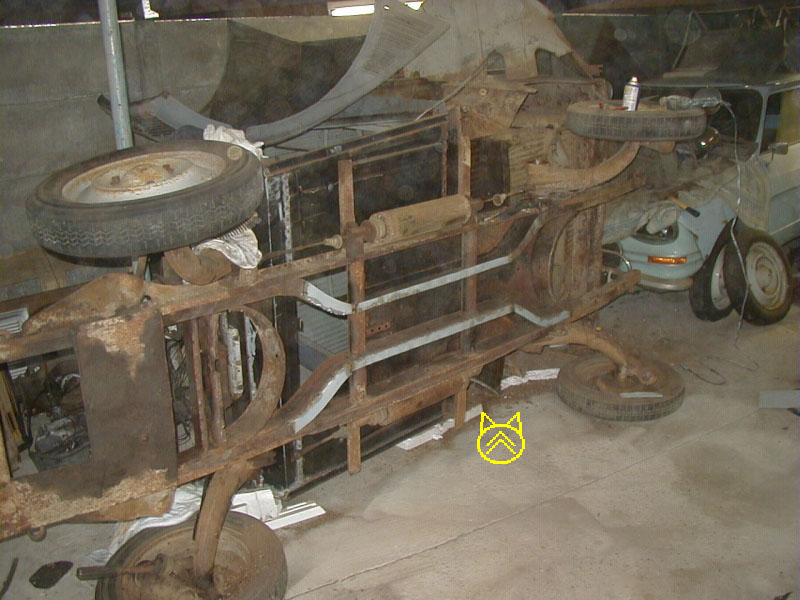

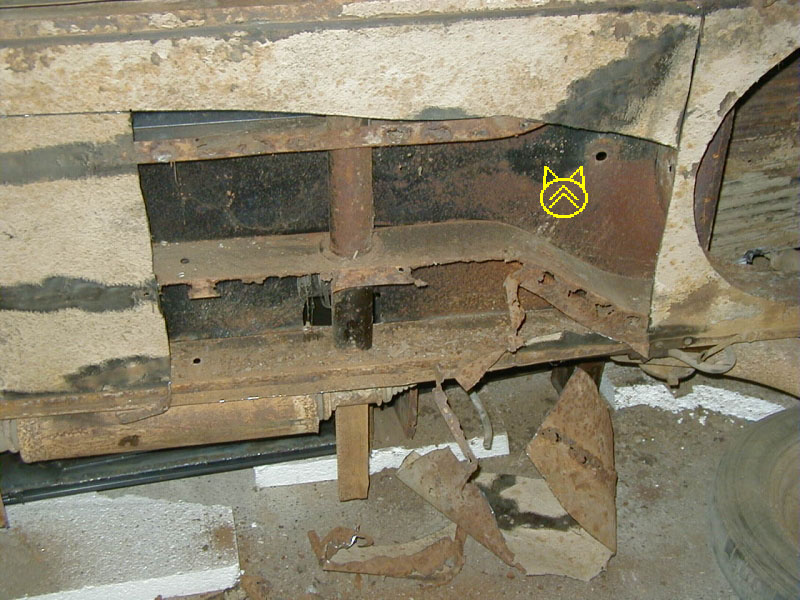

Found some more rot in the lower sections.

Click for full screen Click for full screen

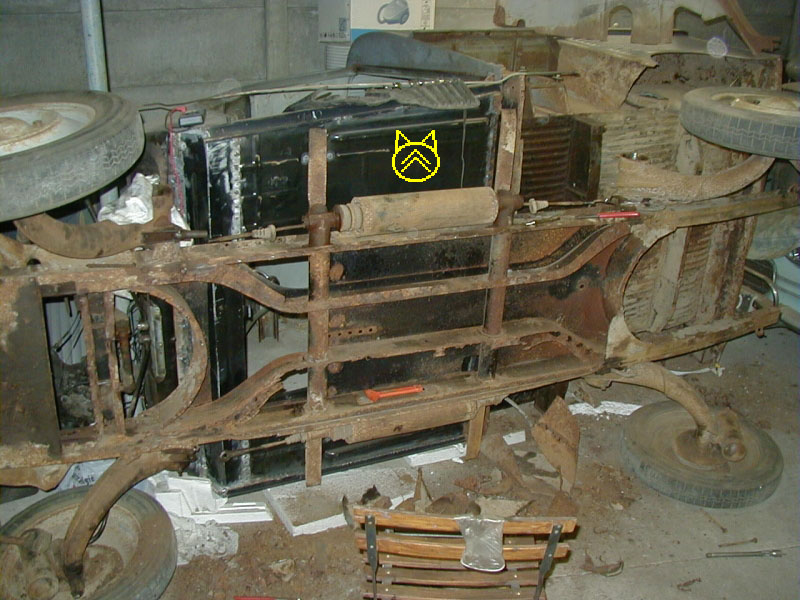

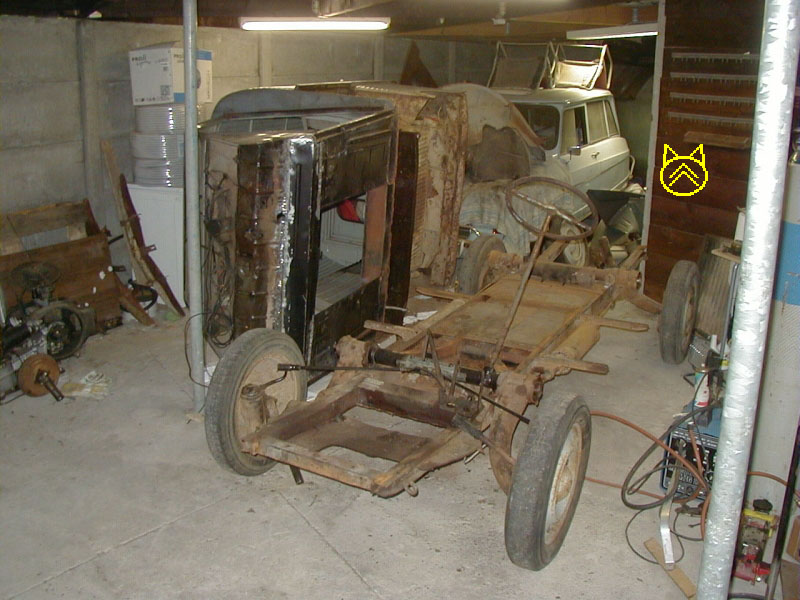

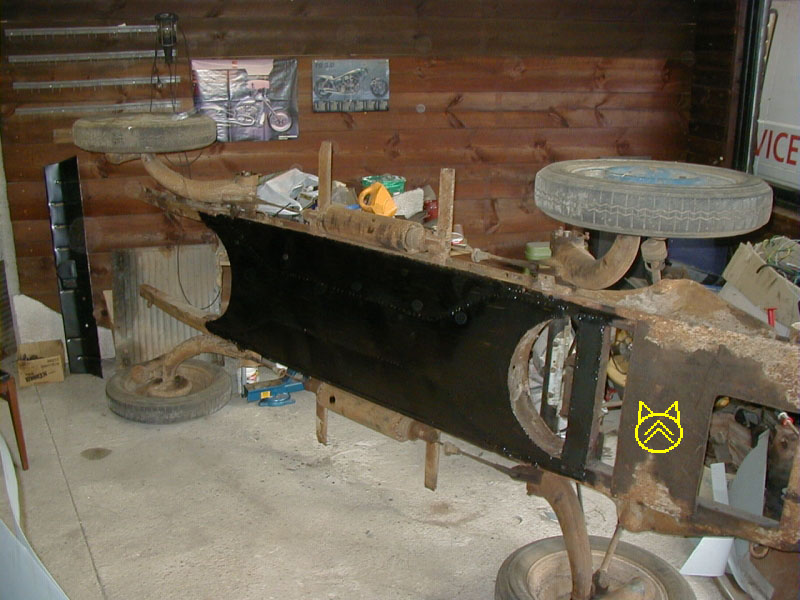

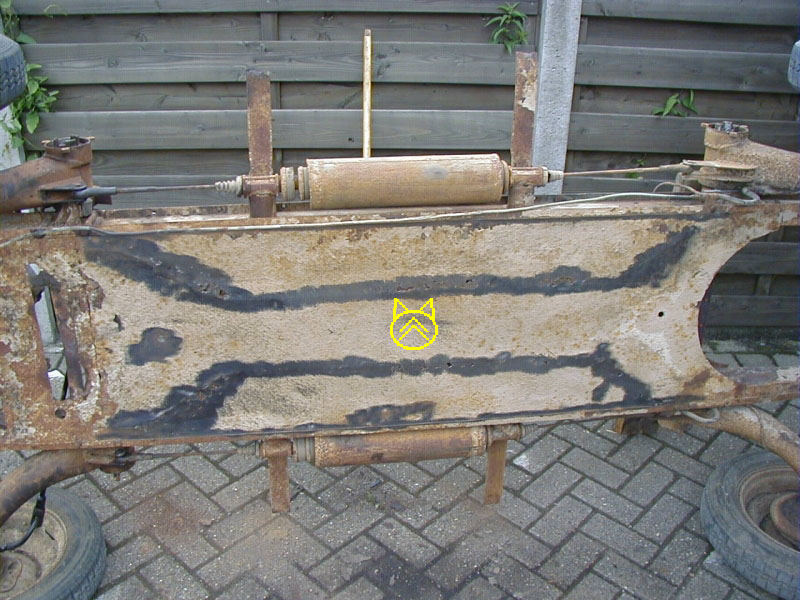

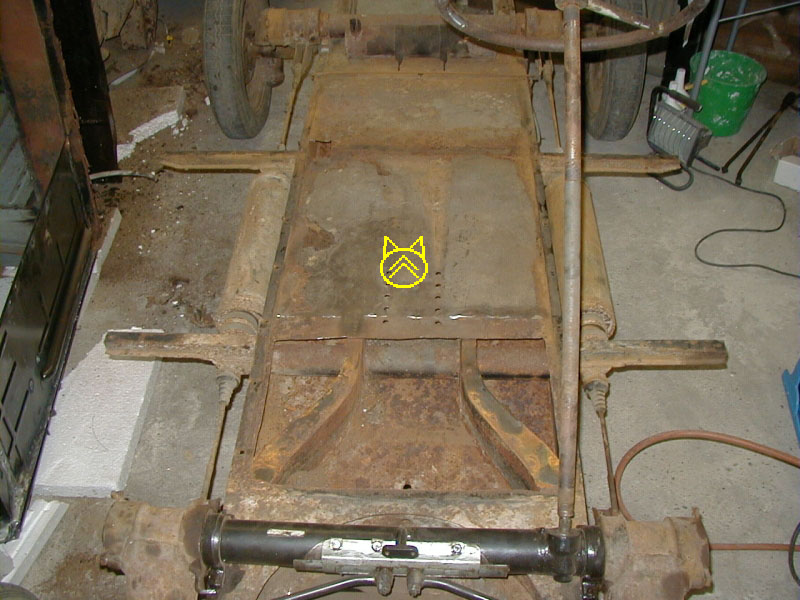

Unexpected disappointment, chassis needs major repairs as well.

Click for full screen

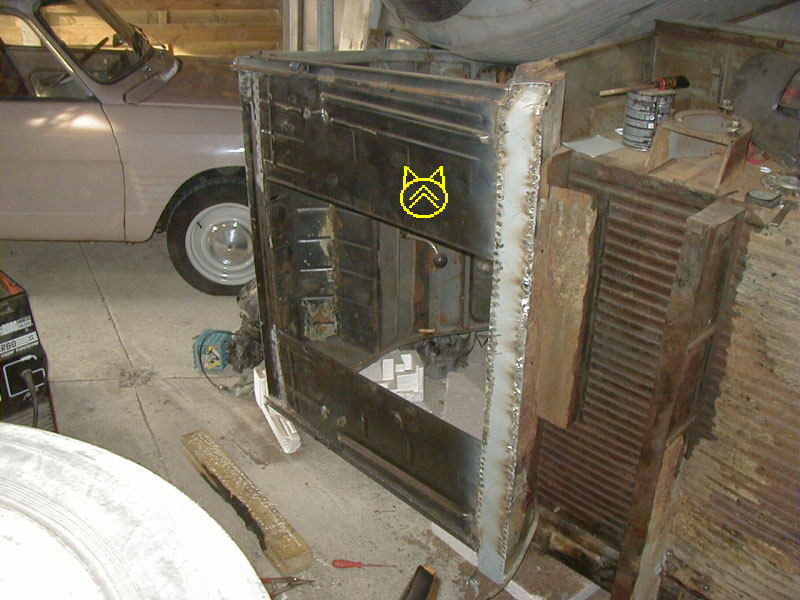

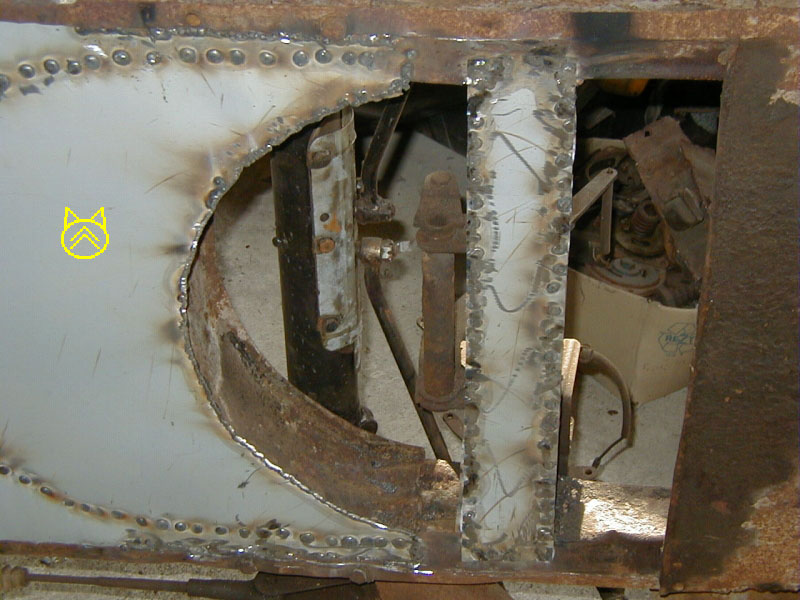

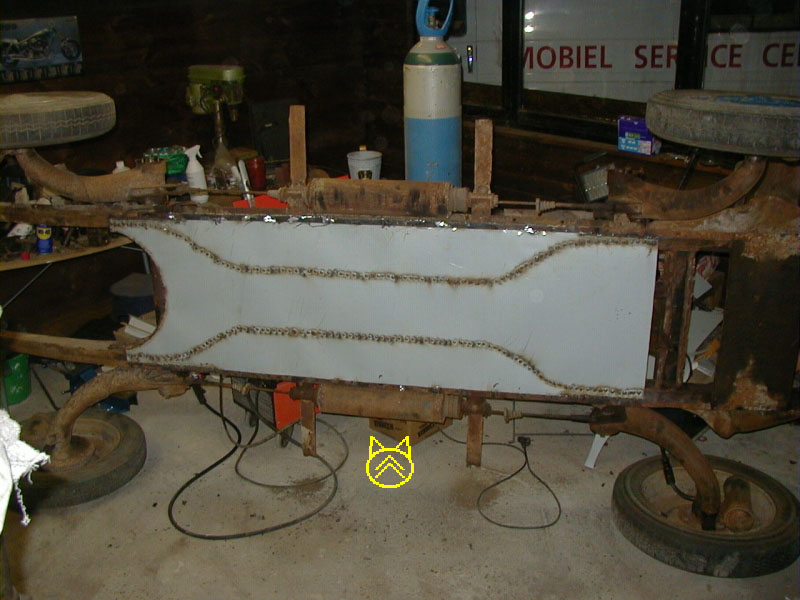

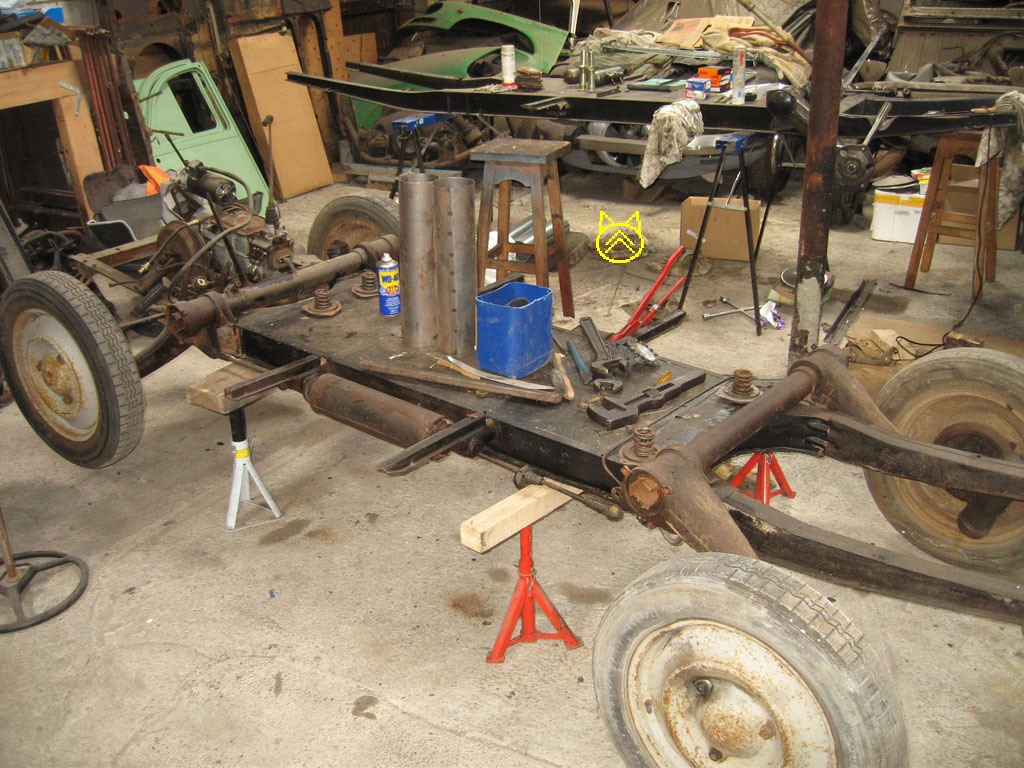

All set for a new round of welding.

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen

Click for full screen

Click for full screen Click for full screen

Click for full screen Click for full screen Click for full screen Click for full screen

Click for full screen Click for full screen

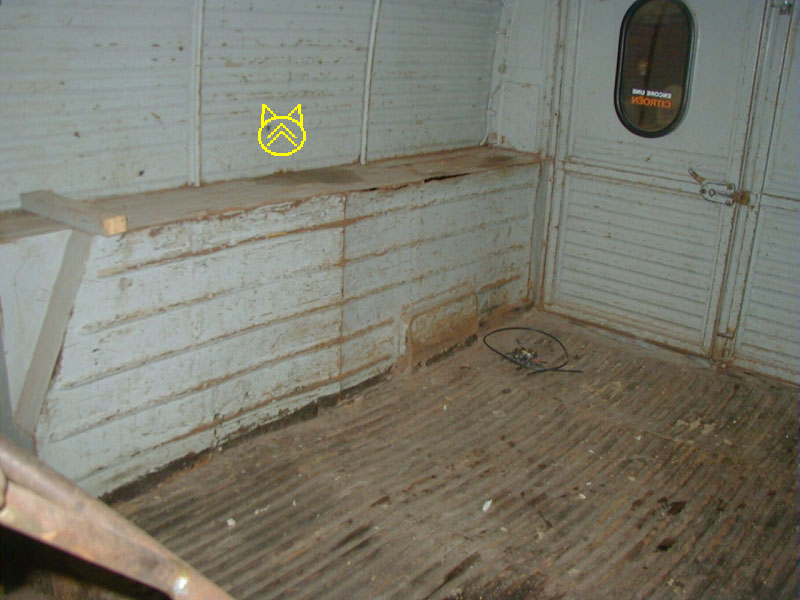

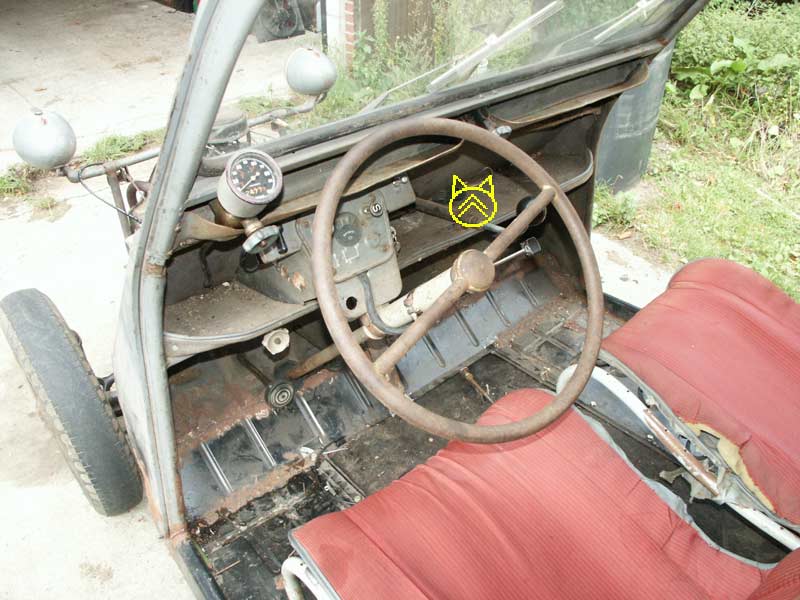

Stripping the interior.

Shortly before Jeroen died, his 2CV returned to my garage. Jeroen wanted to finish the rebuild of his 1955 AZU while I was working on the AZS.

Jeroen's idea for the AZU was to keep the car as original as possible. Thus no shiny respray or new interior trim, just rebuild the mechanics and repair what was necessary otherwise.

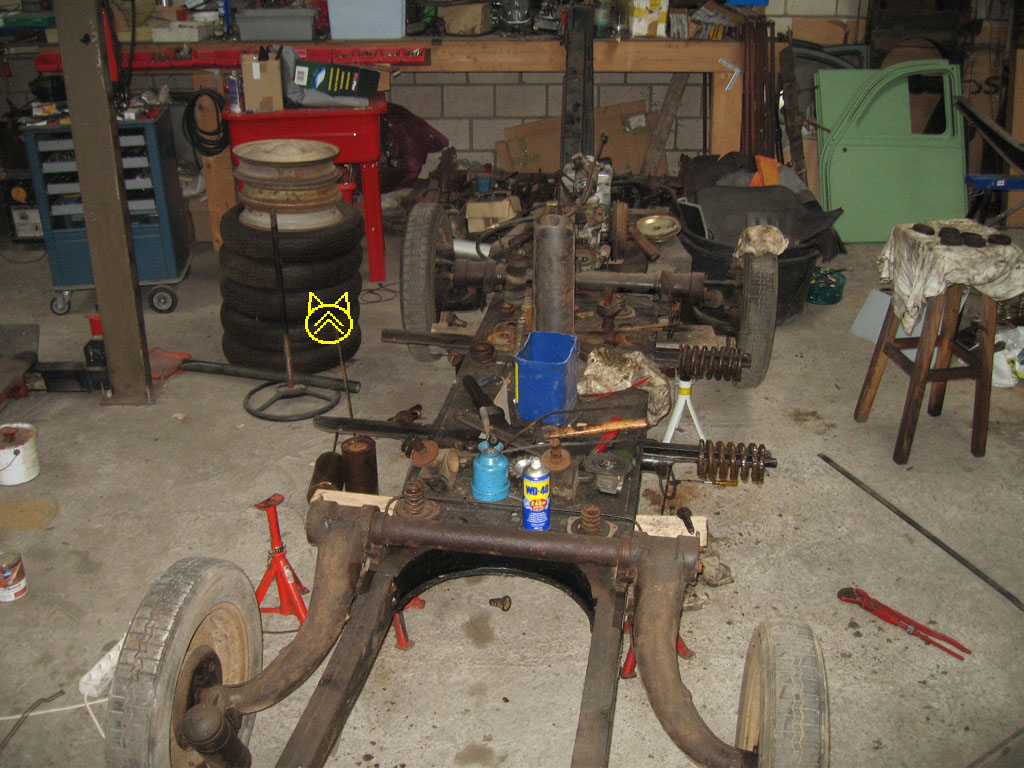

For the final stage he had taken the car apart again, sowhen I picked up this project, it was in pieces and shatered over several square meters of the garagefloor.

Of course I have respected his ideas regarding the rebuilding of this car.

Suspension, steering, brakes were already rebuild. The Chassis was repaired ; although some areas of the body and chassis still needed further repairs. It was a big puzzle put everything back together again, since I'm by far not the 2CV expert Jeroen was.

The result can be seen in the pictures.

Click for full screen

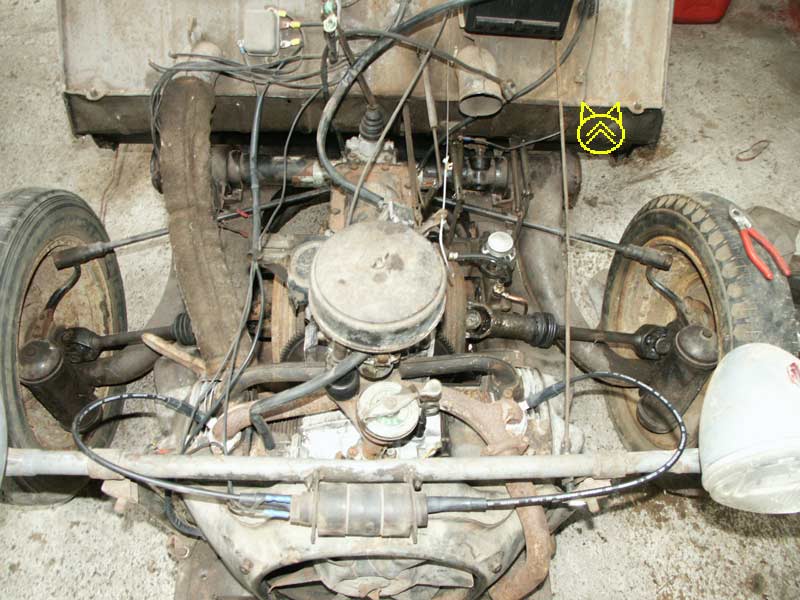

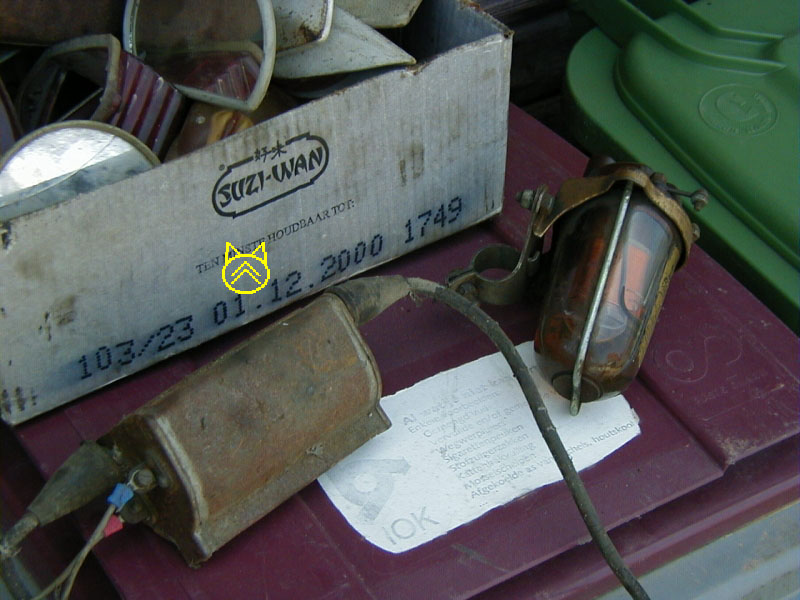

Did you notice the "rubber" coil ?
Click for full screen Click for full screen
Click for full screen

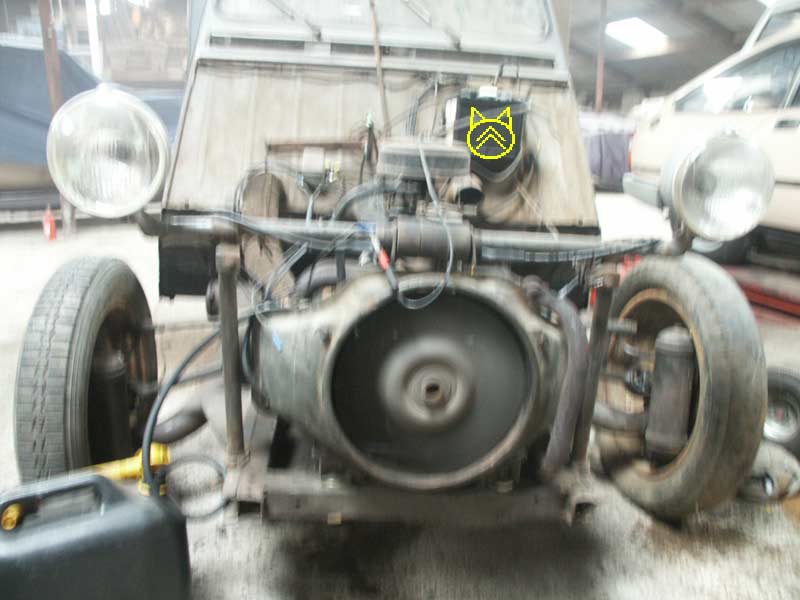

Ready to be started for the first time
Click for full screen
And running ….!!!
Click for full screen

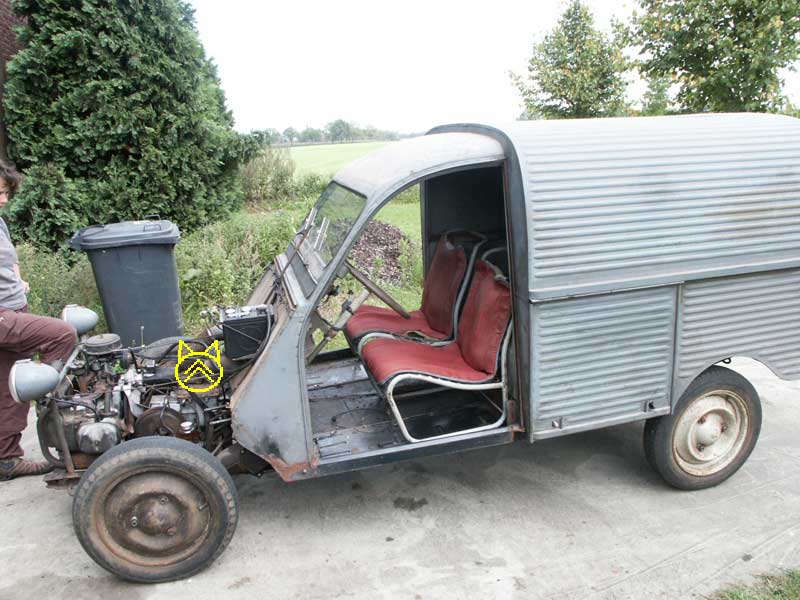

Almost there… after the first testrun…
Click for full screen Click for full screen
Click for full screen Click for full screen

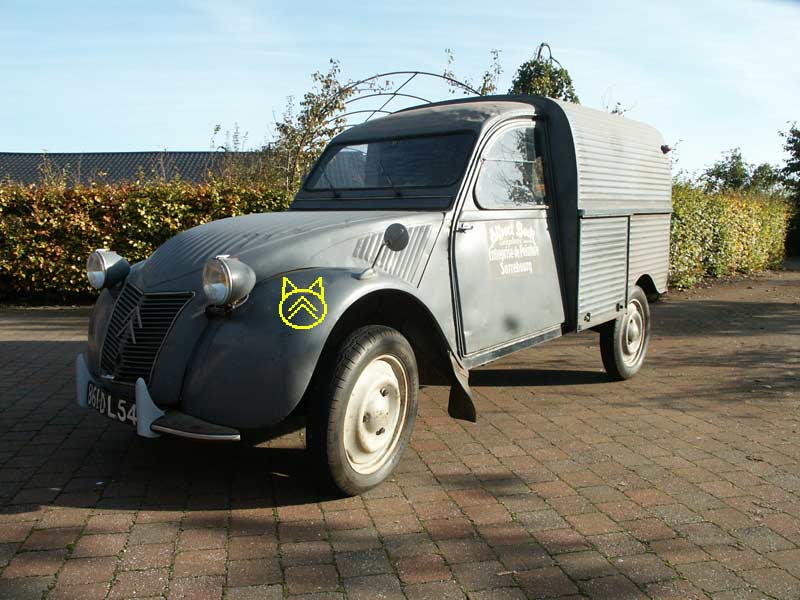

And the final result…
