Citroën MAZU

© Copyright: J.Cats.

Click for full screen

A Citroën what? A Citroën MAZU? Well, this is my mum's AZU, put the 2 together and you get MAZU. When you know that in Dutch Mum = Ma, then MAZU makes even more sense...
So what about this special little van?

After some changes of mind the future owner of this car decided she'd really like a 2cv van. I was running this van at the time and it was considered suitable.

Click for full screen Click for full screen

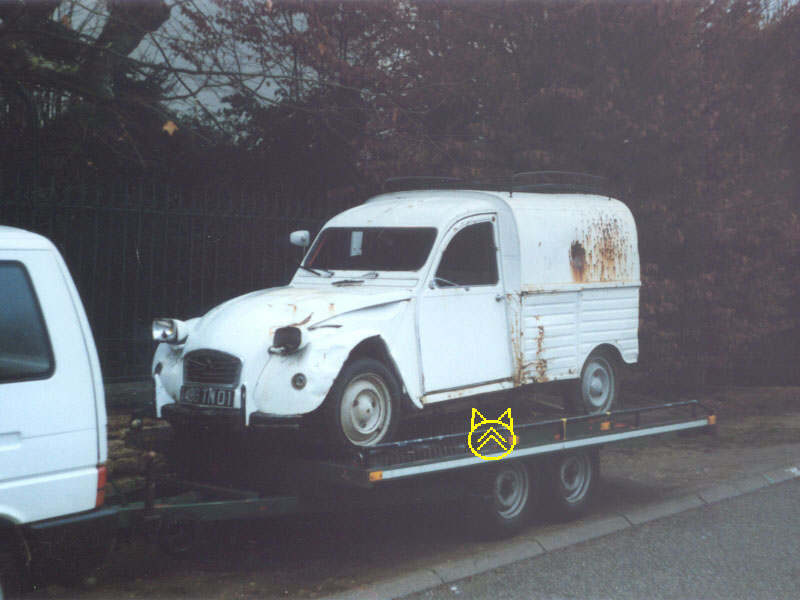

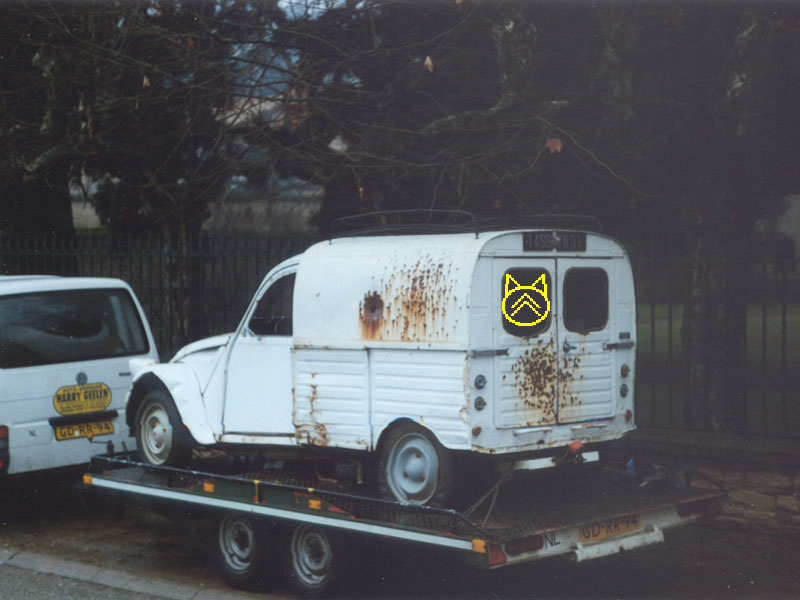

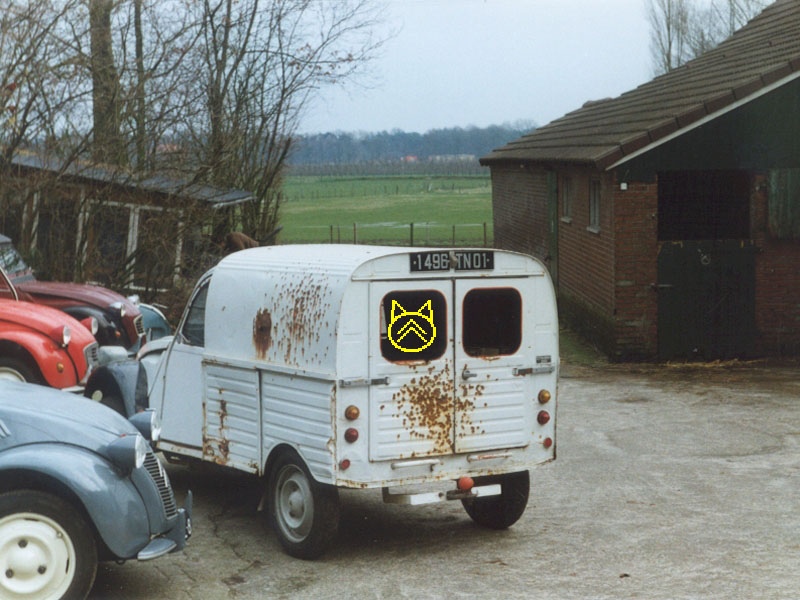

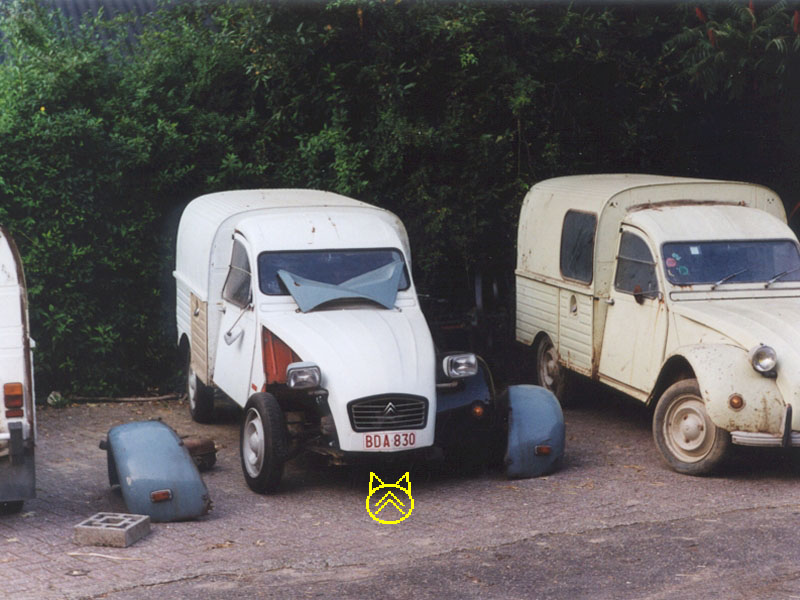

as found...

When found it didn't look too good but it was not that bad. The 435 engine and gearbox were replaced by a 1973 602 engine and gearbox. All lights were fixed, the brakes were rebuilt and it ran pretty fine.

Click for full screen Click for full screen

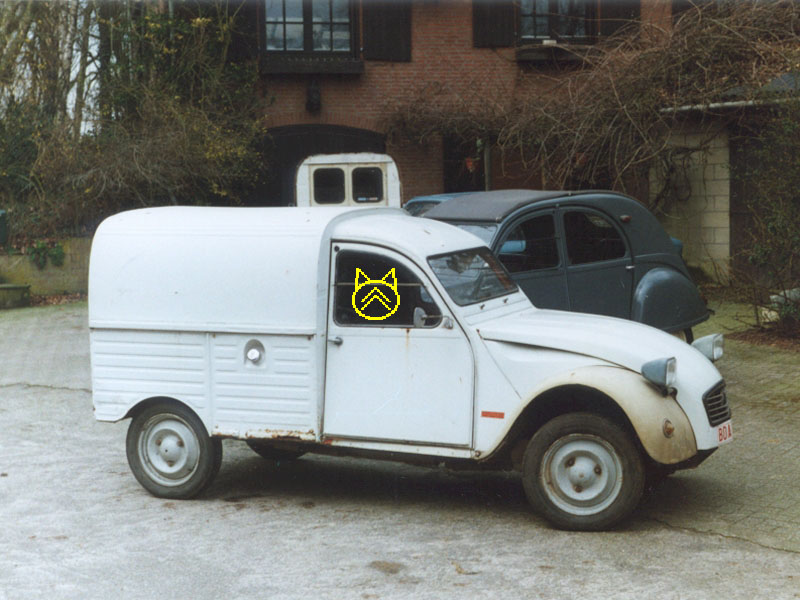

Up and running

It still needed some exterior work though. At first the idea was to make it a running restoration. But the future owner wanted a truly NEW 2cv. The requested specification was a bit altered, it would have to have disc brakes and a stronger engine as well. And it should look like a 50s 2cv van!

Click for full screen

All the mechanicals were transferred over to a 1973 AKS P.O.

Summer 2000

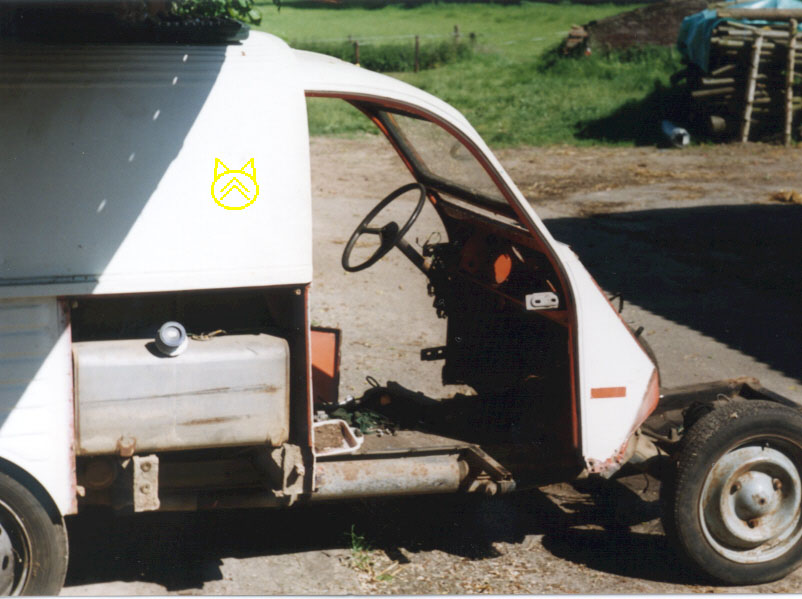

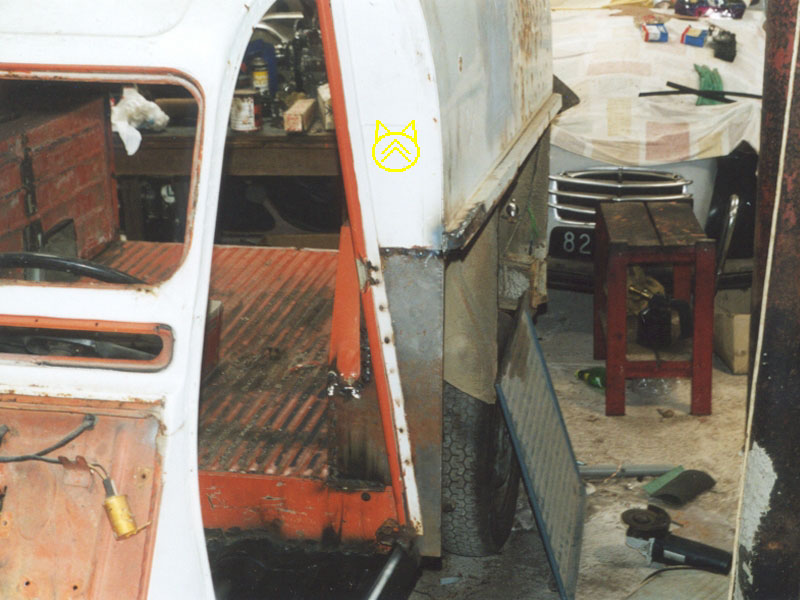

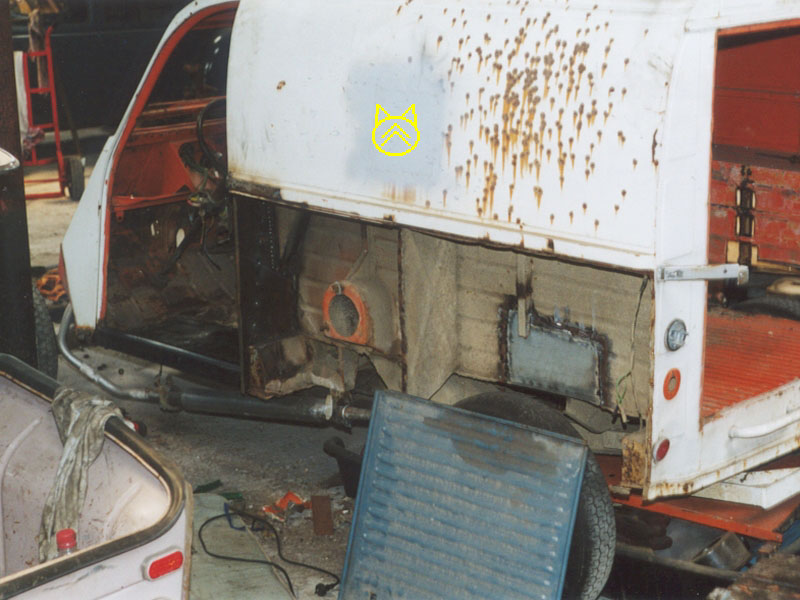

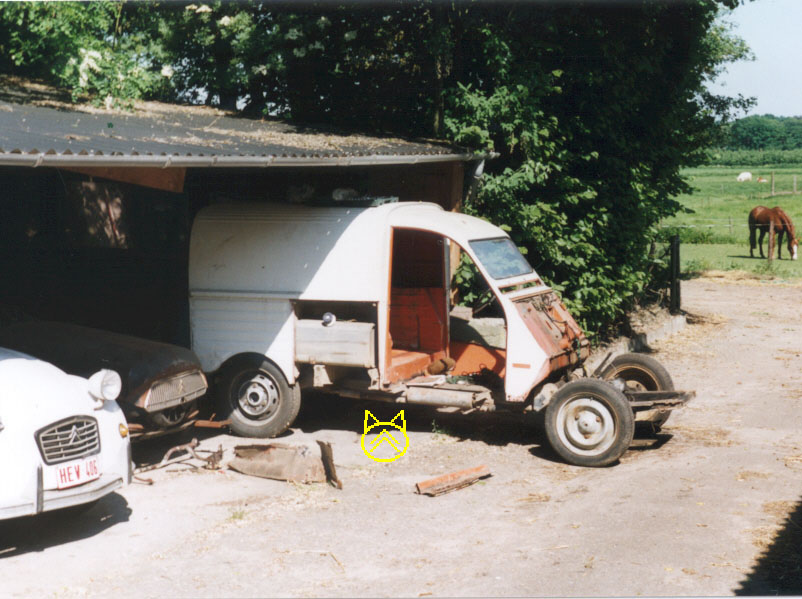

The car is stripped leaving a rolling shell. All slightly rusty bit were cut out off the body, starting with floors and sills. The rear wings are cut off as well, these will be replaced with new small ripple ones.

Click for full screen Click for full screen

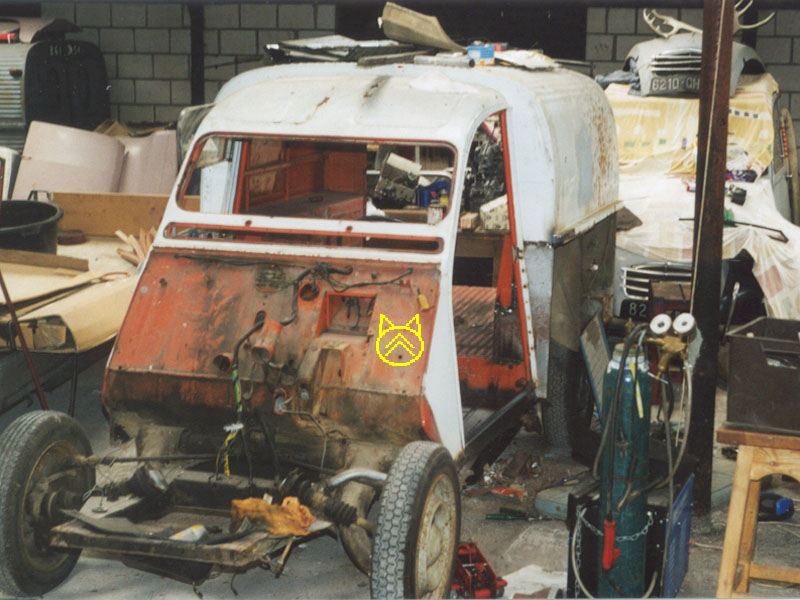

Naked...

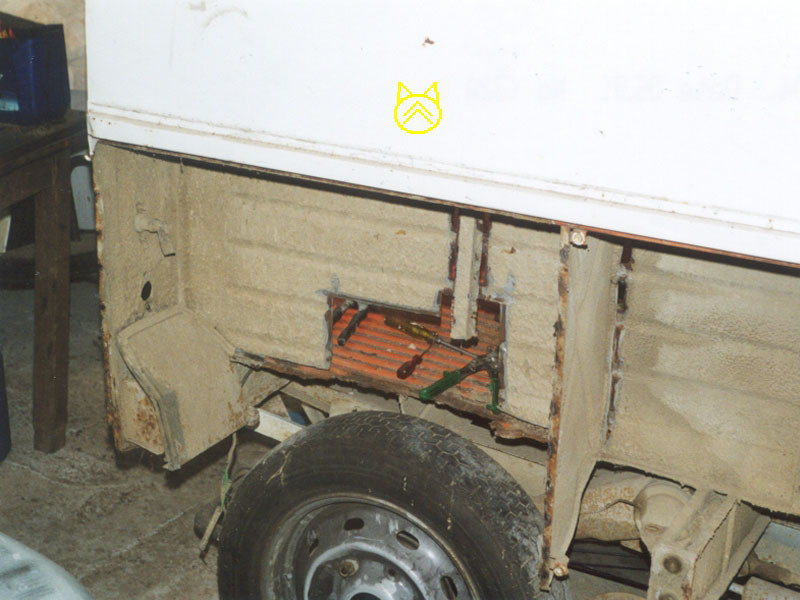

During the spring of 2001 the work is continued. After properly cleaning suspected areas with a high speed rotating wire brush, additional rust is found. So more cutting and repairing is called for.

Click for full screen
Still not quite there, june 2001...

Click for full screen Click for full screen

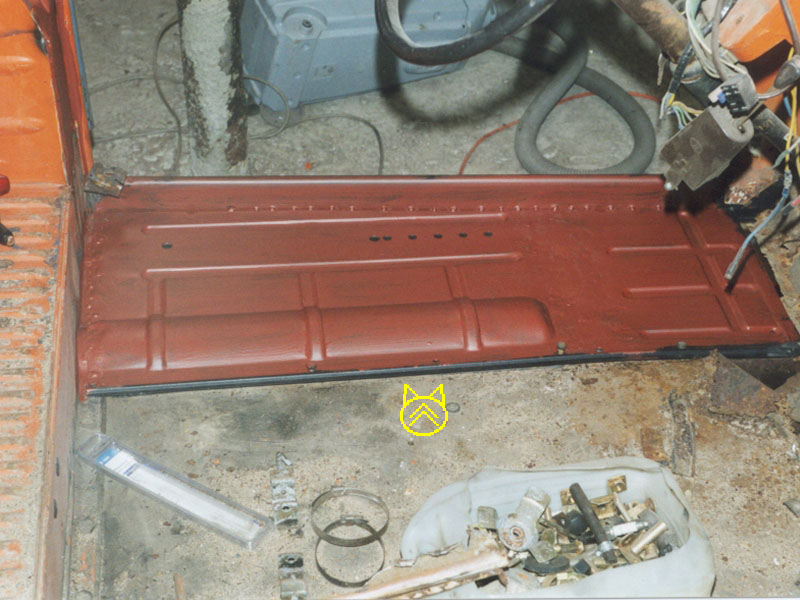

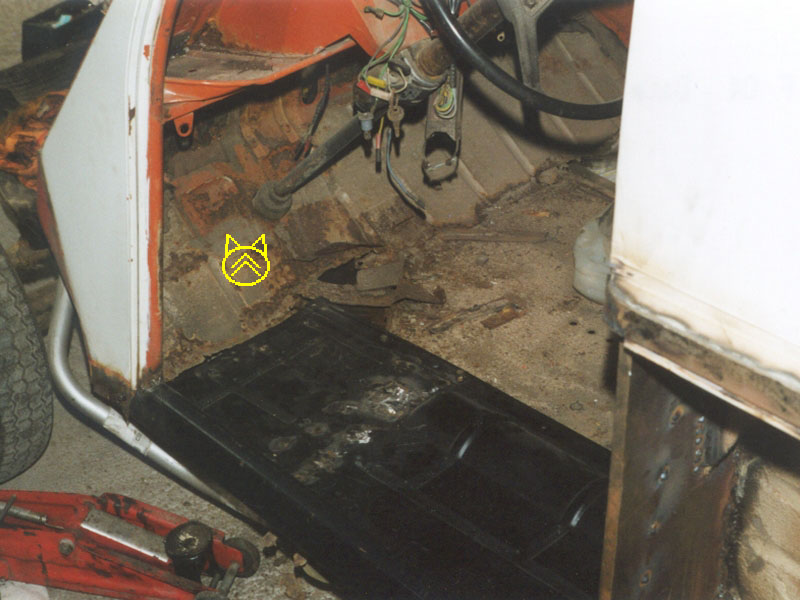

Fitting the new floors and sills.

Click for full screen Click for full screen

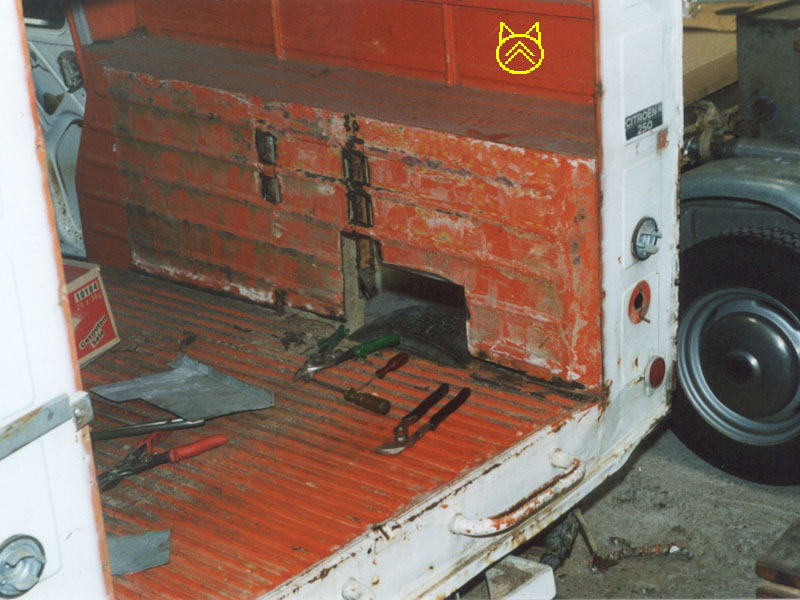

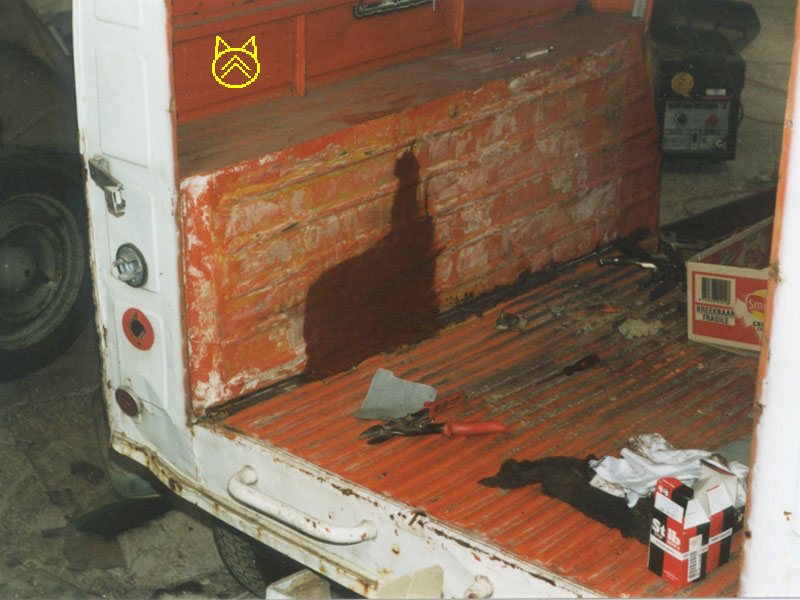

New separation panel.

Click for full screen Click for full screen

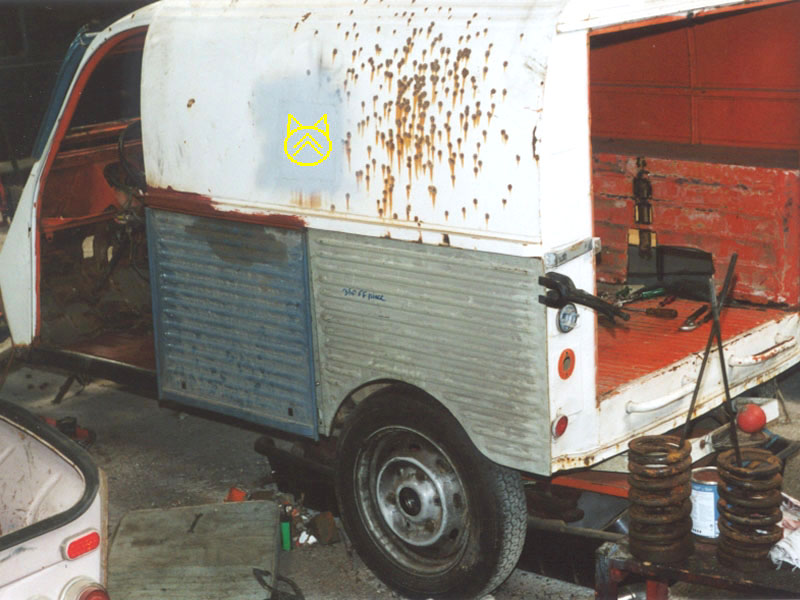

Bump stops removal, one down, one to go.

Click for full screen Click for full screen

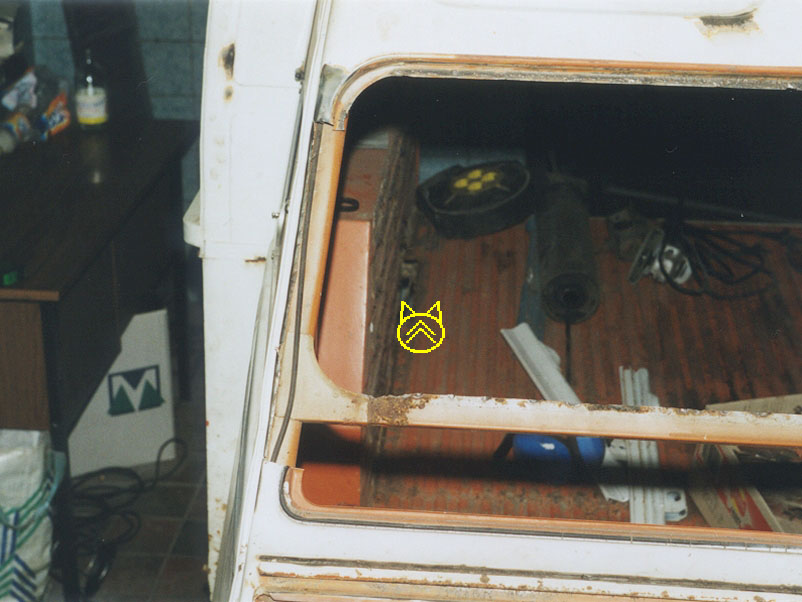

Before and after...

November 2001

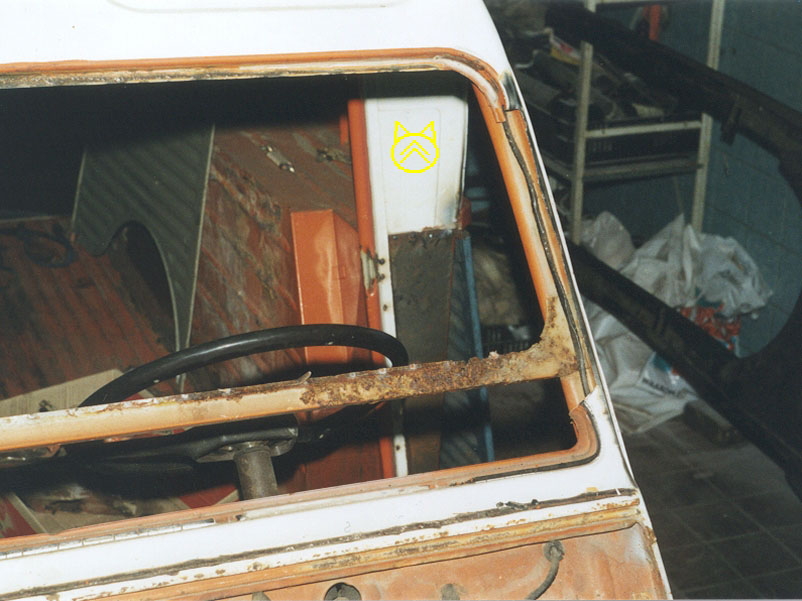

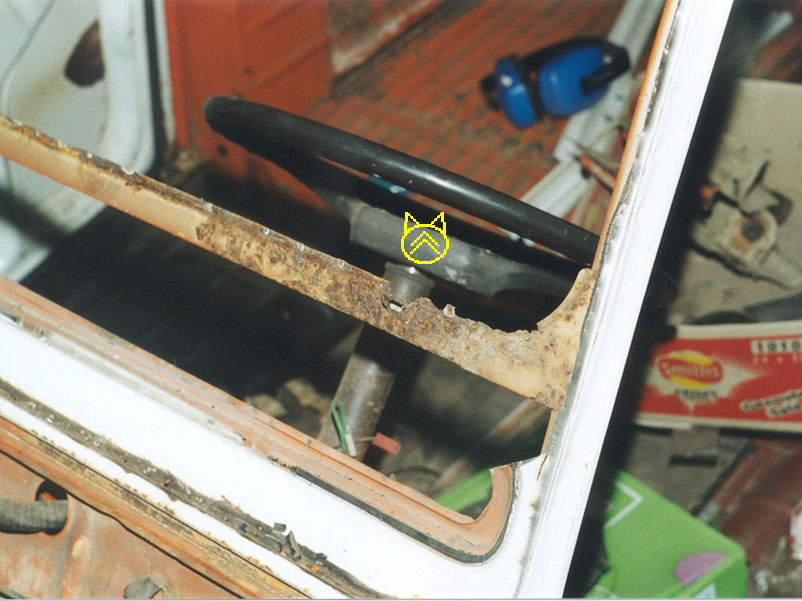

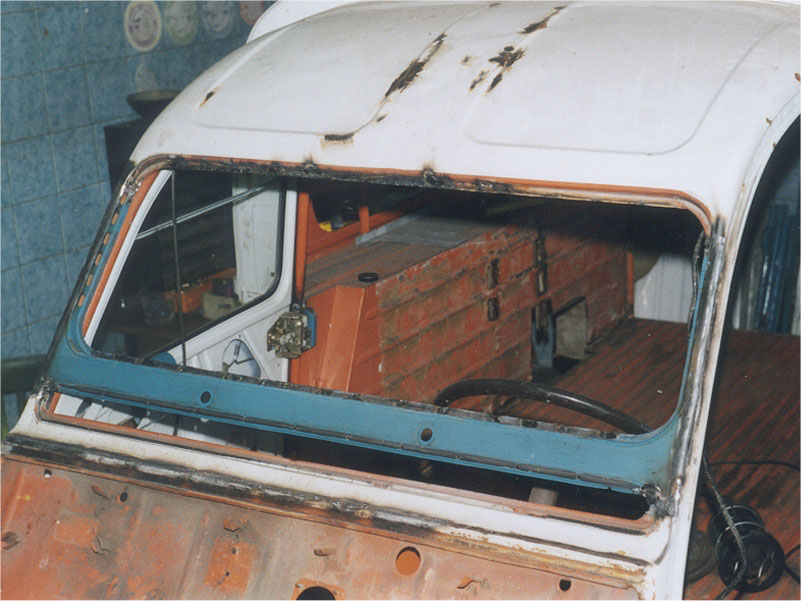

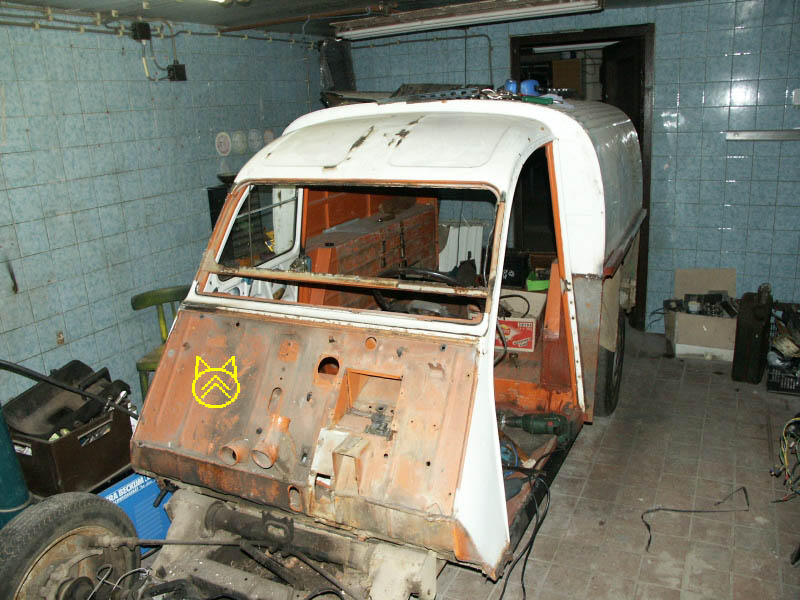

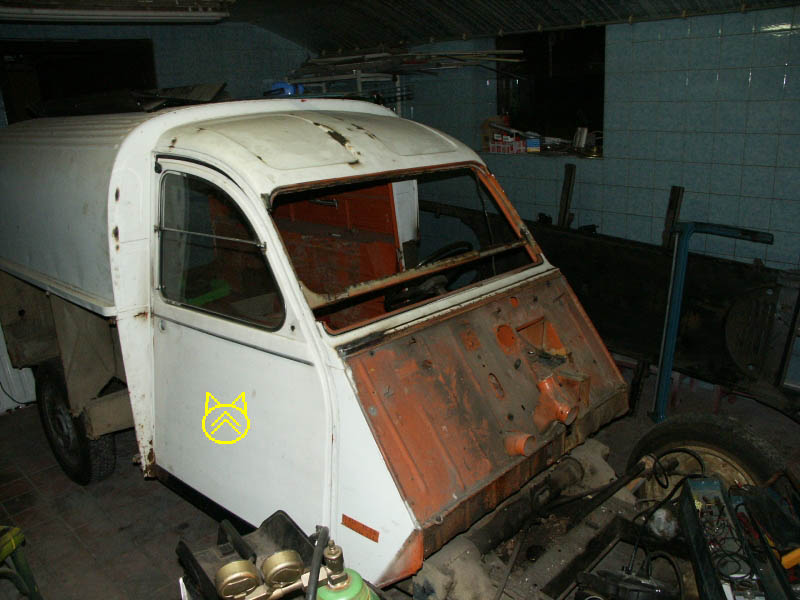

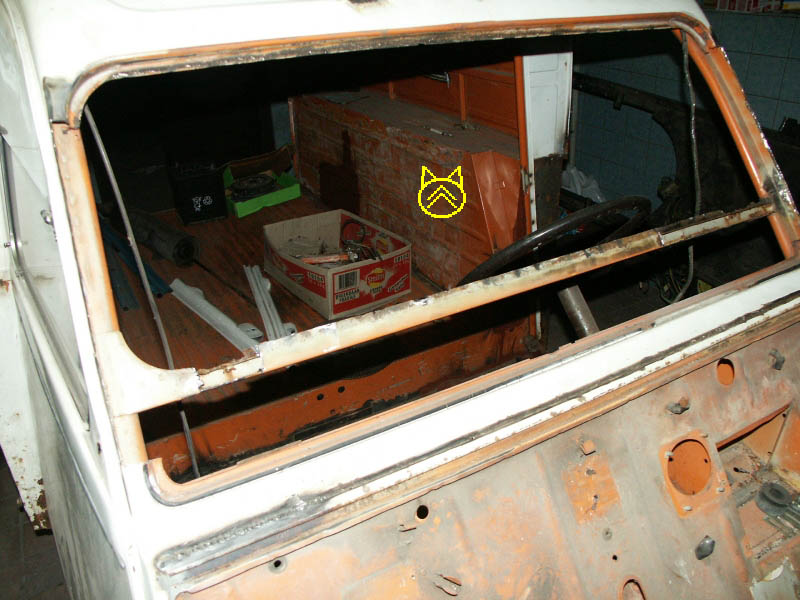

Work is continued on the area around the front windscreen. Also, the door locks are converted to modern security type.

Click for full screen Click for full screen Click for full screen

December 2001
The welding is progressing again.

Click for full screen Click for full screen

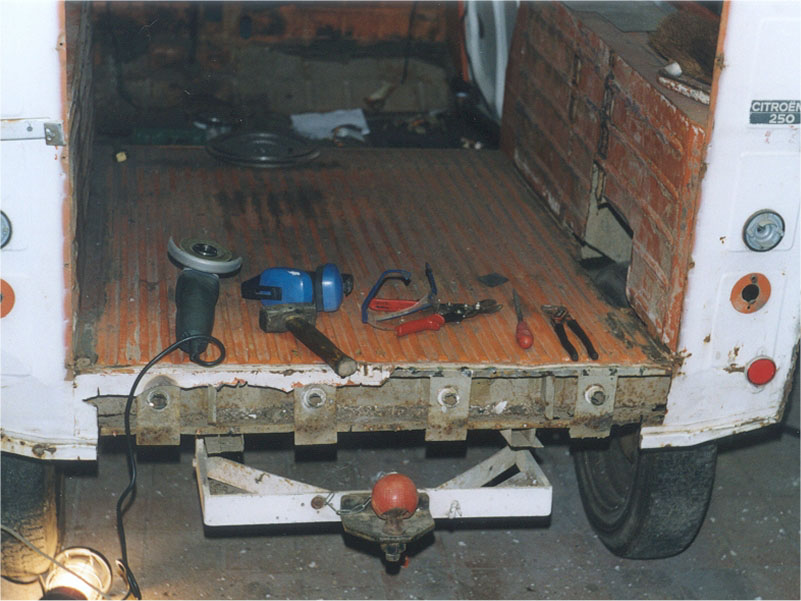

Some overview shots.

Click for full screen Click for full screen

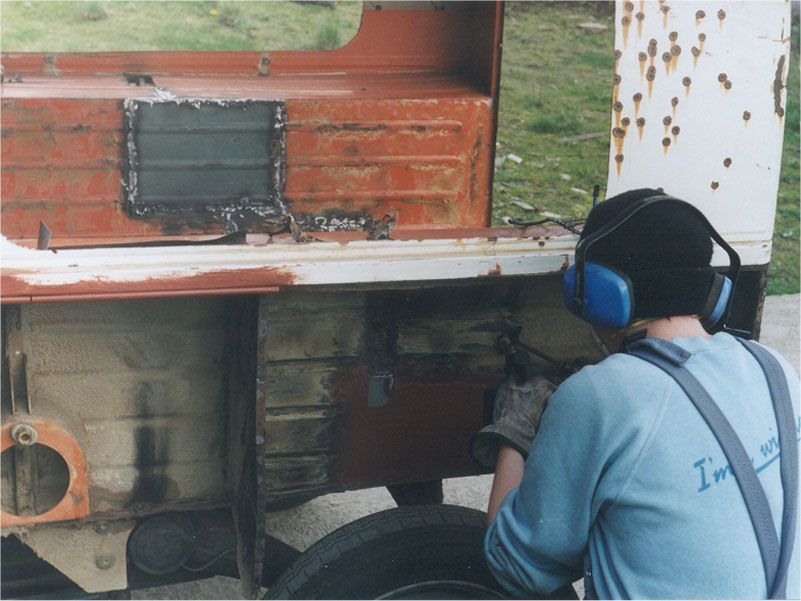

The rusty bits cut out.

Click for full screen
Donor piece welded in.

January 2002
Is there an end to the rust?

Click for full screen Click for full screen

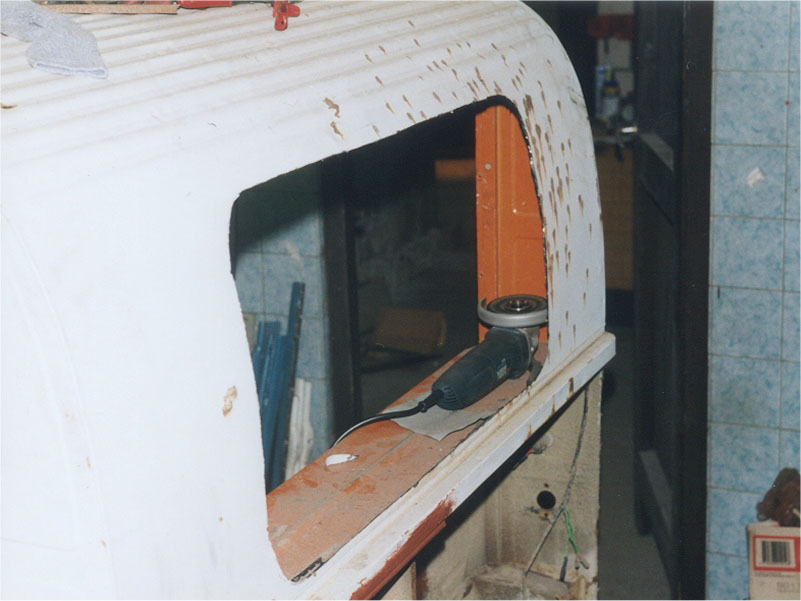

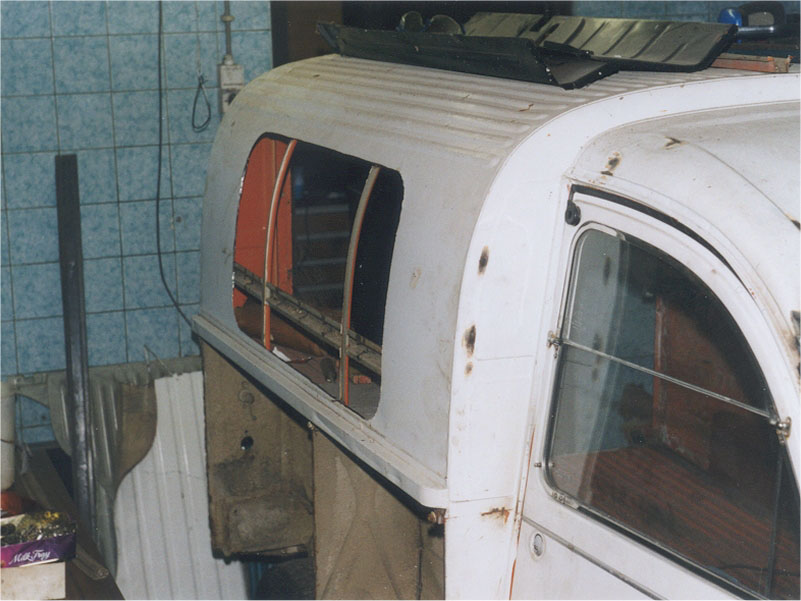

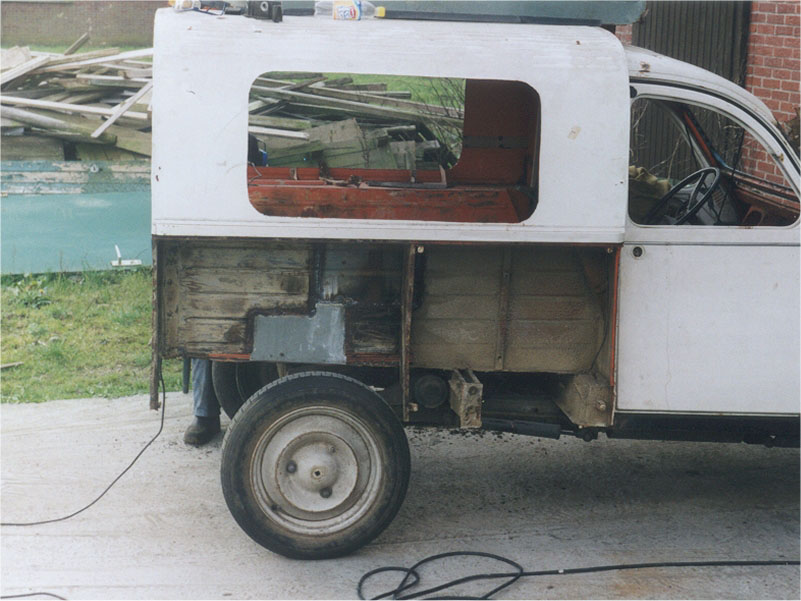

Holes for the rear windows cut, strengthening removed.

Click for full screen Click for full screen

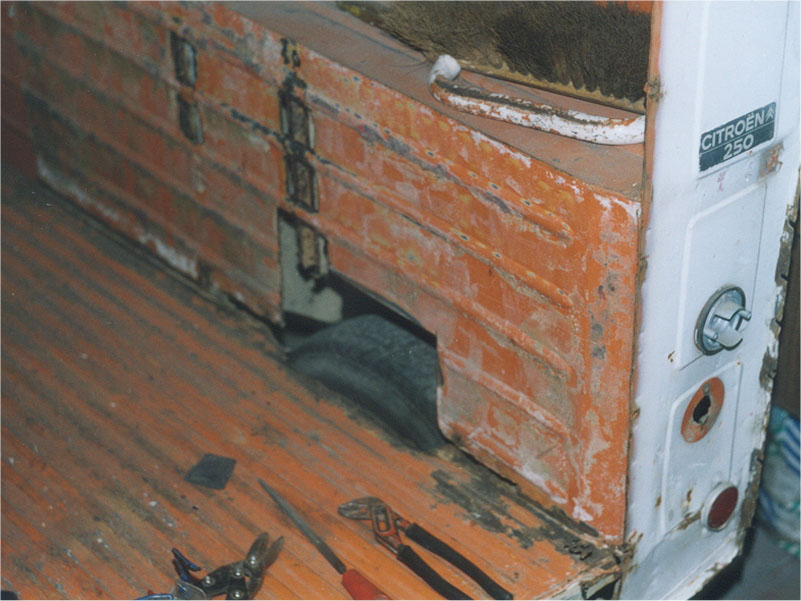

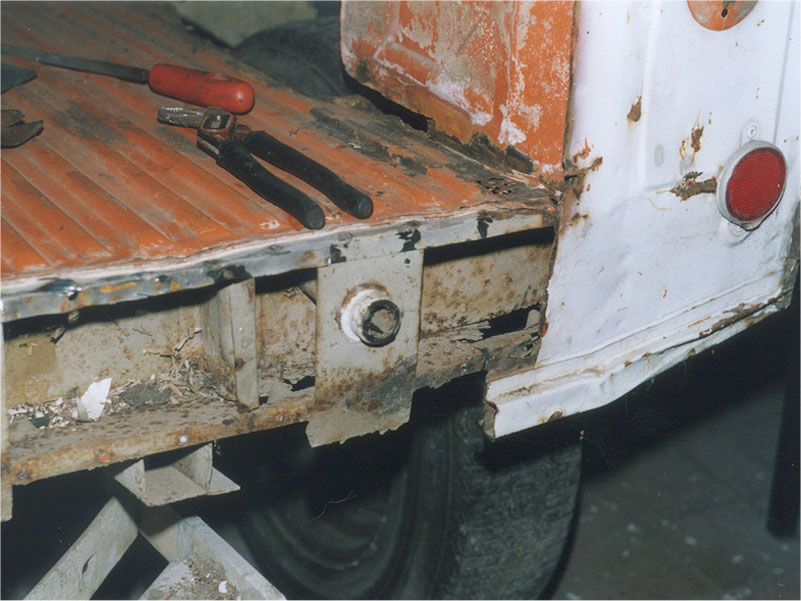

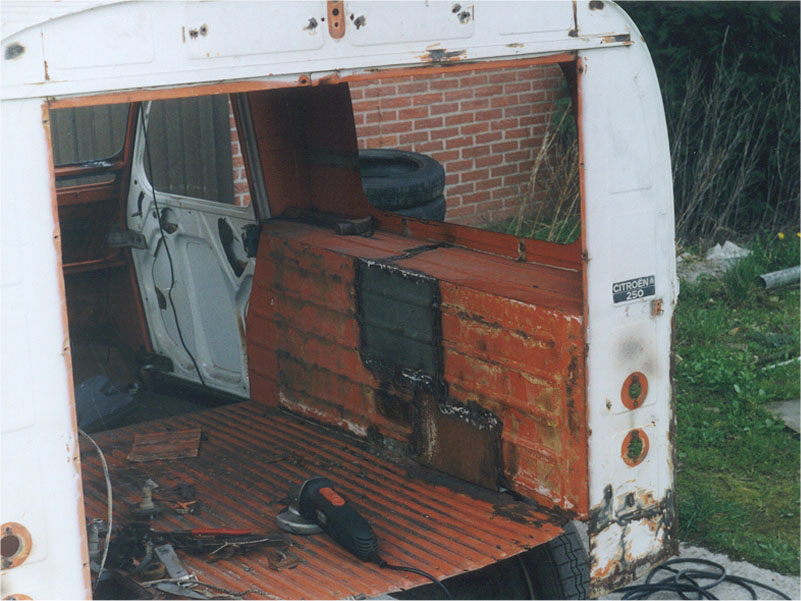

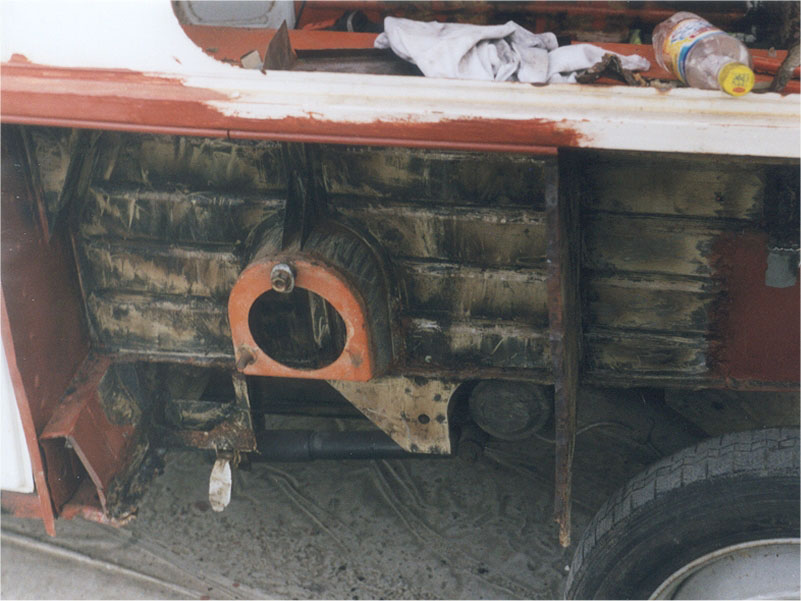

Rusty rear end and rusty right inner wing.

Click for full screen Click for full screen

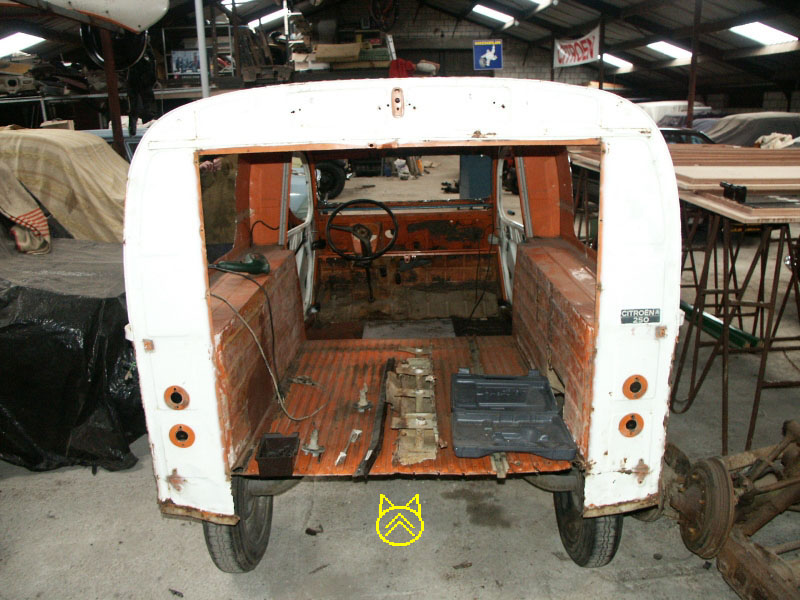

And out goes the rusty rear end, not much left now.

Click for full screen Click for full screen
Removing the body seal, and suprise suprise, even more rust!

Click for full screen Click for full screen

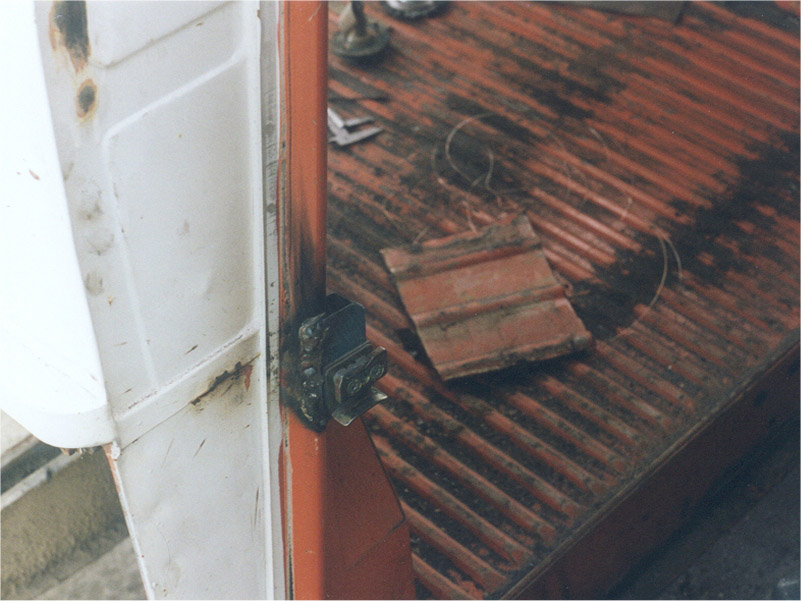

Security doorlock and problematic inner wing being fixed with even more donor parts.

Click for full screen Click for full screen
Trial fitting and no more underseal (but more rust hidden underneath!).

Click for full screen Click for full screen

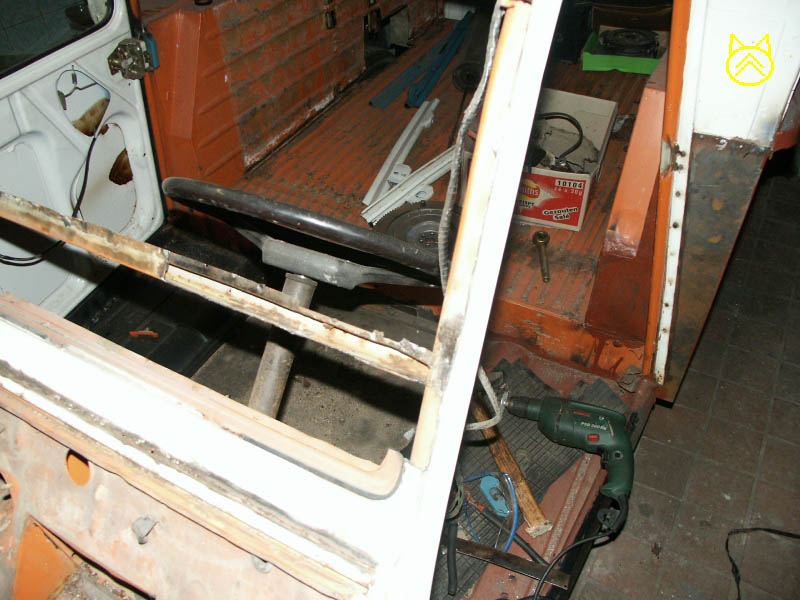

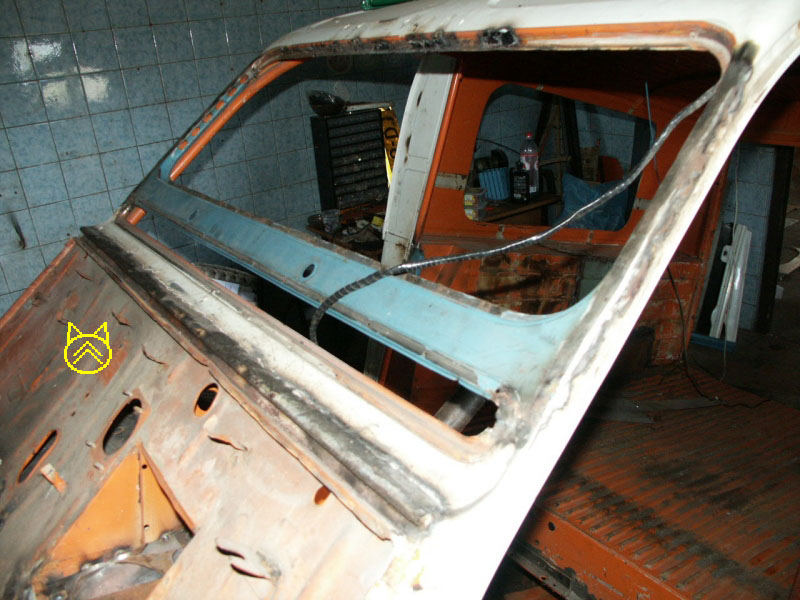

Footwell, bulkhead and windscreen surround welding.

Click for full screen Click for full screen

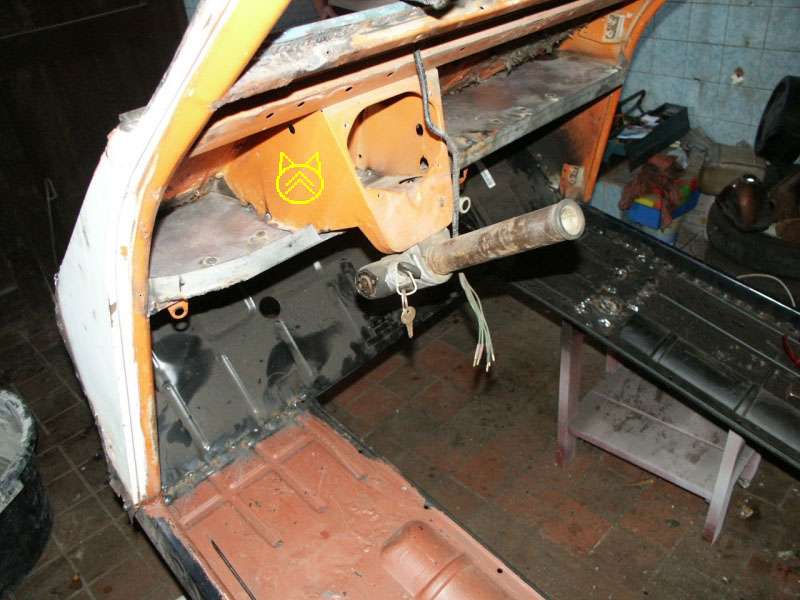

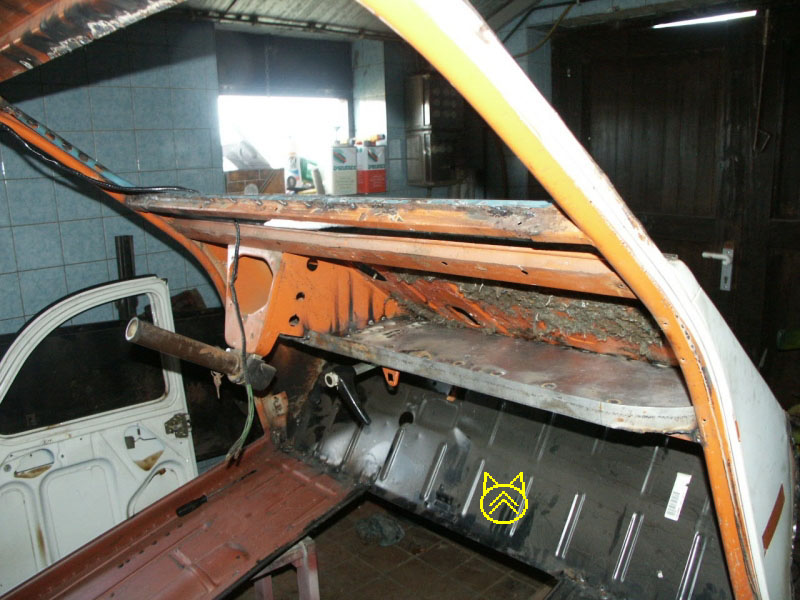

New dash shelf, increasing structural rigidity greatly.

Click for full screen Click for full screen

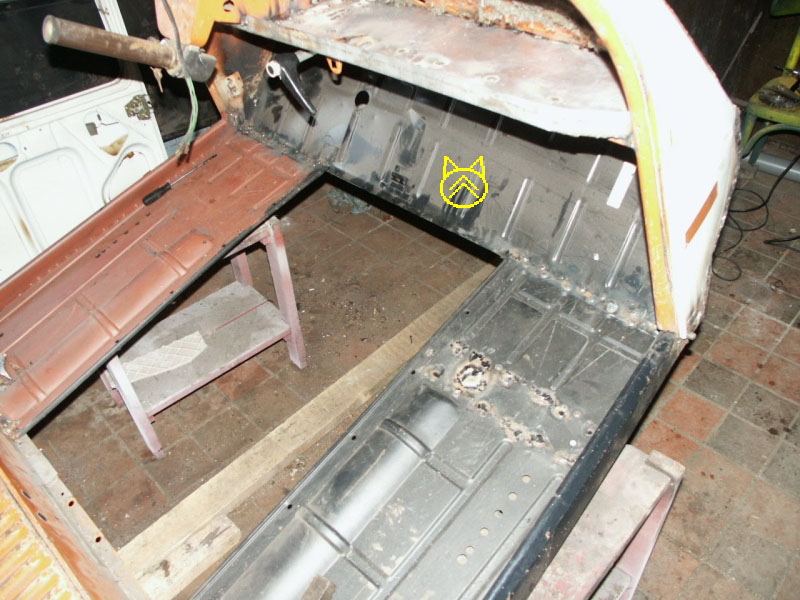

Front finished, starting on the rear end.

Click for full screen Click for full screen

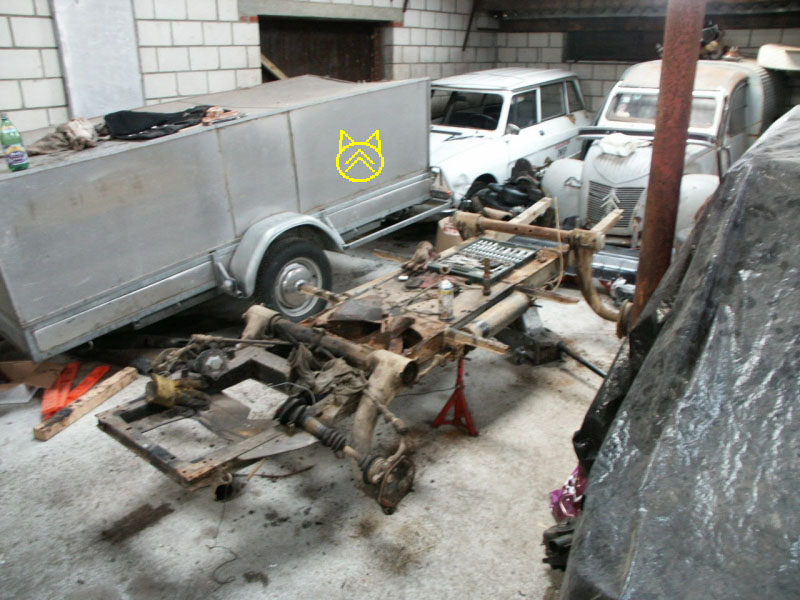

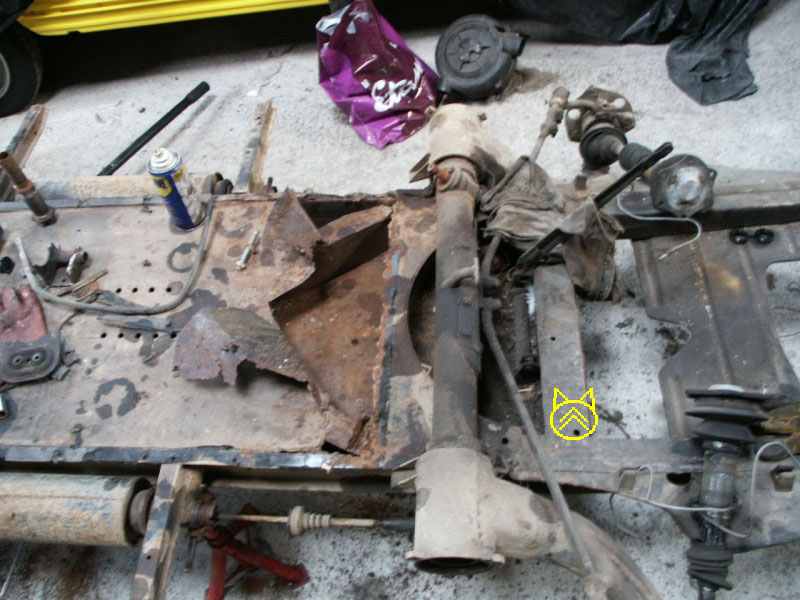

Stripping the chassis.

Click for full screen Click for full screen

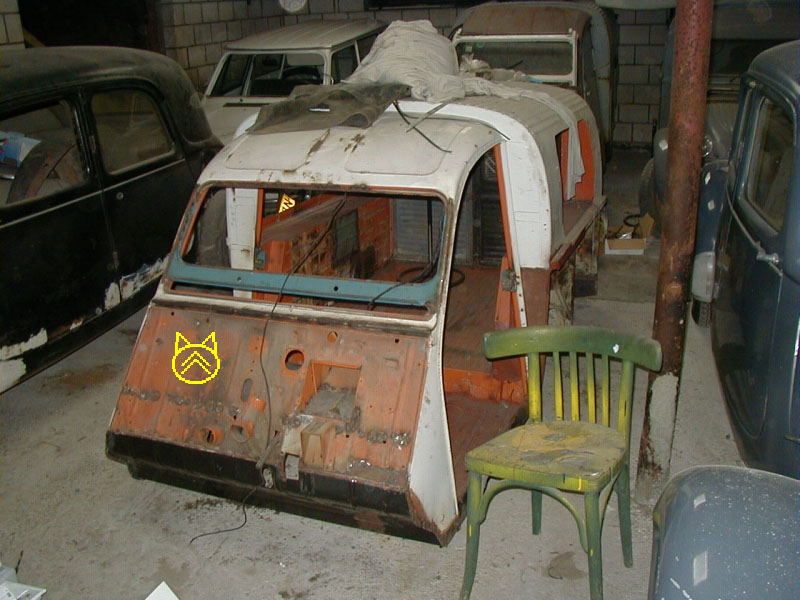

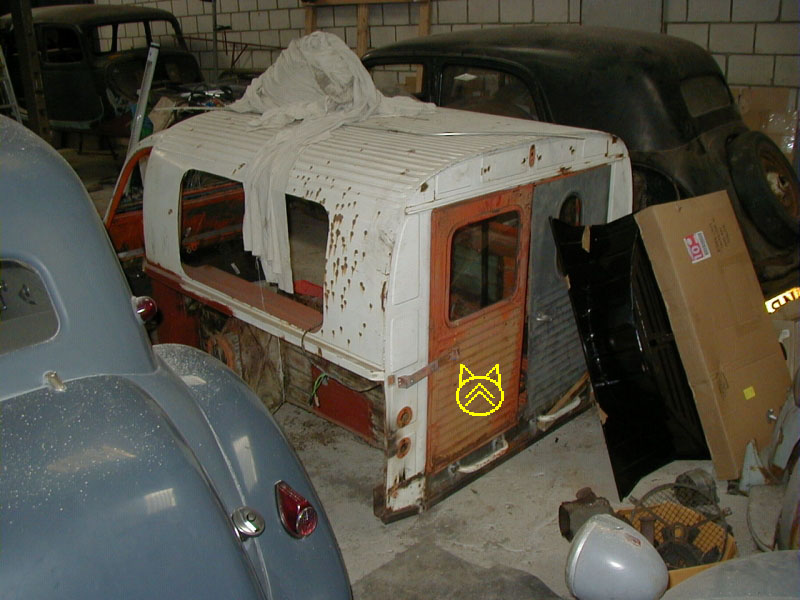

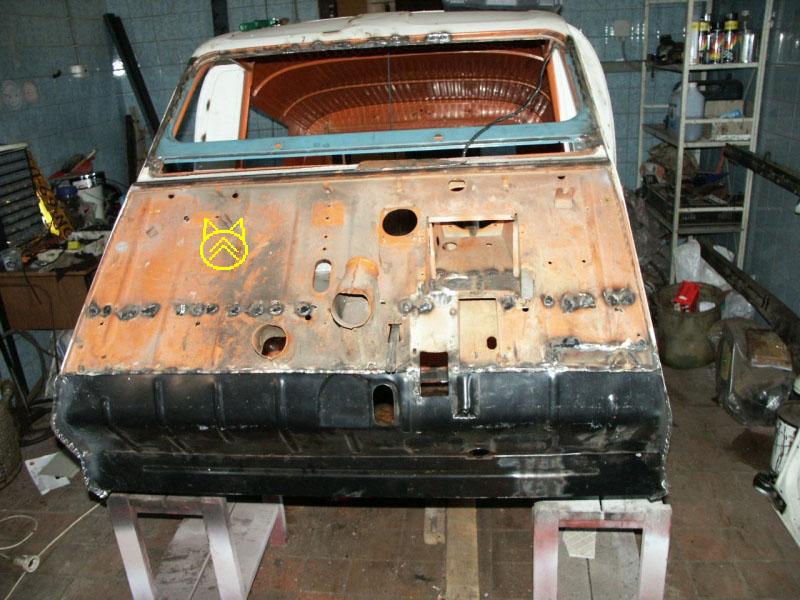

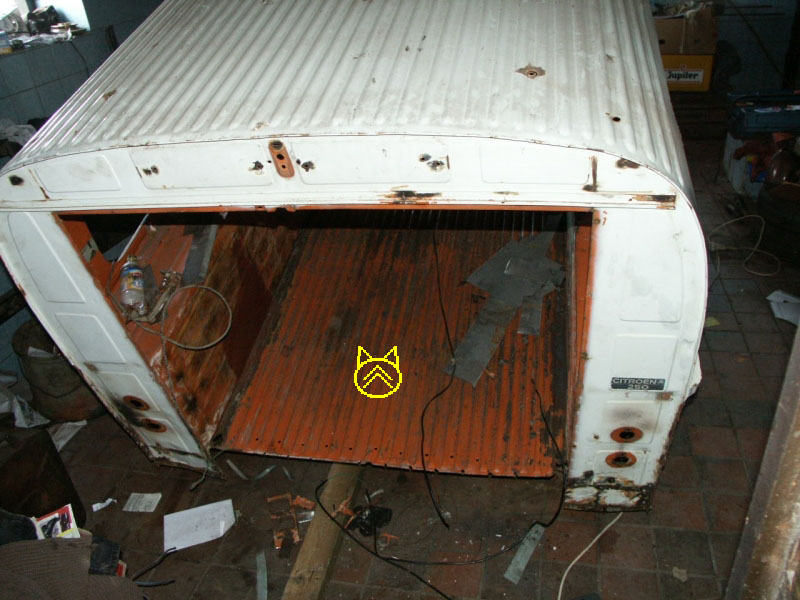

Body with most structural welding done, lower rear end is massive...

Plans for this car have changed. My mum now has trouble driving cars without power steering, so i've decided to keep this car for myself and make something very special out of it.

The mechanicals for this car will come from another car. More info can be found here
